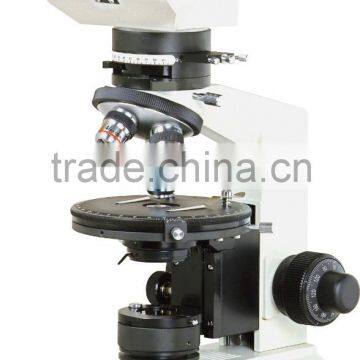

Polarizing Microscope NP-107 Series

Name: Polarizing Microscope NP-107 Series
Brand: Novel
SKU: 103837325
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Novel

Model Number:

NP-107 series

Nanjing Jiangnan Novel Optics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Novel

Model Number NP-107 series

Theory Other

Drawtube Binocular

Product Description

		NP-107M	NP-107B	NP-107T
Viewing Head	Monocular head inclined at 45°	S
	Sliding binocular head inclined at 45°		S
	Sliding trinocular head inclined at 45°			S
Eyepiece	Eyepiece WF10X/18 with scale of crosshair	S	S	S
Eyepiece	WF10X/18		S	S
Objective	Strain free achromatic objective 4X,10X,40X	S	S	S
Nosepiece	Toward quadruple nosepiece	S	S	S
Analyzer	Rotatable analyzer with graduation 0°-90°	S	S	S
Bertrand Lens	Bertrand lens, Sliding in/ out of optical path	S	S	S
Optical Compensator	λ Slip (First class red)	S	S	S
	1/4λSlip	S	S	S
	Quartz wedge	S	S	S
Revolving Round Stag e	Diameterφ135mm, 360°Rotatable and graduate in 1°Increments, Minimum resolution 6′when using venire scale, Center adjustable	S	S	S
Condenser	Abbe Condenser NA1.25 with lris diaphragm & filter	S	S	S
Focusing	Coaxial coarse & fine adjustment , range 28mm, fine division 0.002	S	S	S
Polarizer	Sliding in/out of optical path,Located on the top of collector	S	S	S
Illumination	6V/20W Halogen lamp, Brightness adjustable	S	S	S
