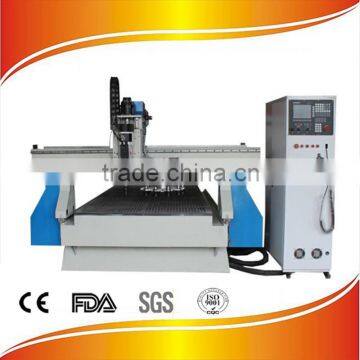

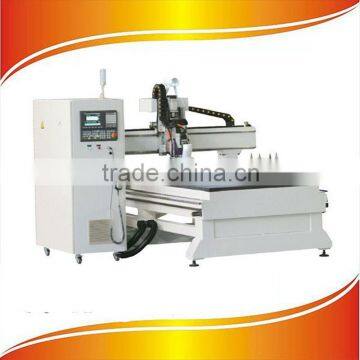

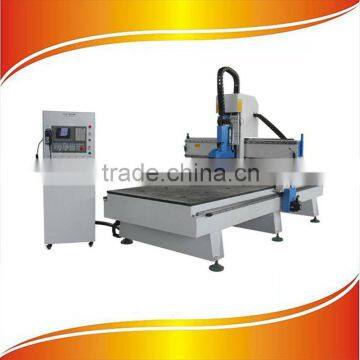

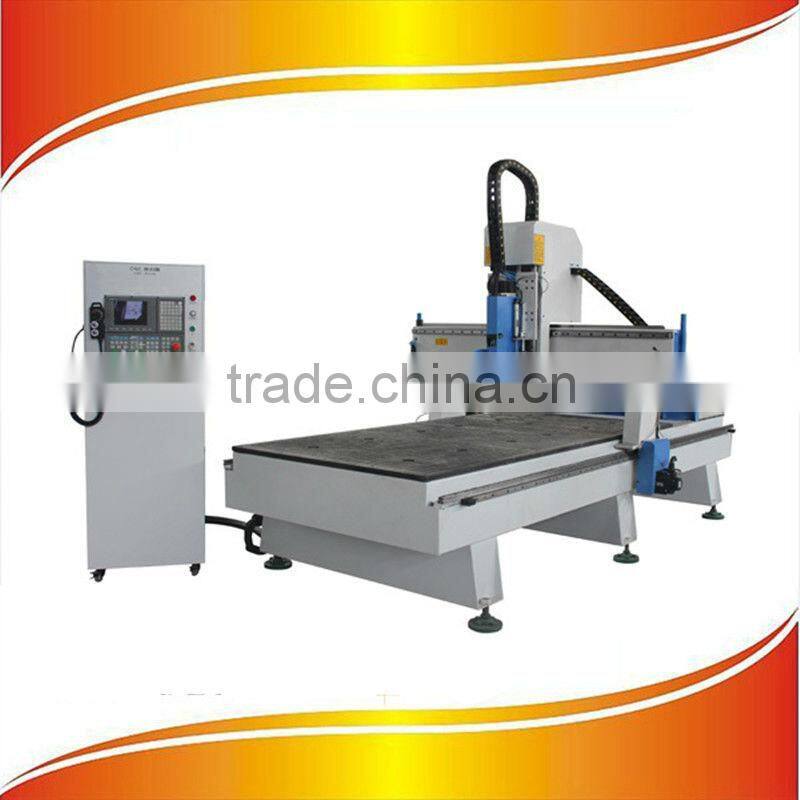

Linear type ATC CNC Router With 6 Tools Remax-1325
Technical Specifications:
| Working Area |
1300x2500x300mm Options: 1500X3000X300mm 2000X3000X300mm |
| X, Y, Z Repositioning Positioning Accuracy | 0.03mm |
| X, Y, Z Traveling Positioning Accuracy | 0.03/300mm |
| Table Surface | Vacuum table |
| Machine frame | Welded Steel pipe at least 5mm thickness |
| X, Y Structure | Rack and speed reducer, PMI, Hiwin or THK linear guide |
| Z Structure | TBI Ball Screw and linear guide |
| Max. Power Consumption (without spindle) | 3.0kw |
| Max. Rapid Travel Rate | 60000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | 9.0Kw HSD air cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | YASKAWA Servo Motors and Drivers |
| Working Voltage | AC380V/50/60Hz, 3PH |
| Command code | G Code, HPGL |
| Operating System | SYNTEC or LNC-M510i System |
| Flash Memory | 2G (U Disk) |
| Collet | ER32 |
| X, Y Resolution | 0.02mm |
| Software Compatibility | Type3 or Wentai, ARTCAM/CAXA |
| Electrical components | Schneider |
| Vacuum pump | 5.5kw or 7.5kw |

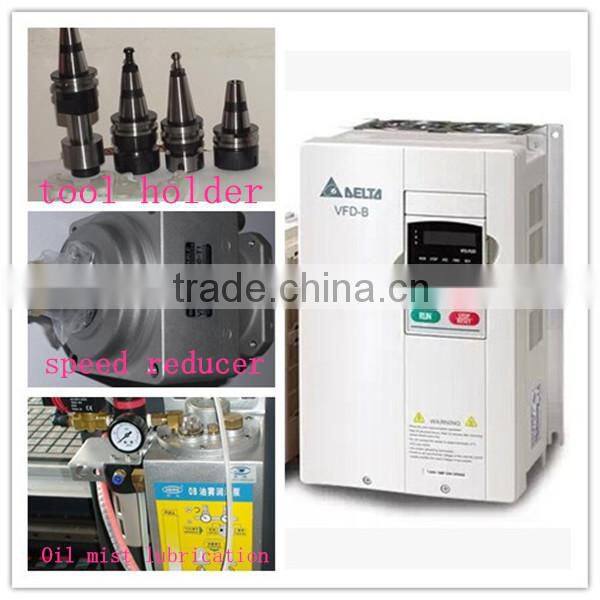

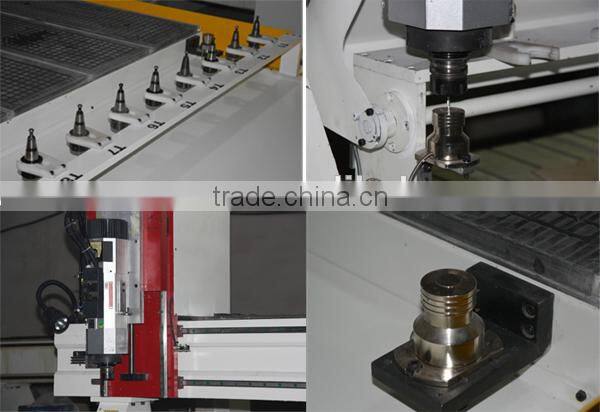

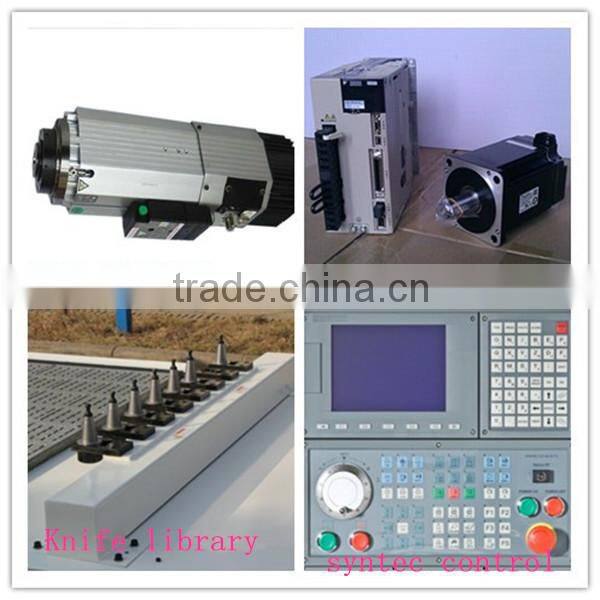

Main parts
Features:
1. The ATC woodworking machine has an Italian HSD ATC Spindle.
2. The working table is 1300*2500mm.
3. It offers a maximum working height of 500mm
4. The ATC woodworking machine has a traveling speed of 60m/min and working
speed of 30m/min.
5. It has a linear type ATC tool magazine capacity of 6 tools.
6. It offers a maximum spindle speed of 24000rpm/min.
7. The ATC woodworking machine is suited for complex machining. It is designed
for machining various parts in small quantities.
8. It provides processing for a full sheet of panel without additional sawing
operation. It is also suitable for sample machining.
9. It comes with a vacuum system and German Becker vacuum pump.
10. The ATC woodworking machine has a Ysakawa servo system and Syntec control system.
Applications:
1325 ATC woodworking machine features high automation and is ideal for
continuous processing of a large batch of nonferrous materials.
In furniture industry, the woodworking center is used for engraving of wood
panels, solid woods, wood doors, cabinets, and more.
In musical instrument industry, it is used for engraving on 3D curved surfaces
and creation of external structure.
In other woodworking industry, the woodworking machine is commonly used for
making the countertop of sewing machines, electrical appliance cabinets, and
wooden sports goods.
Applications:
Our Services:
A Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance,
if something is wrong with machine, you will get spare part for free.;
Out of 12 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
C After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory. Youwill also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.
FAQ:
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
6. Send your order by air or by sea.
E 10 good reasons why you should buy from us?
1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEERS
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO, BV certificate.
7 machine and spindle warranty 1 year.
8 our engineer can go to your country to provide technical guidance
9 we have phone support in English, if you have any questions, you can call it, we can give you a best solution within 24 hours
10 fast delivery, save your time.
CE certificate:

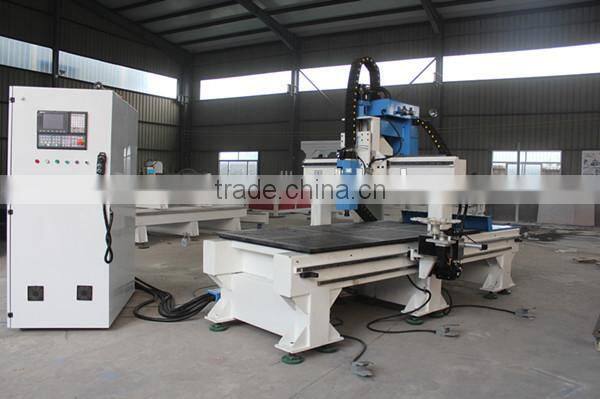

Product show:
Packing:
Thank you for your visiting the product of Remax!
If you have any questions, please contact me.
