Specifications
cnc router cutting advertising steel letters1.rigid machine
2. reliable and strong router head
3.8mm gantry
oling

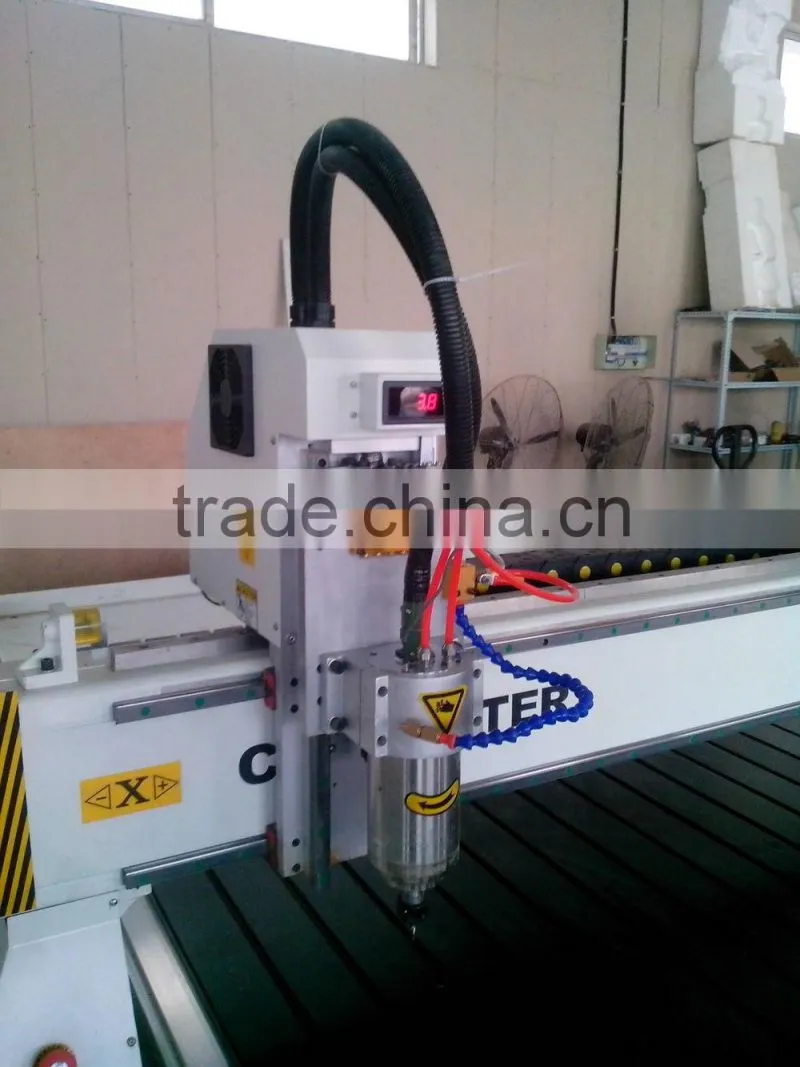

Remax-1325 cnc router cutting advertising stainless steel letters very rigid machine , the router head reliable and strong
Parameter:
| NO. | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x300mm |
2 |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 4 | Table Surface | T-slot Table |
| 5 | Frame | Welded Structure |
| 6 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Guide |
| 7 | Z Structure | Hiwin Rail Linear Guide and TBI Ball Screw |
| 8 | Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
| 9 | Max. Rapid Travel Rate | 20000mm/min |
| 10 | Max. Working Speed | 12000mm/min |
| 11 | Spindle Power | 3KW water cooling spindle |
| 12 | Spindle Speed | 0-24000RPM |
| 13 | Drive Motors | Stepper Motor |
| 14 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 15 | Command Language | G Code |
| 16 | Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
| 17 | Computer Interface | USB |
| 18 | Flash Memory | 128M(U Disk) |
| 19 | Collet | ER20 |
| 20 | X,Y Resolution | <0.01mm |
| 21 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| 22 | Running Environment Temperature | 0 - 45 Centigrade |
| 23 | Relative Humidity | 30% - 75% |
| 24 | Inverter | Delta/Fuling |
| 25 | Electrical components | Schneider |
| 26 | Limit switch | OMRON |
| 27 | Driver | Leadshine or Yako |

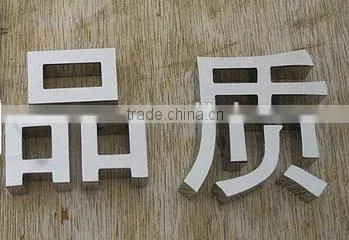

this machine can be use for stone process , also can be uesd for cutting advertising stainless steel letters.
main parts

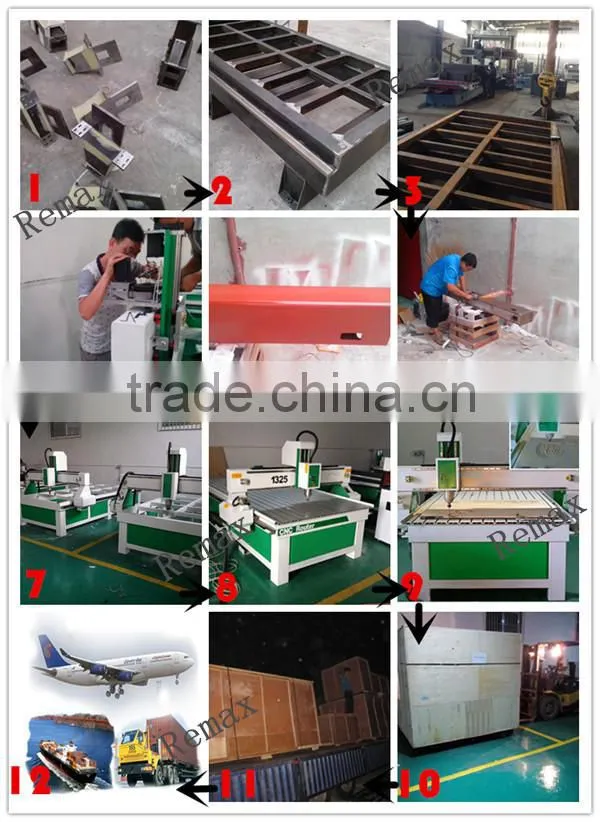

our production line
FAQ:
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by
e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D 10 good reasons why you should buy from us?
1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEERS
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO, BV certificate.
7 machine and spindle warranty 1 year.
8 our engineer can go to your country to provide technical guidance
9 we have phone support in English, if you have any questions, you can call it, we can give you a best solution within 24 hours
10 fast delivery, save your time.

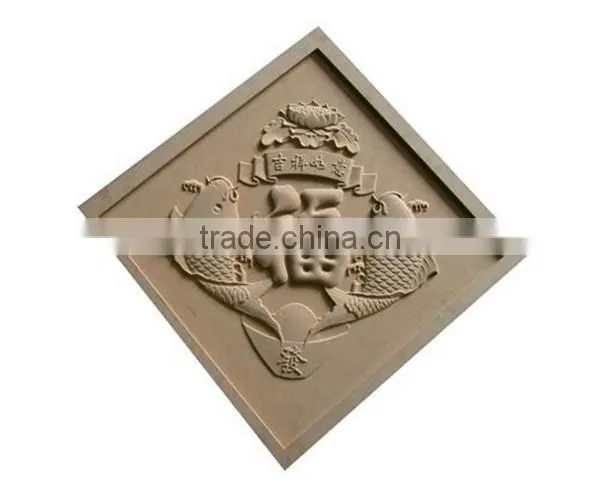

sample
