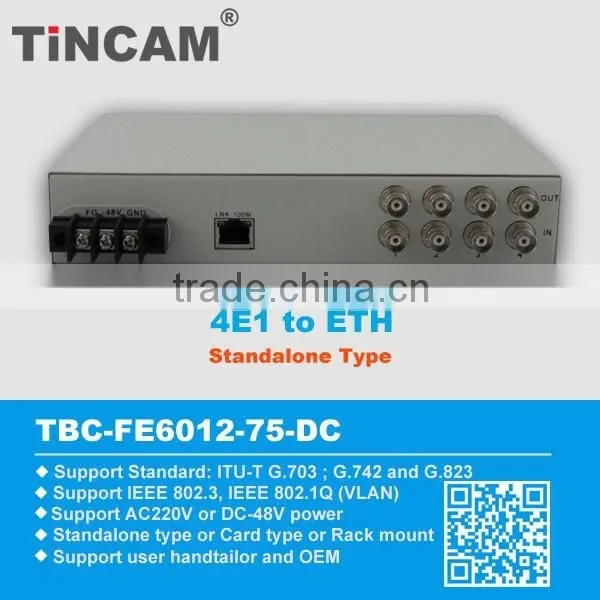

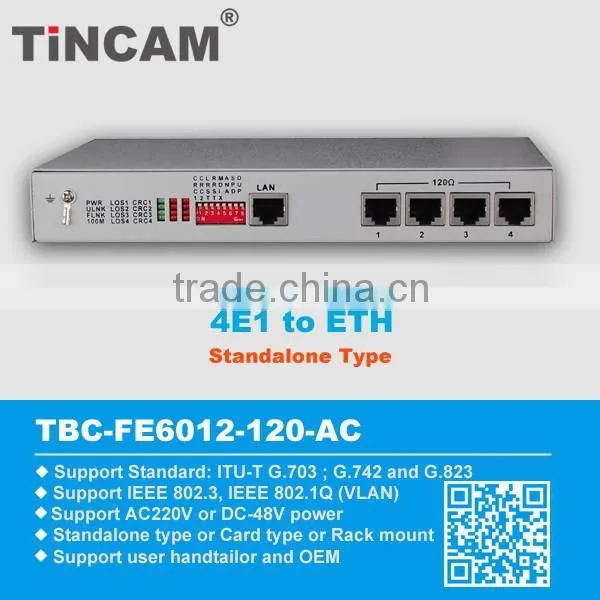

4E1 to Ethernet 10/100M protocol converter
1.Name:Protocol converter
2.4E1 to 1 Ethernet
3.E1 Impedance 75ohm and 120ohm
4.Speed: 2.048Mbps per E1 port
5.ITU-T G.703
Interface Parameters
E1 Interface:
-> Realize Ethernet data transmission over 1~4E1
-> Support auto delete the fault E1 channels (BER more than 1E-6 or a serious
warning LOS/AIS/LOF or the signal loop back); Auto-restore the use of E1 after
eliminate the failure.
-> For 4 E1 channels, the maximum tolerable time delay difference between any
two can be up to 220ms. It will have an alarm for exceed the limit when the time
delay difference over 220ms, meanwhile, business interrupt jitter tolerance, jitter
transfer characteristics in the line with ITU-T G.823.
-> E1 Impedance 75ohm and 120ohm
-> ITU-T G.703
-> Speed: 2.048Mbps per E1 port
-> Line code: HDB3
Ethernet Interface:
-> IEEE802.3 Ethernet standard compatible
-> 10M/100M through auto-negotiation
-> Full/Half duplex through auto-negotiation.
-> Connector: RJ-45
General characteristics
-> Raging from -36V to -72V for DC-48V
-> Ranging from ~100V to ~265V for AC 220V
-> Power consumption: <5W
-> Temperature: -10°C to 50°C
-> Humidity: £95%(35°C)

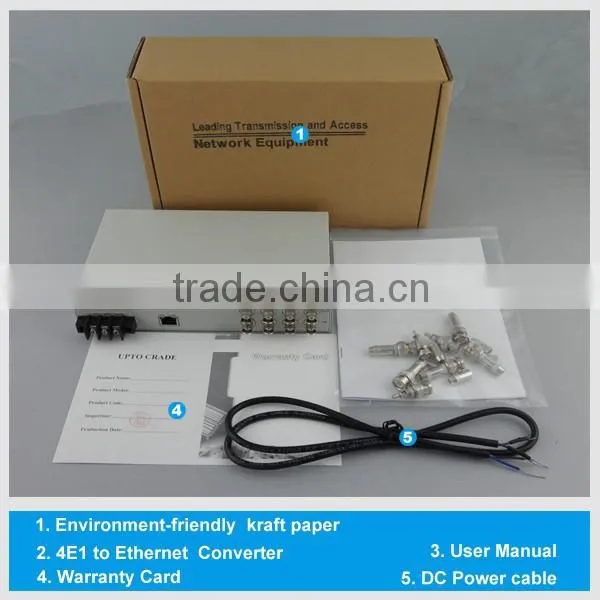

Packing List
1. 4E1/Ethernet Converter
2. one power cord for AC110V/220V (no power cord for -48V)
3. 8 BNCs Coaxial Connector
4. User Manual
