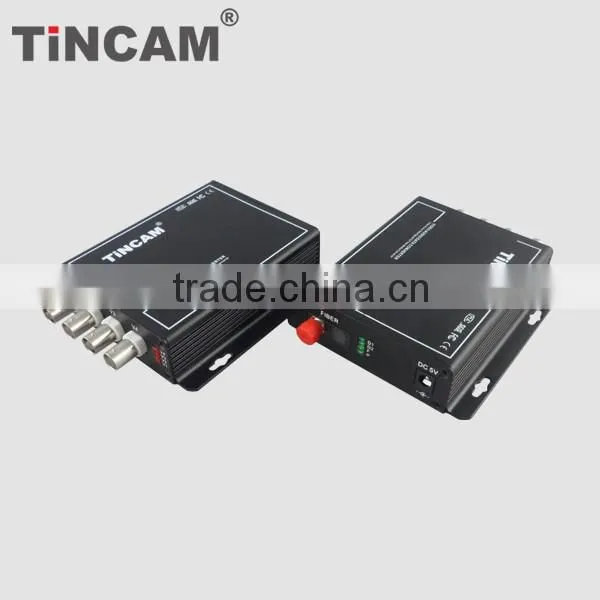

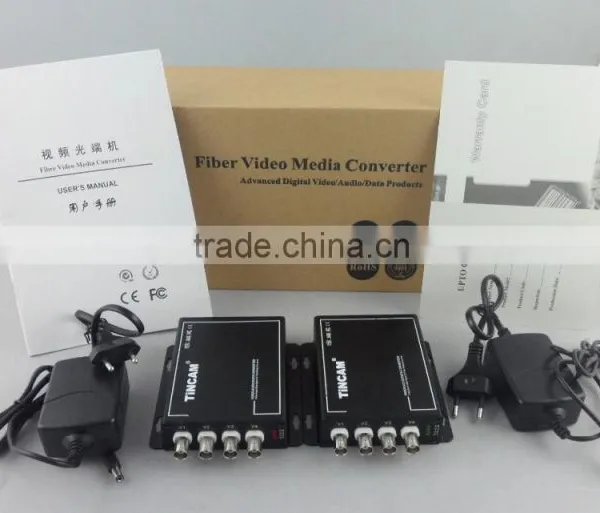

4 channel video converter digital to analog, Fiber Video Converter
Product Characteristic
• 8 bit video signal digital sampling
• High-speed synchronous digital transmission technology
• Modular structure design(audio card and data card for optional configuration)
• Super optical dynamic range, no adjustment needed
• Status indication for power supply, optical signal and video
• No electromagnetic interference, radio frequency interference and ground current
• Safe transmission guaranteed under poor electromagnetic environment
• BNC video connector
• FC optical connector
• Video DC recovery
• Maximum tolerable link loss for single mode single fiber is 17db
Technical indicators
Video characteristic
• Video channel: 4 channel
• Video input/output impedance: BNC75Ω
• Unbalanced interface
• Video input/output voltage: Typical peak-peak value 1Vp-p
• Video bandwidth: 6.5MHz
• Video digital bit width: 8 bit
• Differential gain: <1.3% (typical value)
• Differential phase: <1.3°(typical value)
• SNR>63dB
Data interface
• Number of data channels: 1 channel
• Physical interface: The industry standard connecting terminal
• RS232 rate: DC-115.2Kbps
• RS422/485 rate: DC-115.2Kbps
• RS485 distance: 0-1200m
• Physical protocol: Transparent support of RS232/485/422/Manchester/Biphase protocol
Optical interface
• Physical interface: FC/PC
• Fiber type: single-mode fiber, single fiber
• Transmission distance: single mode 20Km
Power supply
Input voltage: AC220/DC+5V
Electromagnetic compatibility
• Radiation: EN50081-1, EN55022-B, CE, FCC
• Magnetic capacity: EN50130-4, EN50028-1
Physical characteristic
• Operating temperature: -25°C ~ +75°C
• Humidity: 0~95%( no condensation)
• Induction: EN50130-5,1995
• Tidal fever: BS2011
