LC SC FC ST Optical Fiber Connectors

Name: LC SC FC ST Optical Fiber Connectors
Brand: TINCAM, TINCAM
SKU: 103824801
Availability: InStock

US$ 20 - 40 MOQ: 50 Pieces

Key Specifications

Place of Origin:

China

Brand Name:

TINCAM, TINCAM

Shenzhen Tianbo Communication Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ports inShenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name TINCAM, TINCAM

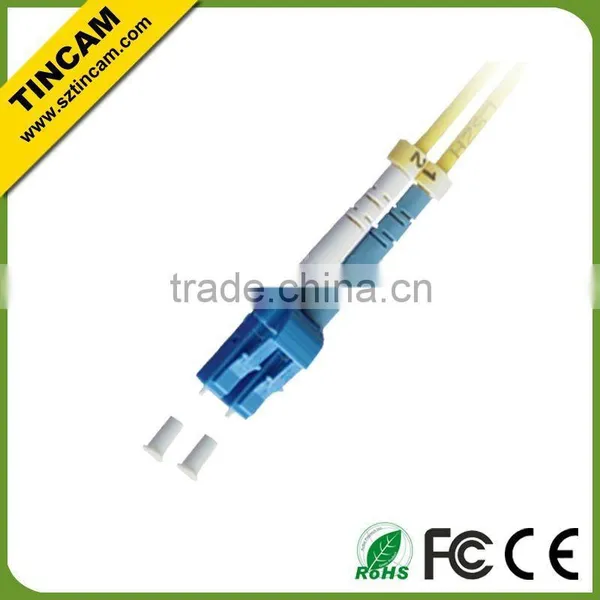

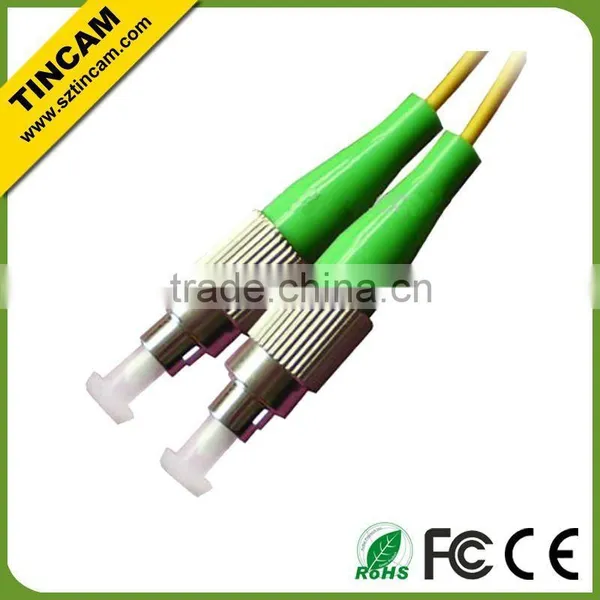

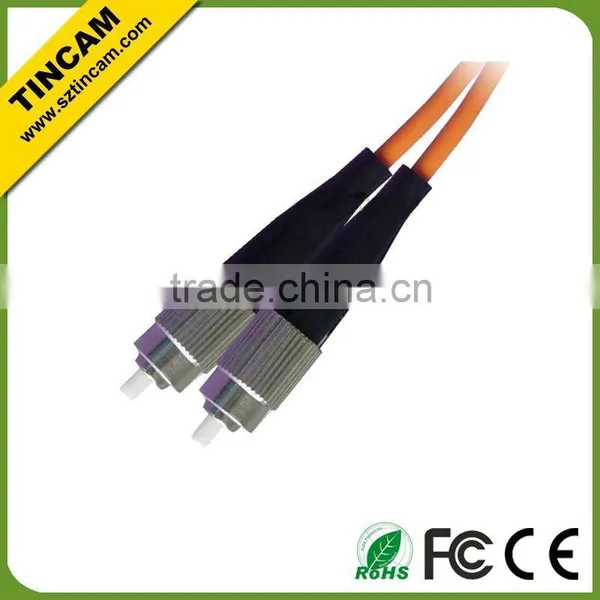

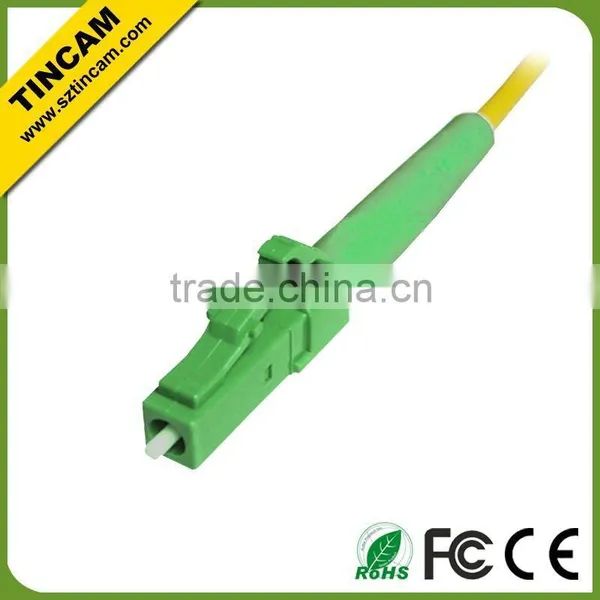

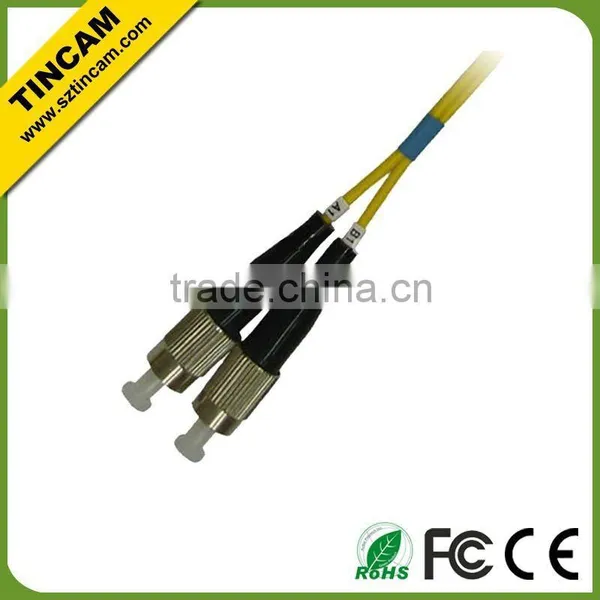

LC SC FC ST optical fiber connectors

Features

The Fiber Optic Connectors (Commonly we call Patch Cords) is a length of optical cable with

connectors fixed on two ends to realize the optical path active connection. Pigtail is a length fiber

cable with only one connector fixed on one end. If both sides of the connector or its end-face are

different, we call it hybrid patch cord. According to the transmission medium, it divides Single Mode

and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,

LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.

Fiber Optic patch cord Features

1.Price-Competitive

2.Low Insertion Loss & PDL

3. Customized lengths(1m/2m/3m)

4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber

5.Polishing Options: PC/UPC/APC

6.Feature Connector with Ceramic Ferrules

Applications

1.Access Network

2.Telecom/CATV Systems

3.FTTx

Detailed description of patch cord

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
