Large Height Multi Head 3D Wood CNC Wood Carving Router Machine

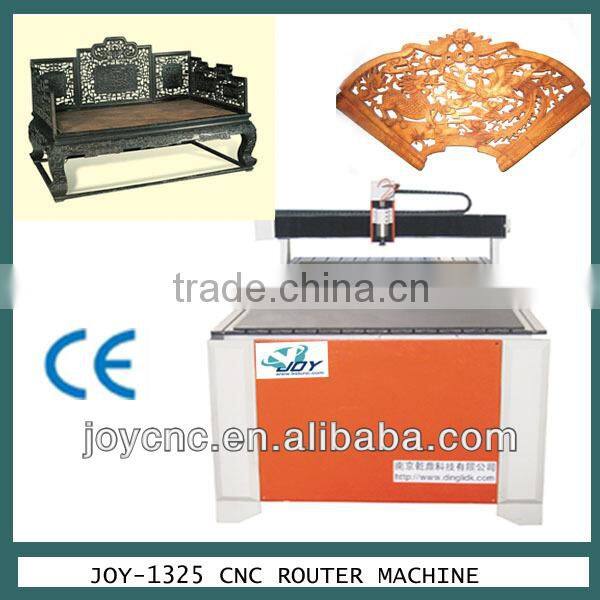

JOY CNC Wood Router Machine
Machine mainly configuration:
- SPINDLE : ITALY HSD SPINDLE 4.5KW WITH AIR COOLING
- X , Y WORKING SIZE(WORK AREA) : 1300MMX2500MM
- Z WORKING SIZE (WORK AREA) : 250MM
- X,Y STRUCTURE: TAIWAN GEAR AND RACK
- Z STRUCTURE : GERMANY ROLLING BALL SCREW THICKNESS 30MM
- REPETITION ACCURACY : 0.001 MM
- MACHINE STRUCTURE : SEAMLESS WELDED STEEL STRUCTURE
- TABLE: ALUMINUM
- MAX SPEED : 30M/MIN VARIABLE SPEED
- CONVERT : TAWAN DELTA
- R.M.P. 0-24000R/MIN.VARIABLE SPEED
- GUIDE RAIL : TAIWAN HIWIN 30MM SQAURE GUIDE RAIL
- POWER: AC 220V / 60HZ / 3phase
- SOFTWARE : TYPE 3 WITH CRACK
- COMPATIBLE WITH: ARTCAM / TYPE 3
- DUST COLLECTOR: HOSE ONLY WITH THE BASE OF THE SPINDILE
- CONTROL SYSTEM : NCstudio CONTROLING SYSTEM
- COMMAND : G CODE,HPG,U00,MMG,PLT,NC,CNC
- INTERFACE : USB - LAN - WIFI
- WEIGHT : 2000 KG
- LUBRICATION : AUTOMATIC LUBRICATION OIL
- MOVE : GANTRY MOVEMENT
- LANGUAGE : ALL SETTINGS AND PROGRAMS ARE IN ENGLISH USA ,
- SURROUNDINGS FOR SOFTWARE : WINDOWS XP
Applicable materials
wood, bamboo,double color board, Acrylic, plastic, Aluminum and copper and etc.
Applicable industries:Panel furniture, Mahogany furniture, solid wood door Wood working, arts and crafts, mould, building upholster, decoration
Detailed Product Description:
1. The lathe bed is wholly cast with iron, it can assure high stability and not easy to deformation, it can process the material on the table randomly.
2. Adopt the imported guide rail, ball bearing piece, can bear high weight, run stability, high precision, long life.
3. Intelligent protection for working table can avoid the damaging the table own to wrong operation or software fault. Its protection of step beyond the boundary avoids the crash while design area beyond processing area.
4. Advanced DSP controller can control automatically the muti-layer 3D processing with high speed. It also can be opera offline.
5. The compatibility of the software is good, it can compatible type3/Artcam/Castmate/Artcut and CAD/CAM design software.
Technical Parameters:
Model |
JOY1325 |
X Y working area |
1300*2500mm |
Z working area |
200mm |
Table size |
1500*3000mm |
Max speed |
80m/min |
Type of clamp |
Clamp / Vacuum table |
Processor |
DSP/100MHz |
Document transmission |
USB |
Cutting operation |
G code*.u00*.mmg*.plt |
Software |
NCstudio |
Power(spindle not included) |
3000W |
Working voltage |
AC 380V/220V |
Spindle power |
4.5KW |
Spindle speed |
0-24000rpm/min |
Operation way |
Step / servo |
Accessories:
1. The CNC Router Machine
2. Controller Cabinet of the machine
3. The Motion Controlling Card of the computer main board
4. One power wire of the machine
5. Document transmission is USB
6. A copy of specifications and one copy of the Certificate of Quality, and Quality Assurance
7. Two spanner
8. One tool clamp
9. A box of Carving Tool Set including 19 carving knives

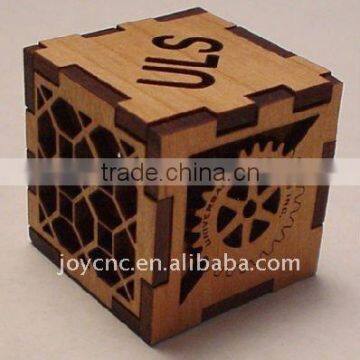

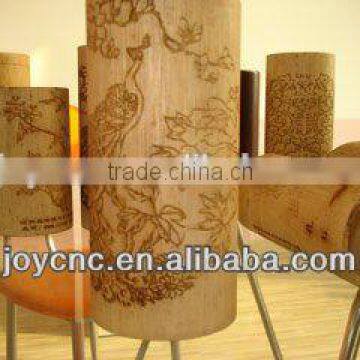

SAMPLES
Welcome to contact with us !
We will do our best to assit you !
