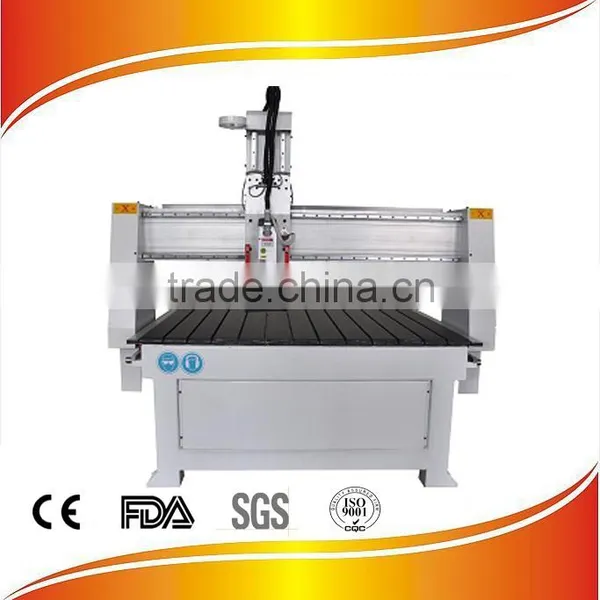

Help CenterHigh Quality 1325 Wood Cutting Engraving Machine
Related Products
-
Fast Speed and High Accuracy1325 CNC Router Machine/cnc Router Machine Quality ChoiceUS$ 4,200 - 5,800MOQ: 1 Set -
Remax-1325 Cnc Wood Engraving Machine High ConfigurationUS$ 4,500 - 6,000MOQ: 1 Set
-
Remax-1325 Cnc Router Machine 3kw Spindle High Quality Can be Customer MadeUS$ 4,500 - 6,000MOQ: 1 Set
-
Remax-1325 Cnc Router Woodworking MachineUS$ 4,500 - 6,000MOQ: 1 Set
-
Remax-1325 Cnc Router Machine 3kw Spindle High Quality Can be Customer MadeUS$ 4,500 - 6,000MOQ: 1 Set
Specifications

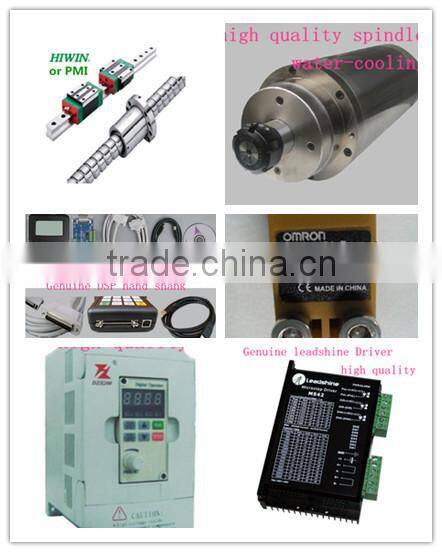

3.0 KW water-cooled spindle motors made, DSP - A11 handle controlhigh quality 1325 wood cutting engraving machine
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1300x2500x200mm |
2 |
X,Y,Z Traveling Positioning Accuracy |
0.0254mm |
3 |
X,Y,Z Repositioning Accuracy |
±0.03/300 mm |
4 |
Table Surface |
Vacuum or T-slot Table |
5 |
Frame |
Welded Structure |
6 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Guide |
7 |
Z Structure |
Hiwin Rail Linear Guide and TBI Ball Screw |
8 |
Max. Power Consumption |
(Without Spindle) 2.5kw~3Kw |
9 |
Max. Rapid Travel Rate |
25000mm/min |
10 |
Max. Working Speed |
18000mm/min |
11 |
Spindle Power |
3KW water cooling spindle |
12 |
Spindle Speed |
0-24000RPM |
13 |
Drive Motors |
Stepper Motor |
14 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
15 |
Command Language |
G Code |
16 |
Operating System |
DSP System (Options: Ncstudio/Mach3 PC Software) |
17 |
Computer Interface |
USB |
18 |
Flash Memory |
128M(U Disk) |
19 |
Collet |
ER25 |
20 |
X,Y Resolution |
<0.01mm |
21 |
Software Compatibility |
Type3/UcancameV9 Software, (Option: Artcam Software) |
22 |
Running Environment Temperature |
0 - 45 Centigrade |
23 |
Relative Humidity |
30% - 75% |
24 |
Inverter |
Delta/Fuling |
25 |

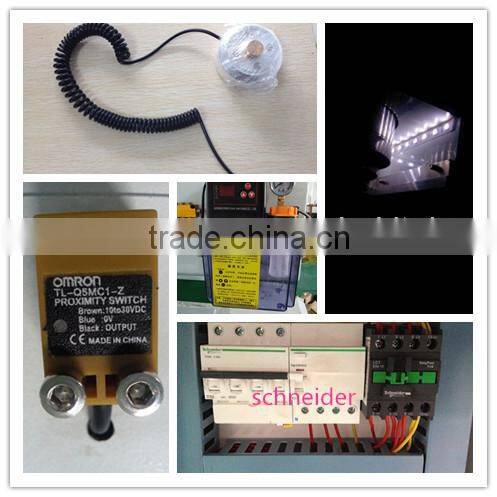

Electrical components |
Schneider |
26 |
Limit switch |
OMRON |
27 |
Driver |
Leadshine or Yako |
high quality configuration
Features:
1)Welded steel pipe lathe bed, strong and never out of shape
2)Double motors and drivers of Y axis which can ensure steady movement
3)Rack gear transmission ensures fast speed and high accuracy
4)Imported square rail ensures high accuracy and heavy workload
5)Adopt vacuum system. Made by advanced international technology, with double cavities, configured with vacuum pump of strong adsorption, can absorb different size materials
6)Vacuum table with 6 vacuum zones, which can absorb different size materials. With 5.5kw vacuum pump, high suction, more convenient, stable capability.
7)Imported square rail ensures high accuracy and heavy workload
8)Humanistic design,the machine can be disassembled,so it is easily transported.
Our Services:
A Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance,
if something is wrong with machine, you will get spare part for free.;
Out of 12 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
B Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
C After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.
FAQ:
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
6. Send your order by air or by sea.
