Specifications
Auto tool changer cnc furniture1.Work area:1300*2500mm
2.9Kw HSD air-cooling spindle
3.YASKAWA servo motor
4.SYNTEC control
Auto tool changer cnc furniture
Application:
Auto tool changer cnc furniture for woodworking, and other materials, such as wood door,
art craft, cabinet, windows, acrylic and other materials. It can engrave many different
patterns, and it can tool change automaticlly.
Main configuration:
1. Machine structure
#Frame: 8mm welded heavy duty body
#Working area: X: 1300mm*Y: 2500mm*Z: 250mm
2. Spindle: 9.0Kw Italian HSD air-cooling spindle

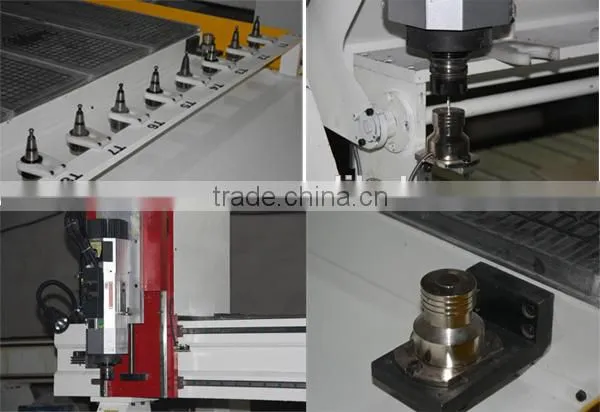

#Linear Type Automatic Tool Changer
#Tool Magazine Capacity-8
3. Control system:Taiwan Syntec 6MB control system
4. Guide and rail:
#Dust protected Taiwan Hiwin 30 square linear guiding system
Transmission:
#X, Y by XINYUE helical toothed rack drive
#Z by Taiwan TBI Ball screw transmission
5. Table: Vacuum table, Chinese YONGDUN 5.5KW pump
6. Drive system: Japanese 850W Yaskawa Servo Motor and Drivers
7. Inverter: Taiwan Delta 11KW VFD-B inverter
8. Exhaust system
9. Electronic Parts: Schneider Electronic Spare Parts
Parameters of Auto tool changer cnc furniture :
| Working Area |
1300x2500x250mm Options: 1500X3000X250mm 2000X3000X250mm |
| X, Y, Z Repositioning Positioning Accuracy | 0.03mm |
| X, Y, Z Traveling Positioning Accuracy | 03/300mm |
| Table Surface | Vacuum table |
| Machine frame | Welded Steel pipe at least 8mm thickness |
| X, Y Structure | Rack and speed reducer, PMI, Hiwin or THK linear guide |
| Z Structure | TBI Ball Screw and linear guide |
| Max. Power Consumption (without spindle) | 9.0kw |
| Max. Rapid Travel Rate | 60000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | 9.0Kw HSD air cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Japan 850w YASKAWA Servo Motors and Drivers |
| Working Voltage | AC380V/50/60Hz, 3PH |
| Command code | G Code, HPGL |
| Operating System | SYNTEC |
| Flash Memory | 2G (U Disk) |
| Collet | ER32 |
| X, Y Resolution | 0.02mm |
| Software Compatibility | Type3 or Wentai, ARTCAM/CAXA |
| Electrical components | Schneider |
| Vacuum pump | 5.5kw |

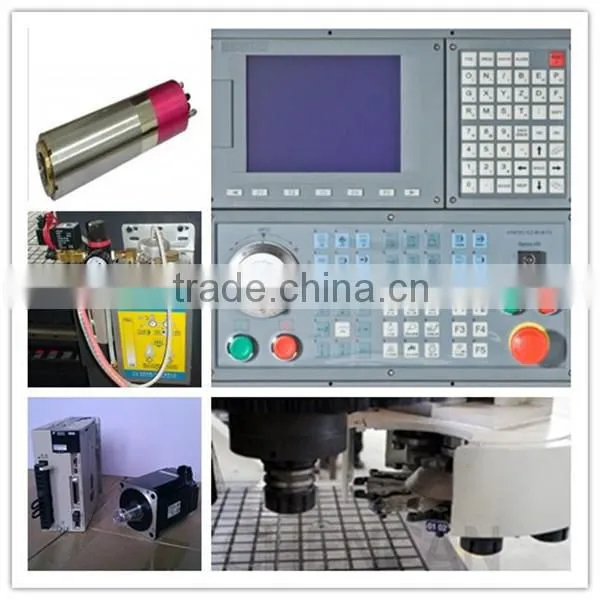

Spare parts:
Samples:
Packaging picture:
Factory production process:
Certificate:
Our service:
A Guarantee of Auto tool changer cnc furniture :
12 months for the whole machine.
Within 12 months under normal use and maintenance,
if something is wrong with machine, you will get spare part for free.;
Out of 12 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
C After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory.
Youwill also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.
Your satisfy is our pursue.
