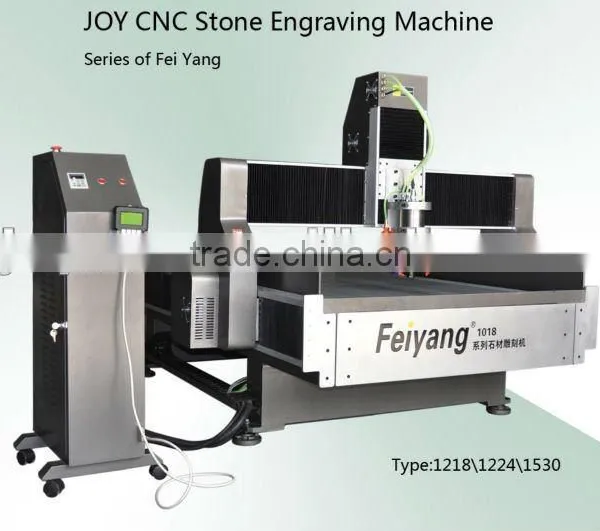

Help CenterJOY CNC Automatic Stone Engraver Stone Router Machine 1224
Related Products
-
JOY CNC Professional Stone Engraving Machine Stone RouterUS$ 1 - 7,800MOQ: 1 Set -
JOY CNC High Speed Auto Stone Engraving Machine for Heavy IndustryUS$ 1 - 8,280MOQ: 1 Set
-
JOY CNC Heavy Stone Engraving Machine Marble Glass Ceramics EngraverUS$ 1 - 8,280MOQ: 1 Set
-
JOY CNC Stone Engraving MachineUS$ 1 - 4,980MOQ: 1 Set
-
JOY CNC Stone Router 25m/minUS$ 1 - 4,980MOQ: 1 Set
Specifications
bear high weight, run stability, high precision, long life.JOY CNC Automatic Stone Engraver
Features:
1.Develped forporfessional stone industry , could engrave on natural stone, glass, ceramic and high technical auto computer controlling engraving equipment.
2.Adopt the Taiwan square linear guide rail, can bear high weight, run stability, high precision, long life.
3.Adopt the famous brand 3000W/4500W water cool frequency control dynamo and high quality frequency changer. Once can easily cut 10mm copper or alunium plate.
4.Y axis adopted dual-motor drive, the fastest speed is 25m/min and high stability.
5.Software with good compatibiliy, compatable with Type3/Artcarm/CAXA/UG/Pro-E/Mastercam/Wentai, etc., support G-code/HPGL/eng/mmg/u00/plt/dxf, etc.
6.With a wide range of application: marble, bluestone, agate, glass, plastic cement, ceramic, stainless stieel, titanium alloy, copper, iron, aluminum, bamboo, etc,.
7.Many different carving styles can be choosed according to different materials, for example, intaglio, relief, line-drawing, flat base, round base, V-base, etc,.
8.Different style of classical decorating pictures and different kind of letter can be choosed in computer’s craft gallery.
Technical parameter:
Modle |
JOY-1224 |
Feed size |
1300*2600*300mm |
Working area |
1200*2400*230mm |
Max travel speed |
40m/min |
Motor of spindle |
3.7kw,220v/380v |
voltage |
220v50~60hz 380v50~60hz |
Total power |
5.0kw |
Driver motor |
low speed high torque motor |
Driver |
Special high precision power drive |
Geering |
Germany original small module, the high accuracy super-modulus gear |
Slider divice |
Low noise linear guide |
Weight |
1600kg |
Samples:
