Remax Automatic tool change high quality factory directly

Standard wood packing or according customer requirement

Specifications

Automatic tool change
1.SYNTEC control system
2.YASKAWA servo motor and driver
3.Italy HSD spindle
Rack and gear



welcome to visit our product , we are manufacture of cnc router machine and so on ,will give the best service to you , and arroding your require product the machine,don't hesitate to contact me ,will bring surprise to you !

  Remax automatic tool change  high quality  factory directly

Parameter:

NO.	Description	Parameter
1	X,Y,Z Working Area	1500x3000x200mm
2	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
3	X,Y,Z Repositioning Accuracy	±0.03mm
4	Table Surface	Vacuum or T-slot Table
5	Frame	Welded Steel pipe at least 5mm thickness
6	X, Y Structure	Rack and speed reducer, PMI, Hiwin or THK linear guide
7	Z Structure	Hiwin Rail Linear Guide and TBI Ball Screw
8	Max. Power Consumption	(Without Spindle)  2.5kw~3Kw
9	Max. Rapid Travel Rate	60000mm/min
10	Max. Working Speed	30000mm/min
11	Spindle Power	9.0Kw HSD air cooling spindle
12	Spindle Speed	0-24000RPM
13	Drive Motors	Stepper Motor
14	Working Voltage	AC380V/50/60Hz,3PH
15	Command Language	G Code HPGL
16	Operating System	SYNTEC or  LNC-M510i System
17	Computer Interface	USB
18	Flash Memory	2G (U Disk)
19	Collet	ER32
20	X,Y Resolution	0.02mm
21	Software Compatibility	Type3 or Wentai, ARTCAM/CAXA
22	Running Environment  Temperature	0 - 45 Centigrade
23	Relative Humidity	30% - 75%
24	Inverter	Delta
25	Electrical components	Schneider
26	Limit switch	OMRON
	Vacuum pump	5.5kw or 7.5kw



Main  parts:



Features:

1. The ATC woodworking machine has an Italian HSD ATC Spindle.

2. The working table is 1300*2500mm.

3. It offers a maximum working height of 500mm

4. The ATC woodworking machine has a traveling speed of 60m/min and working

    speed of 30m/min.

5. It has a linear type ATC tool magazine capacity of  6 tools.

6. It offers a maximum spindle speed of 24000rpm/min.

7. The ATC woodworking machine is suited for complex machining. It is designed

    for machining various parts in small quantities.

8. It provides processing for a full sheet of panel without additional sawing

    operation. It is also suitable for sample machining.

9. It comes with a vacuum system and German Becker vacuum pump.

10. The ATC woodworking machine has a Ysakawa servo system and Syntec control system.



Applications:



1325 ATC woodworking machine features high automation and is ideal for

continuous processing of a large batch of nonferrous materials.

In furniture industry, the woodworking center is used for engraving of wood

panels, solid woods, wood doors, cabinets, and more.

In musical instrument industry, it is used for engraving on 3D curved surfaces

and creation of external structure.

In other woodworking industry, the woodworking machine is commonly used for

making the countertop of sewing machines, electrical appliance cabinets, and

wooden sports goods.



FAQ:



A This is the first time I use this kind of machine, is it easy to operate?



There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.



B If machine have any problem after I receive it, how can I do ?



Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.



C MOQ ?

The minimum order is 1 set machine, if you order more one time, the price will be better.



D How can I buy this machine from you?   ( Very easy and flexible !)



1. Consult us about this product on line or by e-mail.

2. Negotiate and confirm the final price , shipping , payment methods and other terms.

3. Send you the proforma invoice and confirm your order.

4. Make the payment according to the method put on proforma invoice.

5. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.

6. Send your order by air or by sea.



E 10 good reasons why you should buy from us?



1 we are a real factory offering products

2 free technical advice by QUALIFIED MECHANICAL ENGINEERS

3 company in business for many years

4 over 50 countries customers served!

5 buy direct saving your money!

6 all machine with CE, ISO, BV certificate.

7 machine and spindle warranty 1 year.

8 our engineer can go to your country to provide technical guidance

9 we have phone support in English, if you have any questions, you can call it, we can give you a best solution within 24 hours

10 fast delivery, save your time.



sample

CE certificate:

Packing:

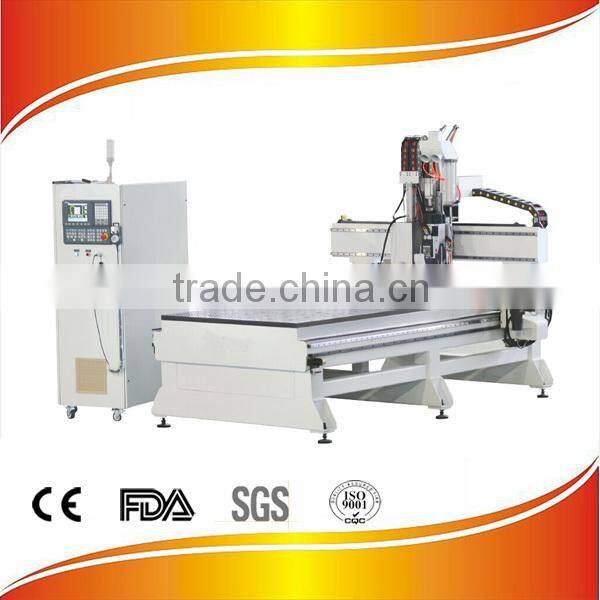

Product show:



Thank you for your visiting the product of Remax!

aim give the best service to our customer ,any qustion  feel free to contact me  jessica
