Remax-1325 wood cnc router with 4 axis rotary
- 100 Set / Sets per Month
- Qingdao Shanghai Tianjin
- T/T Credit Card PayPal
- Remax-1224 5 Axis CNC Router, Mni 5 Axis CNC Routers Machine Made In China
- Remax-1325 4 Axis CNC Router Machine, 4 Axis CNC Router Engraver Machine
- Remax-1224 5 Axis CNC Router Machine, CNC Router 5 Axis With Best Price
- Woodworking 5 axis cnc router machine for model
- 1325 4 axis mould cnc router for shoe/wood cnc router
- Remax-1325 cnc woodworking router with 4 axis rotary
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | Remax | Model Number: | 1325 | Voltage: | 380v |
Power(W): | 4.2kw | Dimension(L*W*H): | 3300*2100*1600mm | Weight: | 2600kg |
Certification: | CE,ISO,BV | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard wood packing or according customer requirement
Product Description
Specifications
wood cnc router with 4 axis rotarySyntec system

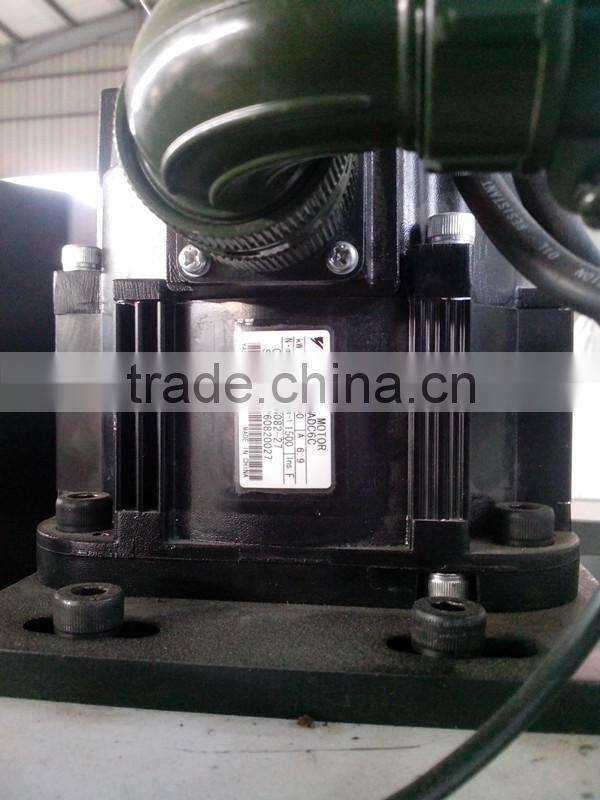

YASKAWA servo motor
HSD Spindle
Hiwin square rails
wood cnc router with 4 axis rotary
Product description:
1.4 axis cnc router , is specially for 4D work , the A axis can rotate +/- 90 degree
2.The machine's main parts are all from world famous suppliers, such as Syntec control system, Yaskawa servo motors, Sampo reducer, HSD spindle, Delta inverter and Becker vacuum pump, all components are from global leaders.
3.It can work on foam, MDF, Acrylic, wood, and the soft metal etc.
Parameter:
Index | Parameter |
X,Y,Z, AWorking Area | 2500x1300X400mm ±90° |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy: | ±0.03mm |
Table Surface | Integrated Vacuum and T-slot Combined (Option: T-slot Table) |
Frame | Precision machined & heavy duty frame (stress-relieved),one-piece steel base |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and TBI Ball Screw |
Max. Power Consumption | (Without Spindle) 4.5Kw |
Max. Rapid Travel Rate | 50000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Power | 4.5/6.0/7.0/9.5/12.0 Kw HITECO ATC(optional HSD ) |
Spindle Speed | 0-24000RPM |
Drive Motors | Yaskawa Motors |
Working Voltage | AC380V/50/60Hz,3PH |
Command Language | G Code |
Operating System | Syntec EZ-4M Control System/10B |
Computer Interface | CF card, Ethernet |
Flash Memory | 256M |
Tool holder | HSK F63 |
X,Y Resolution | <0.03mm |
Software Compatibility | Type3, UcancameV9 software ( UG software/Power mill) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
N.W. | 2600KG |
Optional Parts | Lucbricating system |
Vacuum Pump | |
Mist-cooling System | |
Positioning air cylinder |
1. High-performance Japanese Yaskawa servo system with planetary gear reducers to ensure the machine’s high speed and accuracy.
2. Original industrial standard HSK tool holders, Taiwan made Carousel tool magazine with 8 positions plus T9 the angle head position.
3. Top quality accessories, to minimize the machine’s failure rate,Well-known electrical parts Schneider, Omron, Honeywell, etc.
Main component

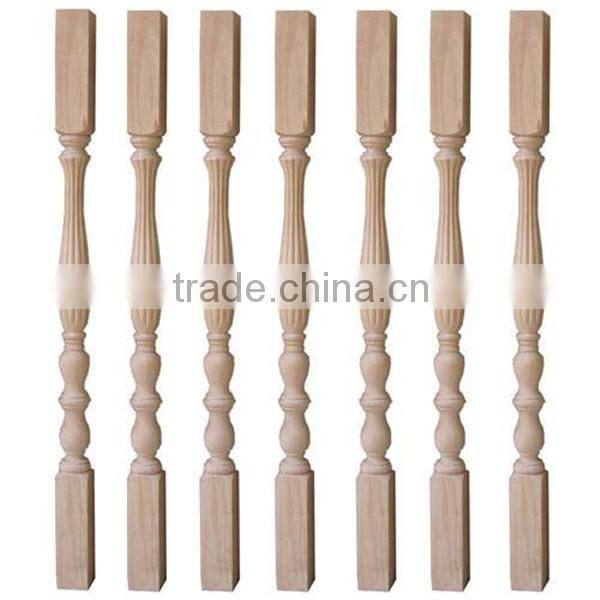

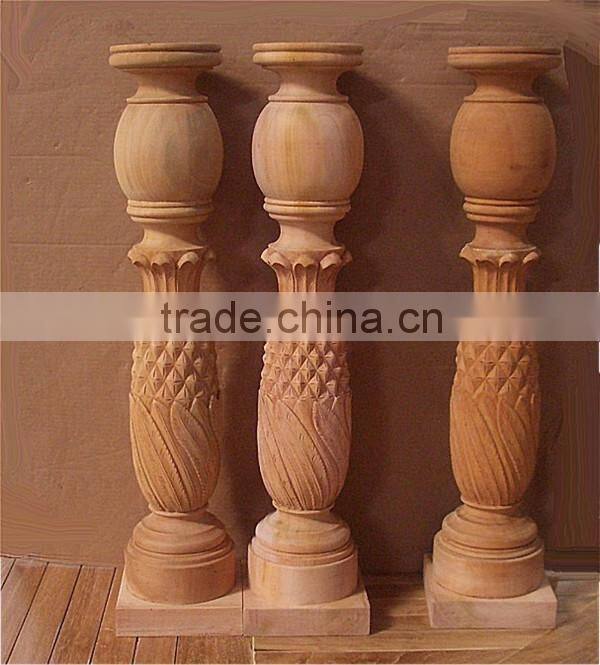

wood cnc router with 4 axis rotary Sample
Factory show
FAQ:
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by email / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.

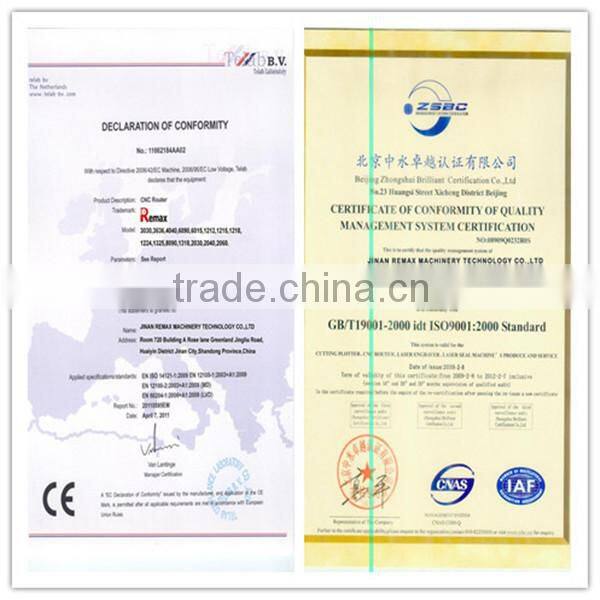

CE certificate:
Shipping
THANKS FOR VISITING THE PRODUCT OF REMAX AND IF YOU HAVE ANY QUESTION PLEASE CONTACE ME!
