Automatic AD Industry Bender Machine
1. Brief Introduction
Sign/Letter CNC channel letter bending machine, (also called CNC letter bending machine or character bending machine) is a new advertising production equipment, which can be used for logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising production.
We have 4 kinds of different CNC channel letter bending machines:JOY3016 is only to bend aluminum, JOY1625,JOY1625A and JOY3016Acan bend all kinds of metal. Different from other models, except bending function, JOY1625A is also with auto cutting through function.JOY3016A is with LCD touch screen.
2. Applied Materials:
Aluminum strip,Aluminum,stainless steel strip bending, iron bending, galvanized steel bending ect.
3. Feature
1) Friendly man-machine interface, simple configuration, touch-screen operation. Simply enter the processing of text, graphic design files, and then the machine can process them on materials automatically.
2) A unique three-dimensional process simulation technology, two-dimensional design file to be able to display three-dimensional effects, supplemented by translation, rotation, zoom and other functions, enables full observation and monitoring of whole working process.

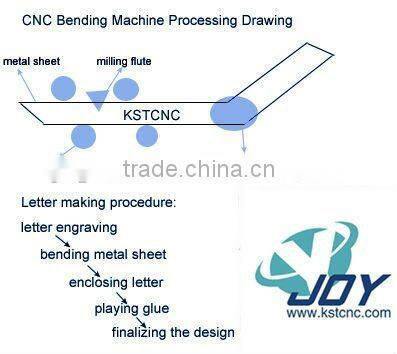

3) The original double-bent knife parallel bending technology to save time and greatly improve the processing efficiency, the maximum bending angle reached 130 °.
4) High precision machining, feeding precision can reach 0.01mm, bending accuracy up to 0.4 °.
5) With precision automatic calibration function, based on the way of the processing material, self-adjusting process parameters, so that it can match with a variety of engraving machines and cutting machine, meet a variety of complex embedded process accuracy as much as possible.
6) Wide range of applications: CNC Bending machine can process 0-1.5mm strip of aluminum, galvanized steel, iron and other metal sheet.

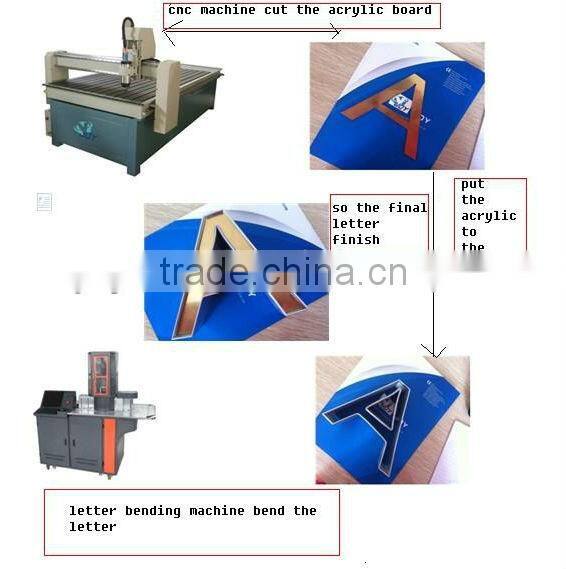

7) It can work in 0.05 precision, and work together with laser engraving machine, plasma cutting machine to realize the advertisement processing.
Model: |
JOY3016 |
JOY1625 |
JOY1625A |
JOY3016A |
|||
Control Type |
PC Control Type For Bending Aluminum Only |
PC Control Type For Bending All SS,CS,MS,Al |
Auto Bending & Cutting Type |
LCD Touch Screen Control Type |
|||
Bending Material: |
Only used to bend Aluminum . |
Can bend all kinds of Stainless Steel, Carbon Steel, Mild Steel, Galvanize Plate, Aluminum, Iron, etc..... |
|||||
Max. Processed Thickness: |
Aluminum: 0.5-2.0 mm |
Aluminum: 0.5 - 1.5 mm Stainless steel: 0.5 -1.0 mm(If 1.5mm, advanced type) Carbon Steel: 0.5 – 1.2 mm Mild Steel: 0.5-1mm Galvanize Plate: 0.5-1.0 mm Iron Steel: 0.5-1.0 mm |
|||||
Max. Processed Width: |
<180 mm |
<180 mm |
<180 mm |
<150 mm |
|||
Voltage: |
220V |
||||||
Size: |
1740*760*1450 mm |
||||||
Weight: |
400 KGS |
||||||
Import File Format |
PLT. |
||||||
Export File Format |
DAT |
||||||
Feed speed: |
5-20 Meter / Min |
||||||
Precision |
0.05 mm(feeding precision can reach 0.01mm) |
||||||
Remarks: |
1. Computer is not included in the price. 2. Machine only use to bend the aluminum materials. |
puter is not included in the price 2.Any computer you can use for running the machine,system must be Windows XP. |
1. This model has the function of Automatic Cutting The Letter after finishing bending. 2. Computer system and Computer Screen is not included in Price. |
1. Adopt advanced LCD Touching Screen to control. 2. No need PC system, Simple and compact, but need computer to make drawing |
|||
Samples:
