CNC glass engraver, cnc mirror polisher, cnc machinery, cnc glass machines
Parameters of cnc engraving machine:
Model |
JOY1525 |
JOY1925 |
XYZ working area |
2400*4100mm |
2800*4100mm |
Allocating accuracy(C axis) |
1500*2500mm |
1900*2500mm |
Allocating accuracy |
0-360 |
0-360 |
Repeatability |
(XYZ)0.10*0.10*0.02mm |
(XYZ)0.10*0.10*0.02mm |
Z axis |
(XYZ)0.05*0.05*0.01mm |
(XYZ)0.05*0.05*0.01mm |
Main axis |
10m/min |
10m/min |
Main axle rotating speed |
4000rpm |
4000rpm |
Main axle rotating rate |
4kW |
4kW |
Main grooving depth |
6-30mm |
6-30mm |
Engraving speed |
3m/min |
3m/min |
Voltage |
220V/380V |
220V/380V |
Thickness of glass |
3-30mm |
3-30mm |
Max diameter of blade |
Φ170mm |
Φ170mm |
Features of cnc glass engraving machine:
1.Unique graphic simulation capacibility enables to easily see the processsteps, significantly decreasing the error rate during processing;
2.Automatically calculating the compensation value during polishing;
3.Adopt Taiwan linear guide rail,Germany ball bearing piece,and Japan servo motors;
4.Widely used in glass and mirror engraving,grooving, polishing using different knives.
Agents wanted:
We are finding agents all over the world,please feel free to contact us.

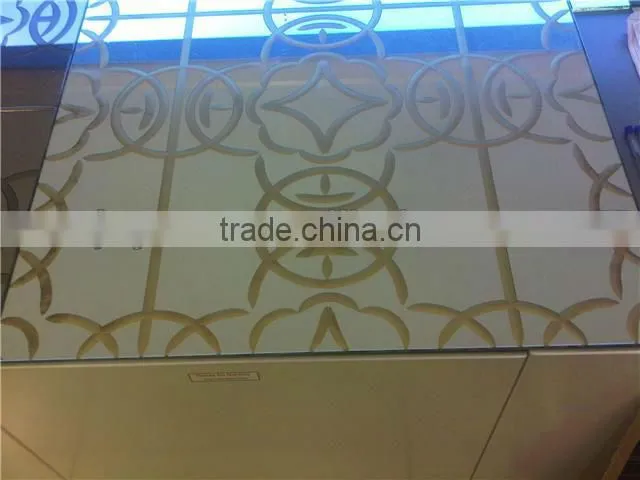

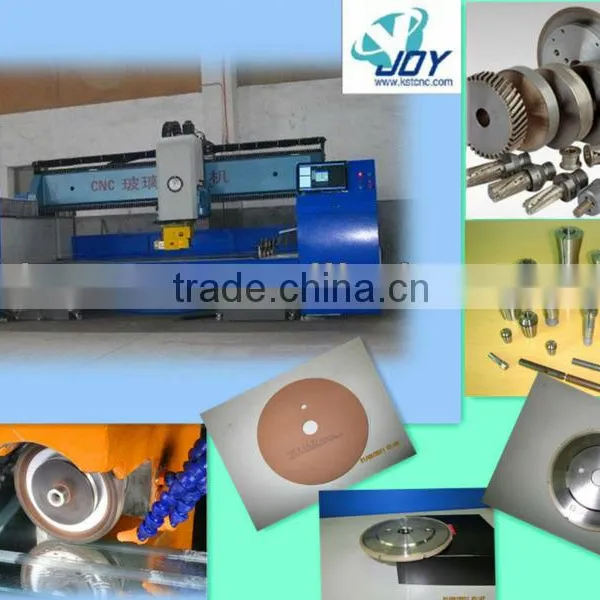

Image of cnc glass engraving machine:
