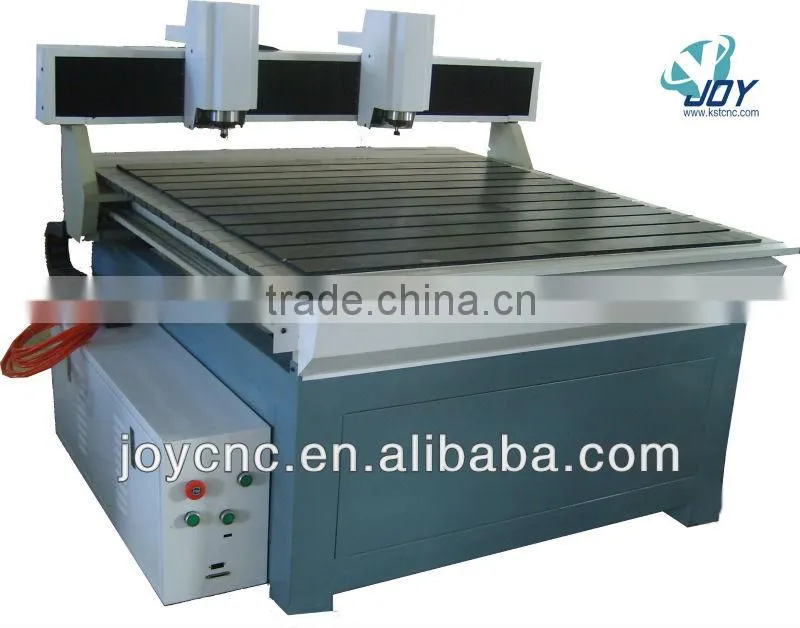

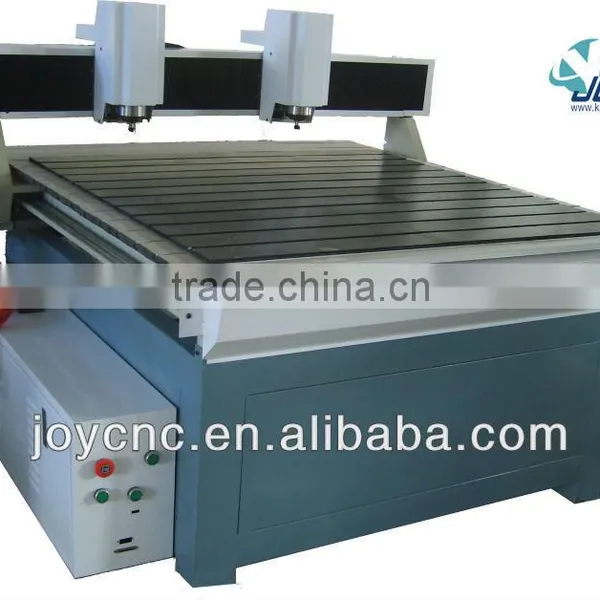

Spindle Speed 6000-24000rpm Export From China CNC Lathe Machine
Features: Advertising engraver
1. 3 axes transmission with Germany ball screws ensures stable and smooth movement of the machine.
2. Solid gantry, well structure of lathe bed, stable lathe table.
3. Application of driver with high definition and subdivision ensures fast speed and high accuracy.
4. High-speed spindle with water cooling system works vigorously with low noise, guarantee long time mass processing.
5. Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate.
6. Adopt advanced cnc system, configured with practical and easy-learned software, can conveniently check the moving path of tool, and adjust the processing depth of Z axis and the speed of motor.
Technical Index: Advertising engraver JOY Series
Model |
JOY6090 |
JOY1212 |
JOY1218 |
JOY1224 |
Working Area |
600*900*80mm |
1200*1200*120mm |
1200*1800*120mm |
1200*2400*120mm |
positioning accuracy |
±0.03/300mm |
|||
Repositioning accuracy |
±0.02mm |
|||
Max Moving Speed |
15000mm/min |
|||
Max Engraving Speed |
10000mm/min |
|||
Spindle power |
1.5KW/2.2KW |
|||
Spindle Speed |
6000-24000rpm |
|||
Diameter of tools |
3.175,4mm,6mm,12.7mm |
|||
Voltage |
AC220V,50Hz/60Hz(option:AC110V,50Hz/60Hz) |
|||
Drive motor |
High precision stepper motor(option:servo motor) |
|||
Working Dictate |
G code |
|||
Operating system |
NC-Studio/DSP System |
|||
Interface |
PCI,USB |
|||
Software Compatibility |
Type3,(option, Ucancam, Artcam Software) |
|||
Running Environment |
Temperature: 0°C~45°C |
|||
Relative humidity: 30%~75% | ||||
Machine configuration: Advertising engraver JOY Series
High precision Stepper motor Imported ball screw Linear guide rail made in Taiwan
(HIWIN/AMT/TBI)
DSP controller(Option) Rotary attachment (Option)
Applicable industry
can be used for advertisement engraving and cutting, stone processing, mold manufacturing, wood processing, craft manufacturing, light box cutting, building model cutting, indoor decoration cutting, light equipment mold processing, sign and mark manufacturing, acrylic board processing.
Applicable material
Acrylic, PVC, Plexiglas, organic board, double-color board, and wooden material, human made stone, aluminum etc.

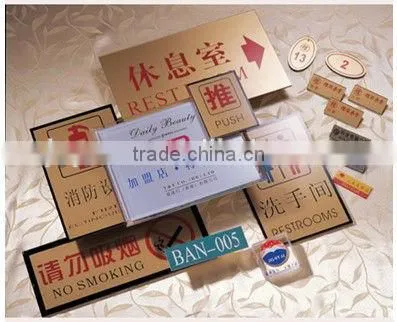

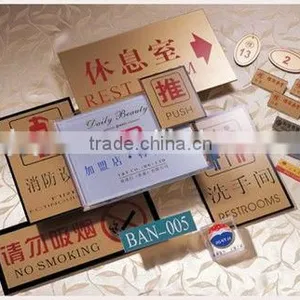

Samples:
Indoor decoration Aluminum engraving Rating plate Wood art peircing
Cylinder engraving(add axis) Double-color board engraving Acrylic engraving
Remarks:
Above price includes: One-year after-sales service
Machine 1 set,
English manual
CD video to show how to operate
One-year after-sales service includes:
1. We will offer some of the parts for free in the first year. The buyer needs to pay for the shipping cost for the parts. The user needs to send us pictures of the broken one, then we will send out the part they need.
2. In the first year, if the buyer needs our engineers to come to the local to fix some problems of the machine that they cannot fix by themselves; we will send our engineers for free. The buyer needs to pay the flights, housing and meals for the engineers in the local.
3. We will offer our service through email and phones if the buyer needs any help on technical problems.
Pls don't hesitate to email to us for any questions and further infors, we will do our best to assit you !
