JOY3030 Mini Auto CNC Router

JOY3030 Mini Auto CNC Router thumbnail-1
JOY3030 Mini Auto CNC Router photo-1
US$ 2,000 - 4,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Hubei, China
Contact Supplier Request Quote Chat Now
Wuhan King Suntime CNC Equipment Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Hubei, China
Brand Name JOY
Model Number JOY3030
Voltage AC220V/50HZ
Power(W) 300w
Dimension(L*W*H) 300X300X200MM
Weight 200KG
Certification CE,ISO,GS,SGS,UL,CCC,CE/ISO
Warranty one year
After-sales Service Provided Overseas service center available

Specifications

JOY3030 Mini Auto CNC Router
1.5KW water cooling spindle
high speed stepper motor
German Ballscrew
CE

                        JOY3030 Mini Auto CNC Router



Detailed Product Description:

1. To be filled out with Germanic double-nut ball screw automatic arc gap

2 .Linear guide and surface contact, orbit has high precision. Its lifespan is 2200 times than the ordinary orbit.

3. Continuing engraving after point breaks and blades breaks .Hold more than 9 points, engrave at discretion.

4. Good compatibility. Compatible software CAD/CAM, such as Type3, Artcarm, Proe, Corelerow, Wentai, etc. It can manufacture fancy Emboss, Shadow engraving and 3D arts.

5. Large power frequency water cooling spindle, it can cut 20-30mm Perspex at a time. It is used for advertising, mould, gift, architecture, furniture mould and so on.

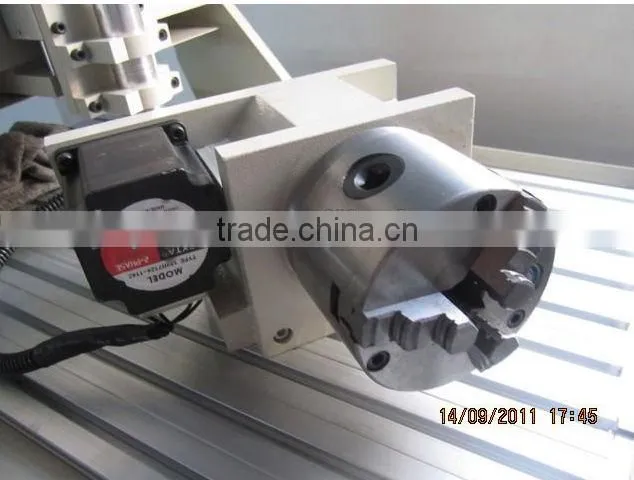

 6. C axis can produce the rotary job with high precision..



Technical Description

Model

JOY-3030

JOY-6090

X Y working area

300*300mm

600*900mm

Z working area

>80mm

>100mm

Table size

420*450

720*1150mm

Max travel speed

4m-5.5m/min

4m-5.5m/min

Max engraving speed

2m-3m/min

2m-3m/min

Resolution

0.005mm

0.005mm

Reposition accuracy

0.05mm

0.05mm

Max feeding height

100mm

100mm

Command

G

code*.u00*.mmg*.plt

G

code*.u00*.mmg*.plt

Surrounding for software

windows98/2000/xp

windows98/2000/xp

Power(not include the spindle)

300W

300W

Power

AC220V/50Hz

AC220V/50Hz

Main axle power

1.5KW

1.5KW

Main axle rotating speed

0-24000rpm/min

0-24000rpm/min

Work Mode

Stepper

Stepper





Details product description:

1. with the round guide of Taiwan, the round guide and surface contact, orbit has high precision

2. to be filled out with Germany double-nut automatic anti-backlash ball screw

3. high-speed driver, good speed and big power, Stepper motor

4. continue engraving after breakpoints and blades breaks

5. good compatibility, compatible software CAD/CAM, such as Type3,Artcam,Proe,Corelerow,Wentai,etc

6. large power frequency water cooling spindle, hard material can be worked effectively and easily

7. 10 cutters( φ6,  φ12.7) wooden case,  2 collets



SAMPLES:



 JOY3030 Mini Auto CNC RouterJOY3030 Mini Auto CNC Router

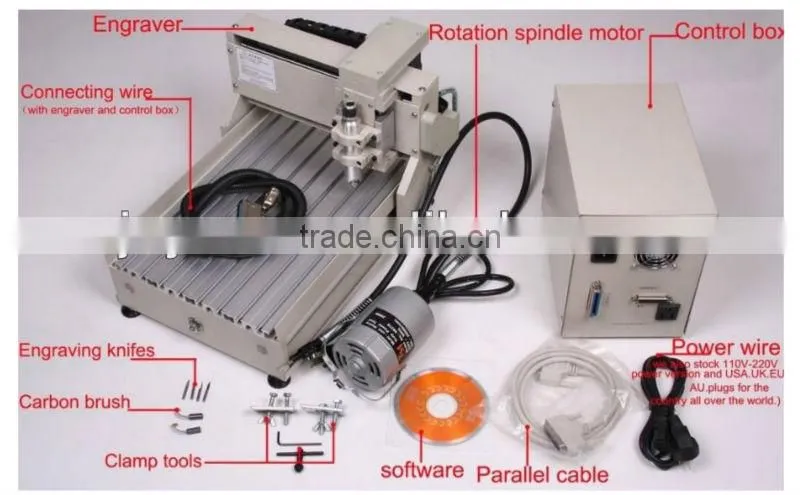

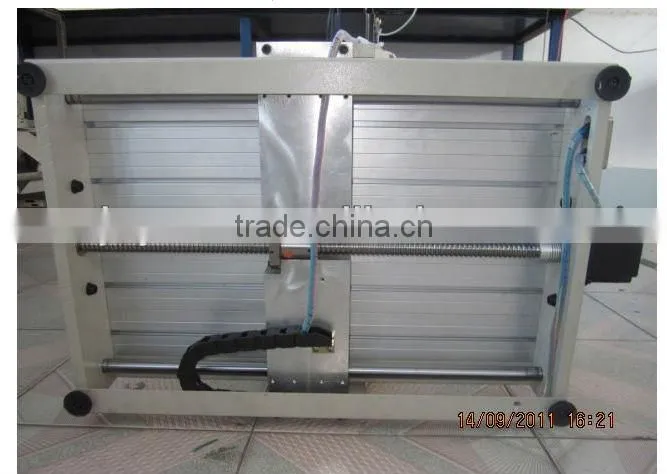

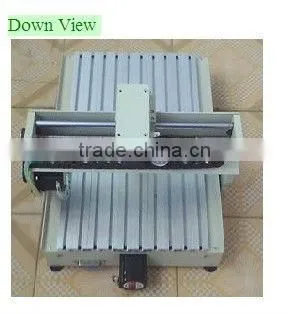

Main parts for the machine:



JOY3030 Mini Auto CNC RouterJOY3030 Mini Auto CNC RouterJOY3030 Mini Auto CNC RouterJOY3030 Mini Auto CNC RouterJOY3030 Mini Auto CNC Router

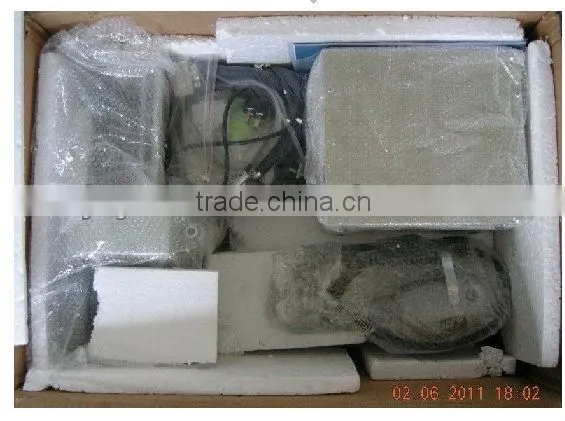

JOY3030 Mini Auto CNC Routerpackage





If you have something not clear or with some questions,please feel free contact me..



yours susan with NO.+86 18672973882  SKYPE:SUSANXIA6
