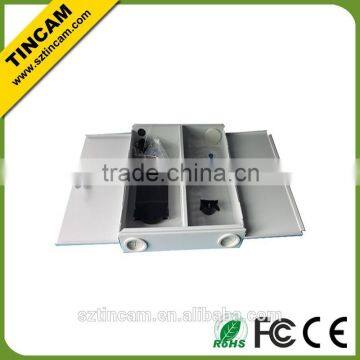

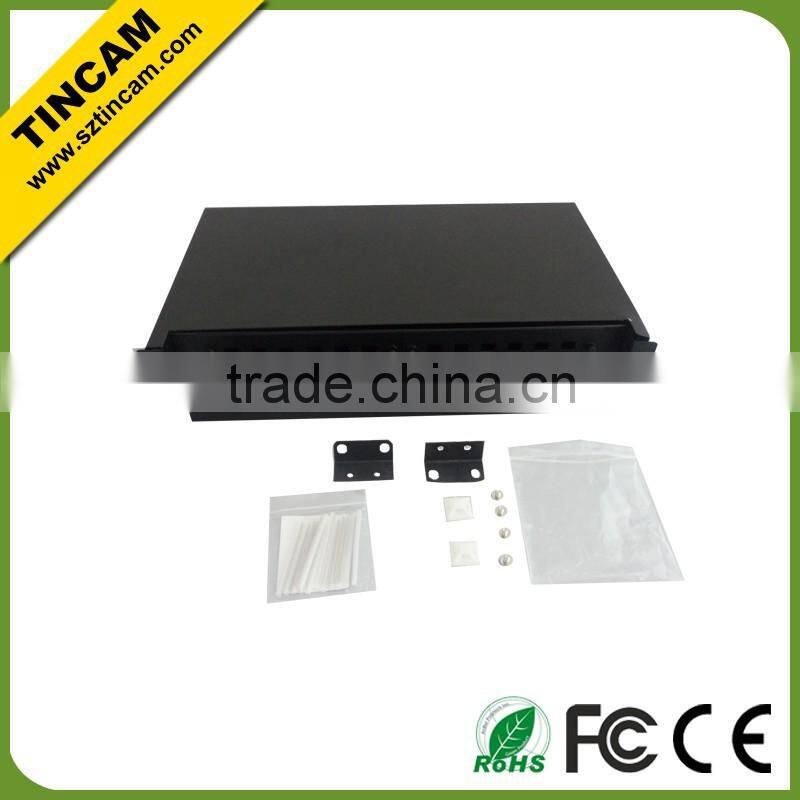

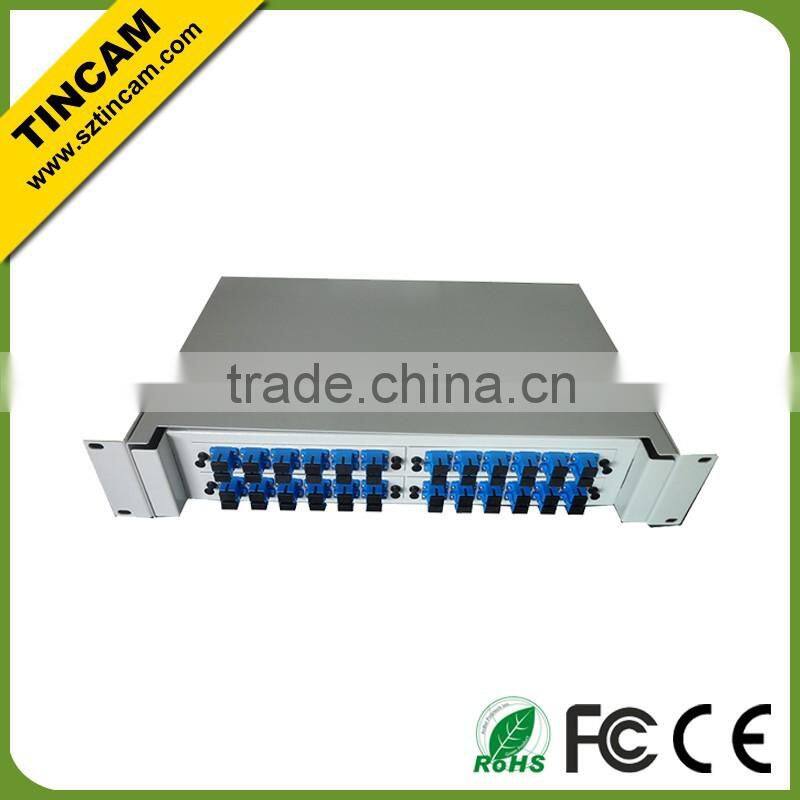

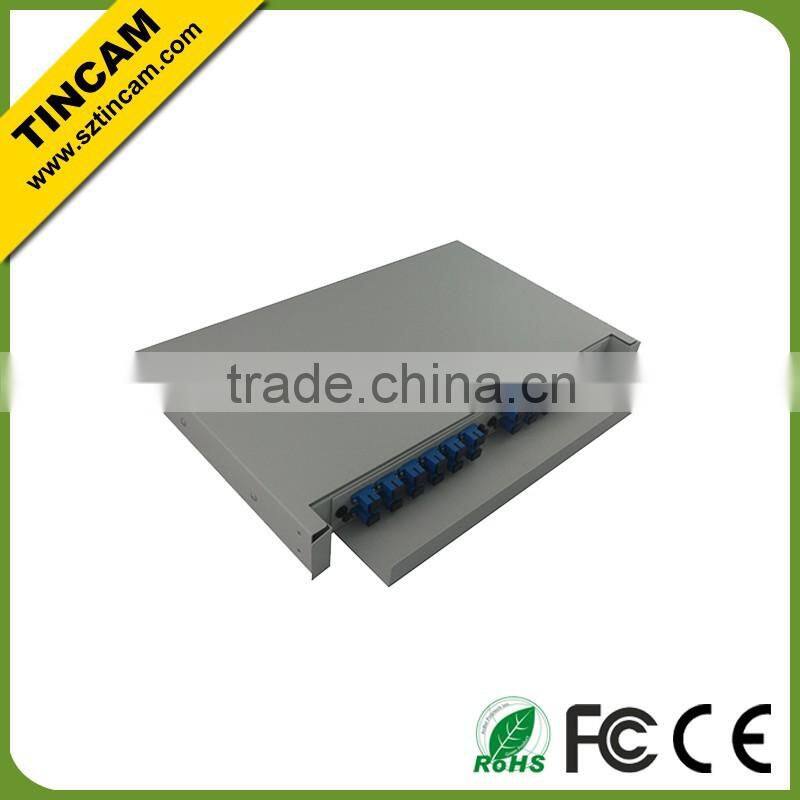

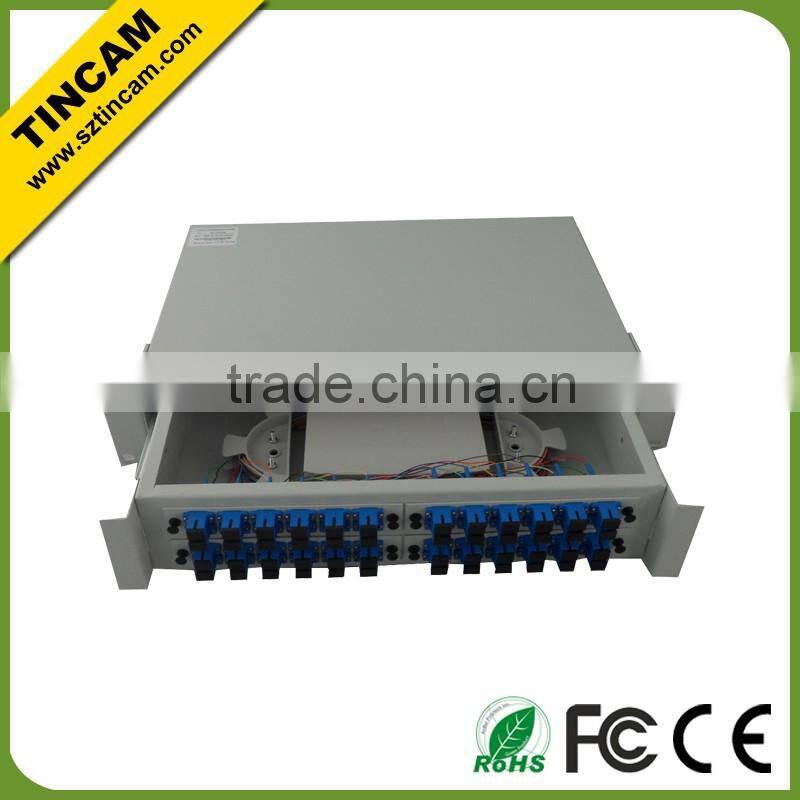

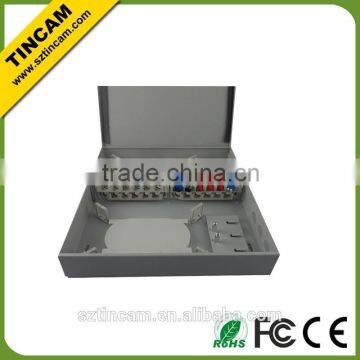

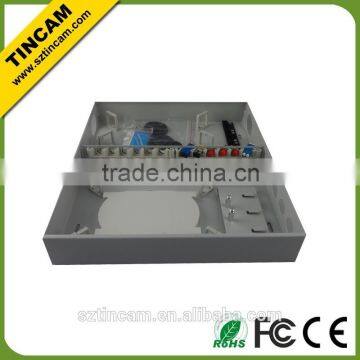

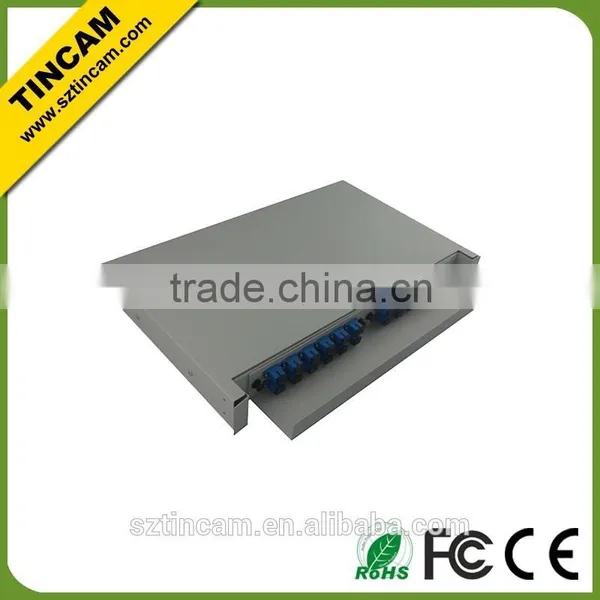

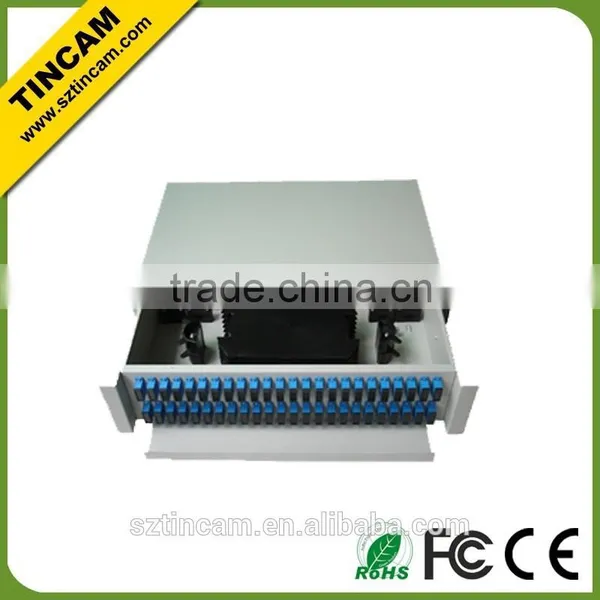

sliding /rack mount/fixed type fiber optic patch panel
Specifications
latest modle Pull type 24 Cores ODF
1.19 inch or 23 inch
2.1U- 4U Size
3.verified company&OEM
Features:
1. Applied to various of optical fiber distribution frames, distribution cabinets and optical cable cross-connection cabinets.
2. With splice trays in the box and integrate heat sealing and wiring into one.
3. Apply double-sided structured optical fiber splice tray to make full use of the two sides of the board.
4. It's suitable for ribbon or non-ribbon optical fiber cable.
5. Every tray can be clamped with 12FC/SC/ST adaptors.
6. Install adaptors on the face side of optical fiber splice tray in a bayonet way at an oblique angle of 30 degrees to ensure curve radius of optical fiber and prevent eyes from being damaged by laser light at the same time
Parameters:
| Dimension | Height(mm) | Width(mm) | Depth(mm) | Weight(kg) |
| 24core | 70 | 430 | 300 | 5.4 |
| 48core | 140 | 430 | 300 | 7.8 |
| 72core | 200 | 430 | 300 | 10.6 |
| 96core | 255 | 430 | 300 | 12.2 |
Optical Fiber Distribution Frame and Benefits:
- Versatile panel with extendable double slide rails for smooth sliding
- 1RU suitable 2-4pcs KNC standard adapter plates at different size
- Silkscreen printing on the front aperture for fiber identification
- Comprehensive accessory kit for cable entry and fiber management
- Able to hold MTP (MPO) loaded cassettes
- Customize design available
Optical Fiber Distribution Frame Applications:
- Suitable for fusion splicing, direct termination and pre-terminated cables
- 1RU, 2RU, 3RU 4U and High Density versions optional
- Suitable for 19”; 21” and 23” racks
- Full assembly (loaded) or empty panel optional
Specification
Model |
Core Count |
Height |
Dimension(cm) |
Weight(kg) |
ODF-R144 |
144 |
7U |
49x30.5x31.15 |
17.1 |
ODF-R96 |
96 |
5U |
49x30.5x22.25 |
11 |
ODF-R72 |
72 |
4U |
49x30.5x17.8 |
9 |
ODF-R48 |
48 |
3U |
49x30.5x13.35 |
7 |
ODF-R36 |
36 |
2U |
49x30.5x8.9 |
5.7 |
ODF-R24 |
24 |
2U |
49x30.5x8.9 |
4.6 |
