Place of Origin Fujian, China
Brand Name Juentai
Model Number JT-1000MINI
Type Handheld
Dimensions 13.2x5x3cm
Frequency Range 400-480MHz
Storage Channel 16
Talk Range 1-3km

JUENTAI JT-1000mini UHF 400-480mhz 16CH 3w With CTCSS/DCS and 1750hz Call Tone and DTMF FSR Handheld Transceiver

JUENTAI JT-1000mini UHF 400-480mhz 16CH 3w With CTCSS/DCS and 1750hz Call Tone and DTMF FSR Handheld Transceiver

Product Description

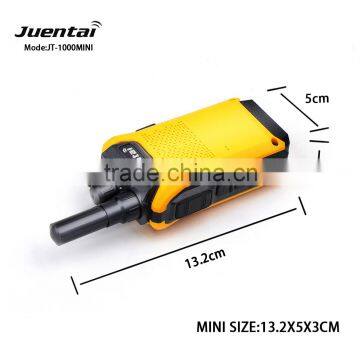

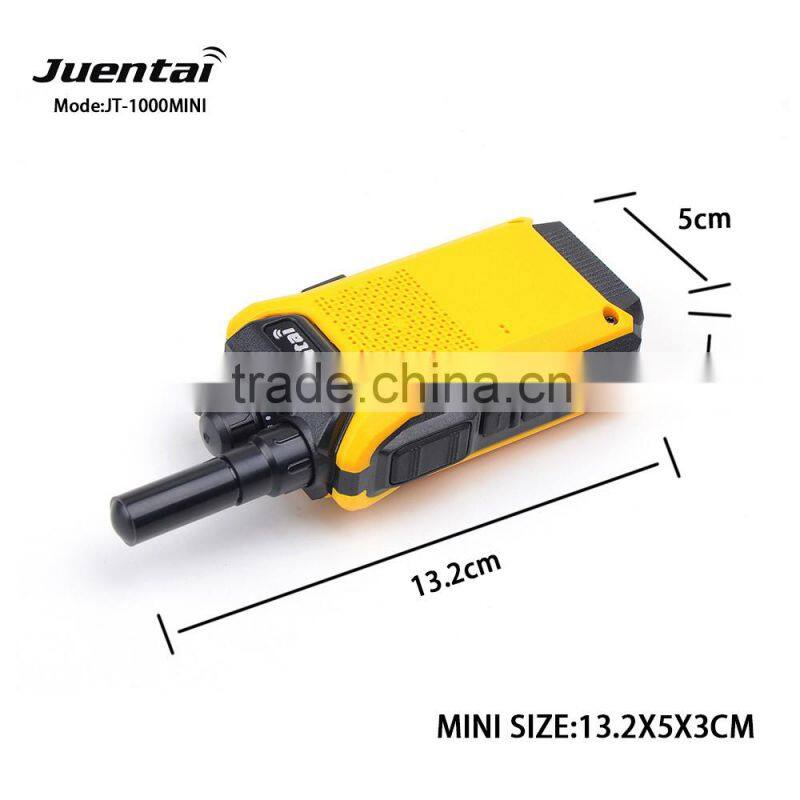

JT-1000MINI It is a super mini Two-way radio Size only(with short antenna): 13.2x5x3cm Very convenient to carry,In the city it is effective distance calls 1-3Kilometer,In the outskirts Effective distance is 5-10Kilometer, JT-1000MINI Plastic outer covering material is imported ! JT-1000MINI radio the sound is very Clear and strong Is your good choice!



1. Jacklight

2. PC programmable

3. Channel scan

4. TOT

5. Low power alarm

6. Wide/Narrow bandwidth

7. Squelch level adjustable

8. H/L output power selective

9. Voice prompt

10. CTCSS/DCS

11. Dual-watch operation

12. PTT-ID

13. DTMF function

14. 1750Hz call tone

General Specifications

Frequency Range:UHF:400-480MHz

Channel 16

Operating Voltage 3.6V

Antenna Impedance 50Ω

Operating Temperature -25℃~+65℃

Frequency Stability ±2.5ppm

Receiving part

Output Power ≤5W

Modulation W/N 16KΦF3E/11KΦF3E

Maximum Frequency Deviation W/N ≤5KHz/≤2.5KHz

Stray Power ≤7.5μW

Audio Distortion <10%

Transmitting section

Sensitivity ≤0.25/0.28μV

Adjacent Channel Selectivity ≥65dB/≥60dB

Intermodulation W/N ≥60dB/≥55dB

Spurious Rejection ≥65dB

Audio Power ≤0.5W

S/N 43/38dB

Package

Battery Standard:1500mAh (Li-ion)

Dimensions (L*W*H flat part)300m X 220mm X 70mm

Weight (with antenna and battery) 328g

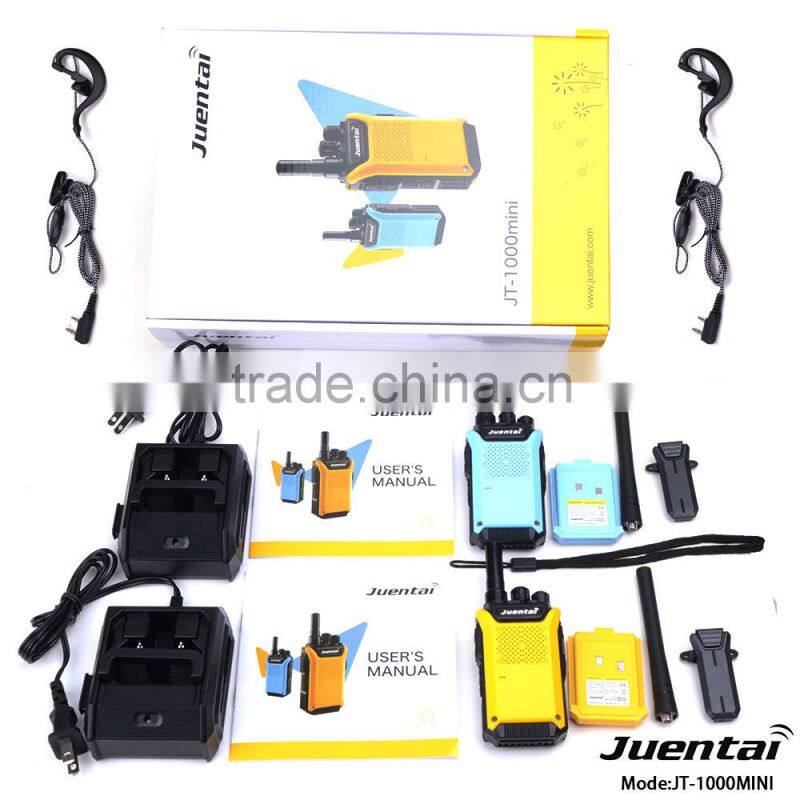

Packet includes:

2× JT-1000MINI two way radio

2× 3cm short Antenna

2× 11cm long Antenna

2× Earpiece

2× 1500Mah Li-ion battery pack

2× 110V-220V Charger

2× Belt clip

2× The sling

2× User's manual
