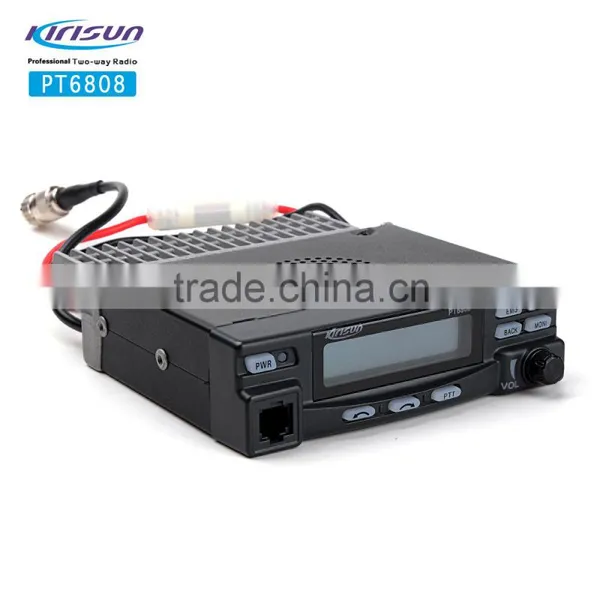

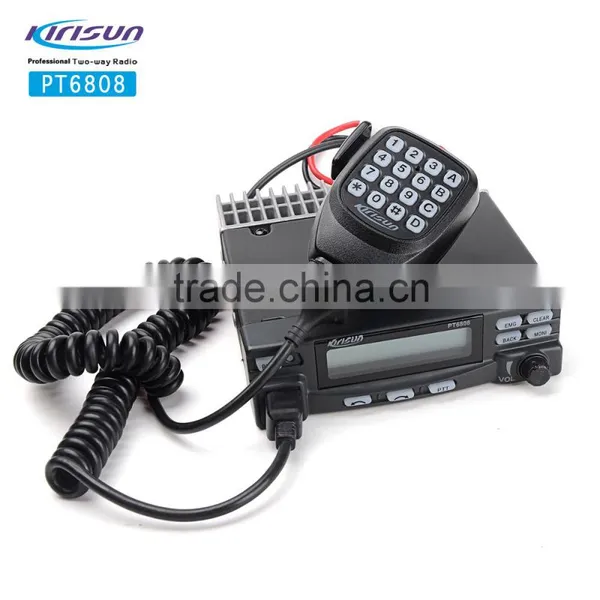

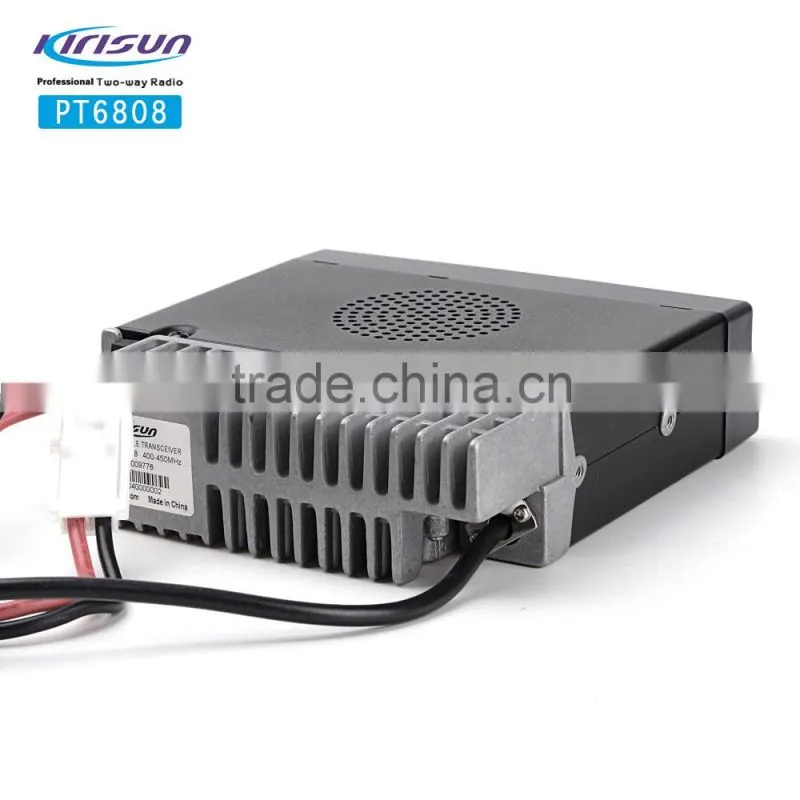

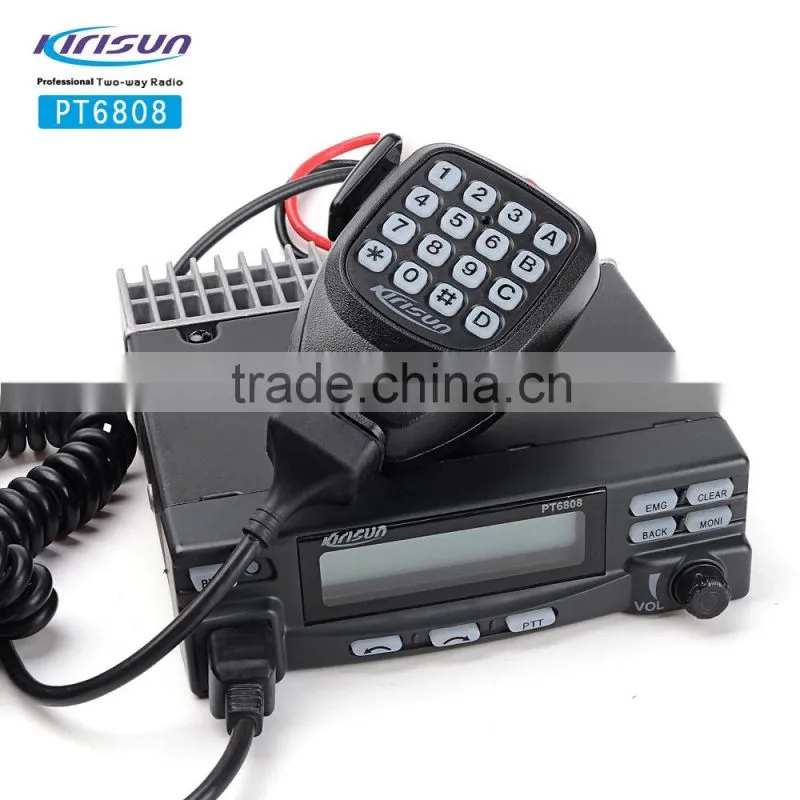

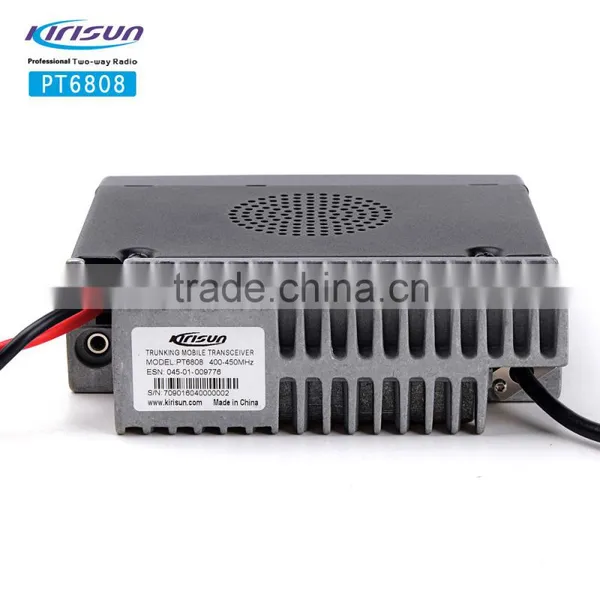

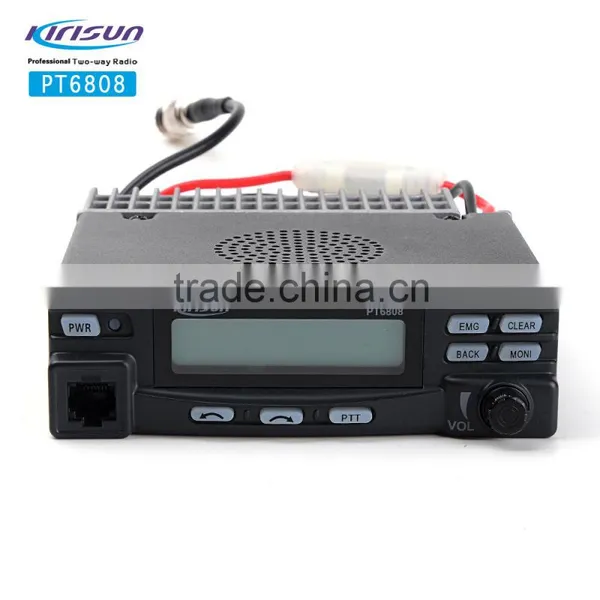

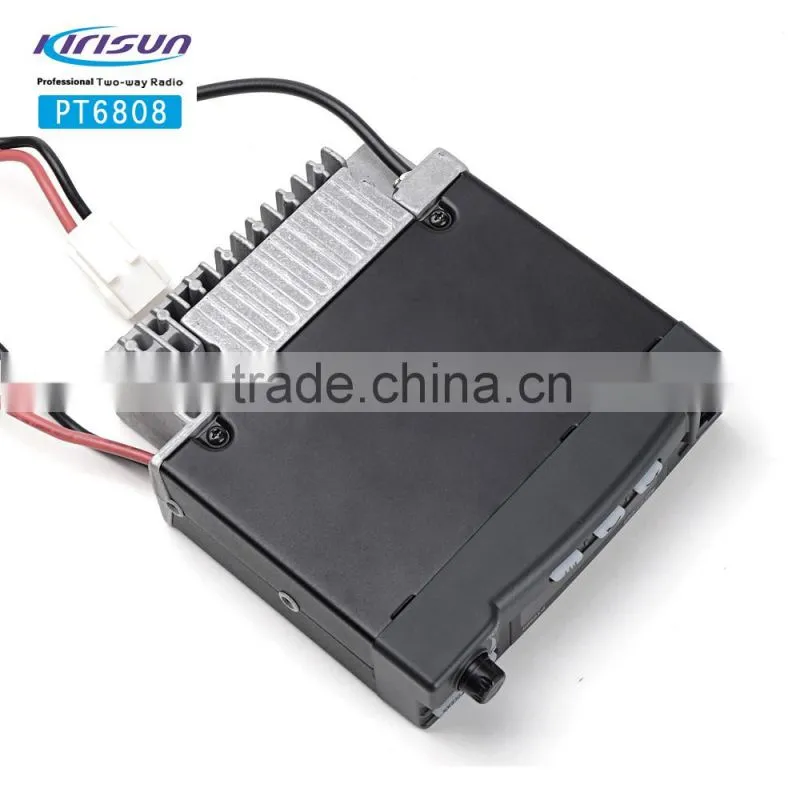

Kirisun PT6808 Professional Mobile Radio Compliant with MPT1327 Trunking System 350-390/400-450Mhz Mobile Transciver
Product Description
A professional mobile with Large Dot Matrix LCD and 6 System networks for MPT1327 Trunking System, which can define parameters for the 6 system networks, and switch among different networks.
Features:
6 System Networks
The user may define parameters for the 6 system networks, and switch among networks to operate in different system networks.
Auto Select BS
The advanced hunt technology enables the radio to always lock onto the BS with stronger signal, ideally suited for the multiple BS covered system. As for the single BS, this feature can be disabled.
Dynamic Regrouping
Users have the flexibility to reassign the radios into new talk groups for urgent communication, eliminating the need to return the radios to the workshop for re-programming. The system designated temporary group number is changed upon the mobile radio receives temporary grouping signal from the trunking system.
Kill/Revive
Through the base station, a lost radio may be remotely killed, and a killed radio can be remotely revived.
Tough and reliable design
PT6808 meets waterproof IP 54 where the radio does not harm when work in the rain. In addition, it meets MIL-810C/D/E/F standards, it could withstand harsh environment.
Large capacity storage
Each parameter can set 200 addresses
Powerful Password Protection
The radio offers power on and programming password protection, to prevent unauthorized use; plus reading password to both protect the privacy and prevent unauthorized cloning of radio data.
Redial in memory style
6*10 groups dialed number records, press redial-key to call.
Calling Party Number Display
During a group call, the radio can display the number of the calling party for caller identification
Large Dot Matrix LCD
The 2-line alphanumeric & iconic display allows immediate communication of vital information such as signal strength indicator, menu number/content, group call talking party number/alias, PFIX, SYS, roaming indicator. Individualized display also provides radio number, user name, and group when radio standby. The keypad and display illuminations also provide the visibility to operate your radio in the dark.
Voice Compandor
The feature effectively improves the dynamic range of voice signal and enhances the SNR of the given frequency deviation. Decreased background noise insures a transmission of clear voice even in noisy environment.
PT6808 General | |
Frequency Range |
350-390MHz 400-450MHz |
Control Channels |
6*64 |
Conventional Channels |
6*32 |
Channel Spacing |
12.5KHz/25KHz |
Operating Temperature |
-30℃~ +60℃ |
Antenna Impedance |
50Ω |
Microphone impedance |
2KΩ |
Frequency Stability |
±2.5 ppm |
Dimension |
140mm×40mm×145mm |
Weight |
895g |
Transmitter | |
RF Power Output |
25W/5W |
Frequency modulation |
16KφF3E/11KφF3E |
Spurious and harmonics |
≤-75dB |
Modulation Limiting |
±2.5KHz-12.5KHz, ±5KHz-25KHz |
FM Noise |
40dB - 20/25KHz |
Modulation Distortion |
< 5% |
Receiver | |
Reference Sensitivity |
0.28μV-12.5KHz |
Adjacent channel Selectivity |
60dB @ 12.5KHz |
Intermodulation |
65 dB |
Spurious Response Rejection |
70 dB |
Rated Audio Output |
1W |
S/N |
40/35 |
Rated Audio Distortion |
5% |
Why choose us?
1.Our company established in 2001
2. Reply your inquiry in 24 working hours.
3. Well trained experienced staff reply all your questions.
4. Customized design is available, OEM&ODM service are welcomed.
5. Fast delivery to customers all over the world after deposit.
6. 100% QC inspection before shipment.
7. One year warranty for radios, six month for accessories.
8. Excellent after-sales service.
