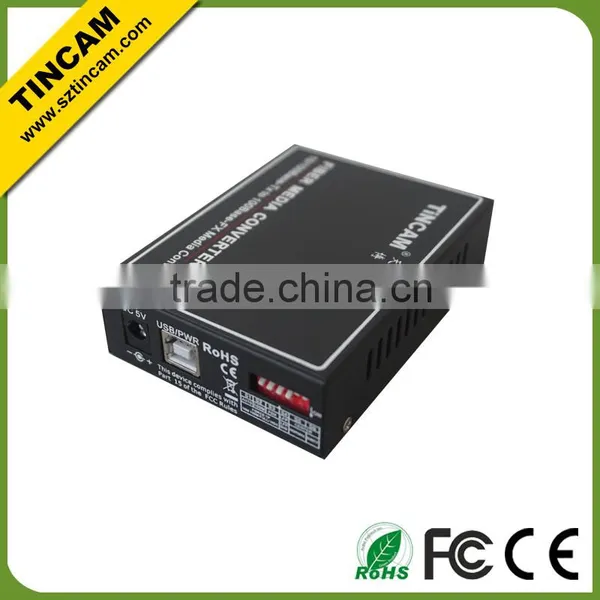

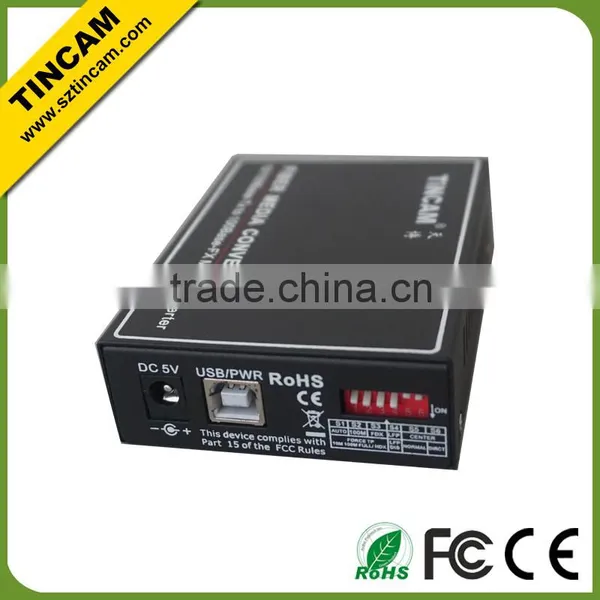

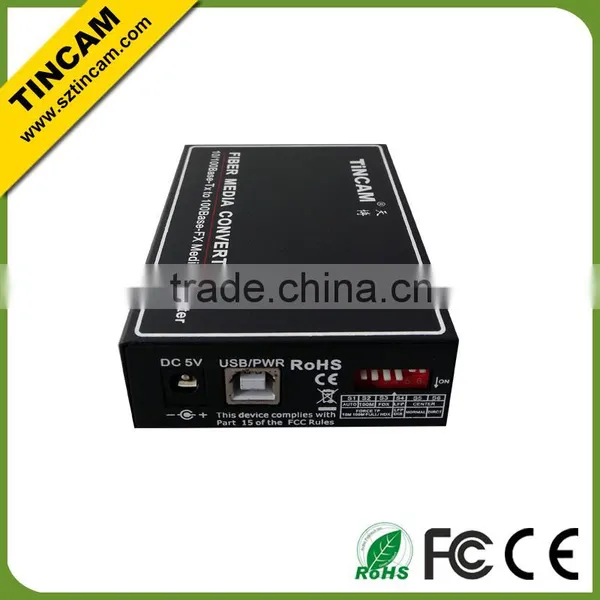

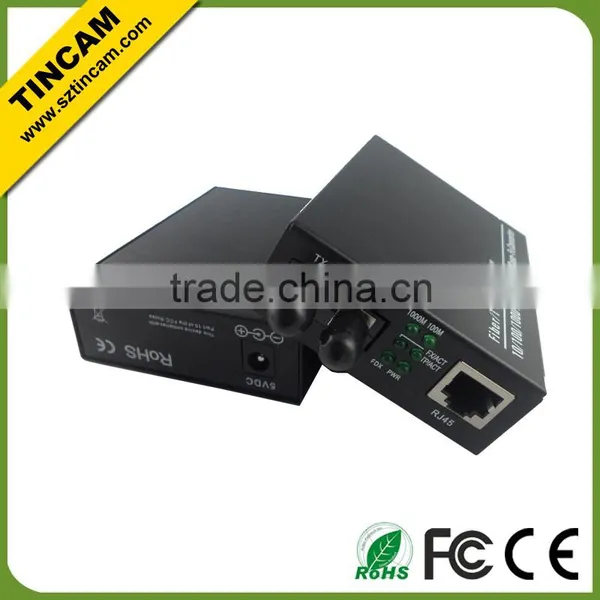

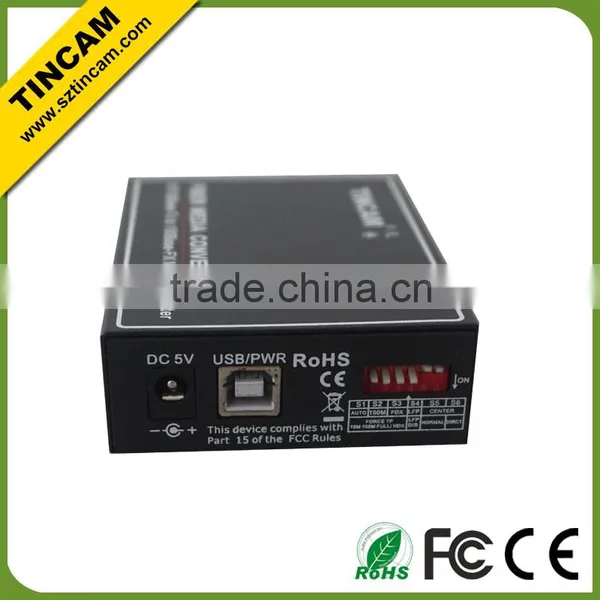

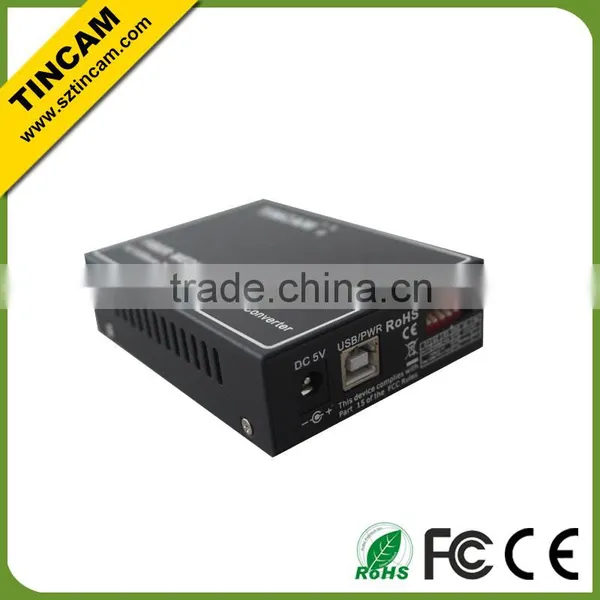

Ethernet fiber Media Converter with DIP&LFP price
DESCRIPTION
TINCAM 10/100Mbps auto-negotiation Media Converter is the network communication device that realizing smooth network upgrade without any additional cost. It is high-performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network. It completely conforms to 10Base-T,100Base-TX,100Base-FX and IEEE 802.3xstandards, and can connect with PersonComputer, SERVER, HUB and SWITCH.It can be set into full/half duplexauto-negotiation by manual, and it has twotransmission mode: SM and MM, and itsinterface has many selectable optic fiber connectors and RJ-45 connector.
FEATURES
n Complies with IEEE 802.3 10 Base-T standard.
n Complies with IEEE 802.3u 10/100 Base-TX/FX standard
n Complies with IEEE 802.3X standard
n 10/100/ Mbps port with full/half duplex auto-negotiation
n Back pressure flow control for full duplex
n Twisted-pair connector: NODE/HUB or SWITCH (5 class UTP)
n Back pressure flow control for full/half duplex IEEE802.3X
n Automatic identification of MDI/MDI-X cross-line
n High-performance 155Mbps memory bandwidth
n Complies with FCC, 15 CLASS A ,RoHS and CE MARK
APPLICATION
n Apply to ready to rise to 10M extended enterprise network bandwidth 100M
n Apply to images, voice and other multimedia data on an integrated transport network point
n Applies to the computer signal transmission in need of the occasion widely used for computer data transmission network to meet a variety of business needs
n Apply to the campus broadband network, broadcasting network and intelligent residential broadband fiber-to-floor fiber to the home data transfer with the switches and other computer network equipment can be combined to form:-chain, star, ring-type network and other computer networks
TECHINCAL SPECIFICATIONS
Standard Protocol |
IEEE802.3 10 Base-T standard |
||
IEEE802.3u 10/100Base-TX/FX standard | |||
IEEE 802.3d standard. | |||
IEEE 802.3Q standard. | |||
Band Width |
RJ 45 Port: 10/100Mbps |
Optical Port: 155Mbps |
|
Operation Mode |
Full /Half duplex mode |
||
Connectors |
UTP: RJ-45 |
Fiber connector: SC/ST/FC |
|
Operation Mode |
Full /Half duplex mode |
||
LED Indicators |
POWER, FPL,10/100, FRX, TRX , FDX. |
||
Power Supply |
External |
DC-48V,DC24V,DC12V,DC5V |
|
Internal |
AC110-250V/50Hz |
||
DC -32~-72V | |||
Power Consumption |
≤5W |
||
Environmental Parameters |
Work Temperature |
0℃~50℃ (32 °F ~ 122°F ) |
|
Storage Temperature |
-40℃~70℃ (-40 °F ~ 158°F ) |
||
Humidity |
5%~90% non-condensing |
||
TP Cable |
Cat5 UTP cable (the max distance up to 100m) |
||
Fiber Cable |
8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -120km) |
||
50/125, 62. 5/125μm(the max distance up to 2km or 5km) | |||
MTBF (Hours) |
>50000 |
||
Dimensions(mm) |
External power supply |
94mm*70mm*25mm (3.7 *2.8*0.98 inch) |
|
Internal power supply |
140mm*110mm*30mm (5.5 *4.3 *1.2 inch) |
||
Socket Card |
157mm*128mm*31mm (6.2 *5.1 *1.2 inch) |
||
Gross Weight |
External power supply |
0.4 kg |
|
Internal power supply |
0.8kg |
||
Socket Card |
1.0kg |
||
Emission/Safety |
FCC Part 15 , Class A, RoHS and CE Mark |
||
