Specifications
1.EXFO Palm/handheld All Fiber OTDR Meter AXS-1102.English language
3.IN STOCK!!!

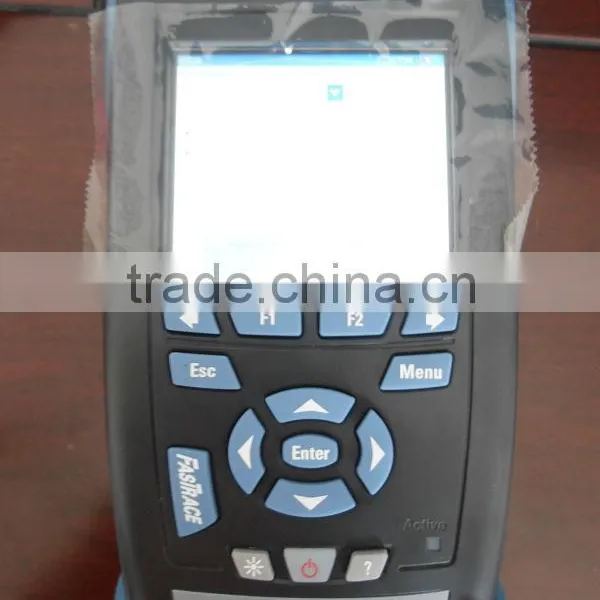

EXFO’s AXS-110 Handheld OTDR
series covers the whole range of short-haul OTDR test applications. Featuring unrivaled event dead zones and first-class dynamic ranges, it includes four models to better suit your specific OTDR testing requirements.
AXS-110 All-Fiber OTDR
Combining singlemode and multimode capabilities for enterprise, campus and access networks, this model offers the 850, 1300, 1310 and 1550 nm wavelengths, with respective dynamic ranges of 24, 25, 32 and 30 dB.
AXS-110-SM Singlemode OTDR
Ideal for FTTx/access and CATV testing, this model offers the 1310 and 1550 nm wavelengths, with respective dynamic ranges of 32 and 30 dB.
AXS-110-MM Multimode OTDR
Optimized for enterprise testing on both 50 and 62.5 µm multimode fiber, this model offers the 850 and 1300 nm wavelengths, with respective dynamic ranges of 24 and 25 dB.
AXS-100 Access OTDR
Designed for singlemode OTDR troubleshooting, it features an in-service PON troubleshooting option and offers the 1310, 1550 and 1625 nm wavelengths, with respective dynamic ranges of 29, 28 and 28 dB.
SPECIFICATIONS |
AXS-100 |
AXS-110 |
Wavelength (nm) |
1310/1550/1625 |
850/1300/1310/1550 |
Dynamic range b (dB) |
29/28/28 (1310/1550/1625) |
24/25/32/30 (850/1300/1310/1550) |
Pulse width (ns) |
10, 30, 100, 275, 1000, 2500, 10 000 |
Multimode: 5, 10, 30, 100, 275, 1000 Singlemode: 5, 10, 30, 100, 275, 1000, 2500, 10 000 |
Event dead zone (m) |
2.5 |
0.8 |
Attenuation dead zone (m) |
11/12/12 |
3.5/4.5/4/4.5 |
Launch conditions |
|
Class CPR 1 or 2 |
Linearity (dB/dB) |
± 0.05 |
± 0.03 |
Loss threshold (dB) |
0.05 |
0.01 |
Loss resolution (dB) |
0.01 |
0.01 |
Sampling resolution (m) |
0.16 to 5 |
Multimode: 0.08 to 2.5 Singlemode: 0.08 to 5.0 |
Sampling points |
Up to 30 000 |
Up to 64 000 |
Distance uncertainty (m) |
± (1 + 0.005 % x distance + sampling resolution) |
± (0.75 + 0.0025 % x distance + sampling resolution) |
Distance range (km) |
0.65 to 160 |
Multimode: 0.1 to 40 Singlemode: 0.65 to 260 |
Typical real-time refresh (Hz) |
2 |
4 |
Memory capacity |
500 traces |
500 traces |
Measurement time |
User-defined |
User-defined |
Stable source output power (dBm) |
–9 |
Multimode: –1.5 Singlemode: -6.5 |
Visual fault locator (optional) |
Laser, 650 nm ± 10 nm CW Typical Pout in 62.5/125 μm: 3 dBm (2 mW) |
Laser, 650 nm ± 10 nm |
