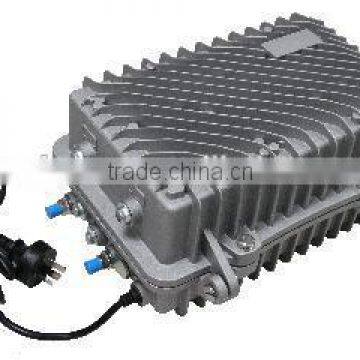

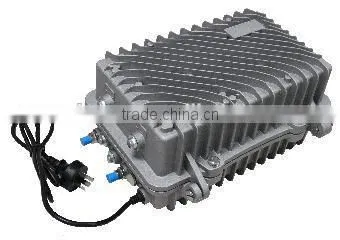

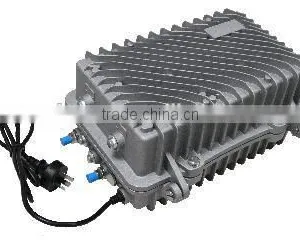

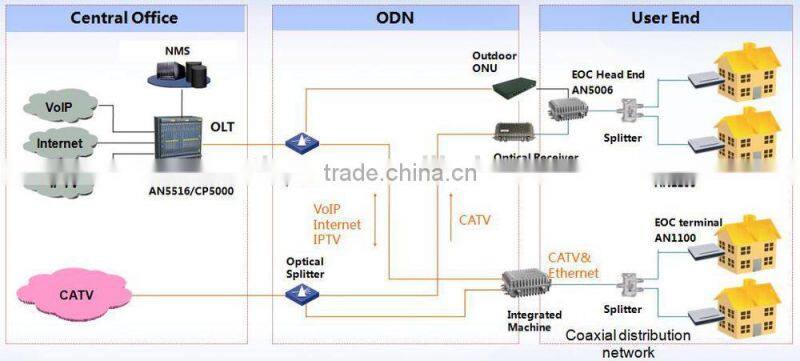

TINCAM CATV Fiber System ONU EOC MASTER Head End

Descriptions

AN5006-12-B02-M220

AN5006-12-B02-M60

Interface

8*RF ports(4-in, 4-out),1*PON port+1*GE Ethernet port, 4*EOC module slots

EOC module

4 slots

RF port type

The metric F head female

RF output impedance

75Ω

Power supply

220VAC

60VAC

Power consumption

<25W

PON port parameter

Comply with IEEE802.3ah,uplink/downlink transmission speed 1Gbps,support DBA, auto-register ONU and OLT

RF occupancy

7.5~65MHz

Chipset

Head end: AR7410 terminal: : AR7411

RF output consumption

105-115dBuv

RF receiver sensitivity

<65dBuV

Transmission distance

About 700M(Coaxial cable)

Modulation model

OFDM 1024/256/64/16/8-QAM, QPSK, BPSK ROBO

Support based on port,VLAN,VLAN+MAC,port+MAC,flow traffic mirroring, support remote mirroring

Nominal bandwidth per channel

57.5MHz

MAC layer operation mode

CSMA/CA

Multicast

Multicast group:16

Encryption

Bidirectional 128-bit AES

NM

Support SNMP,GUI,

Operation environment

Operation temperature:-20°C~55°C  Humidity;20%~85% (Non-condensing)

Store temperature:-10°C~70°C;10%~90%(Non-condensing)

Dimension (W×D×H)

316*220*162mm

Weight

5.5kg
