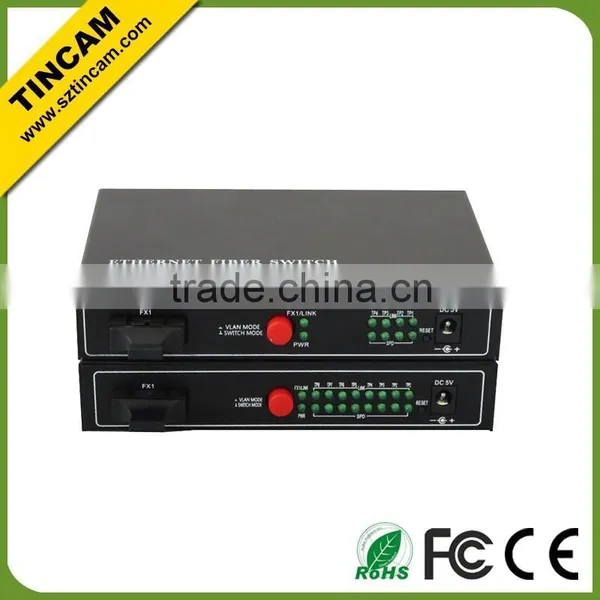

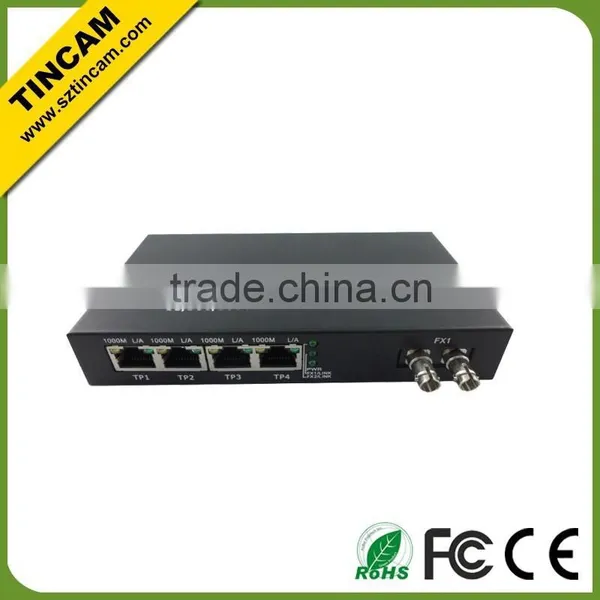

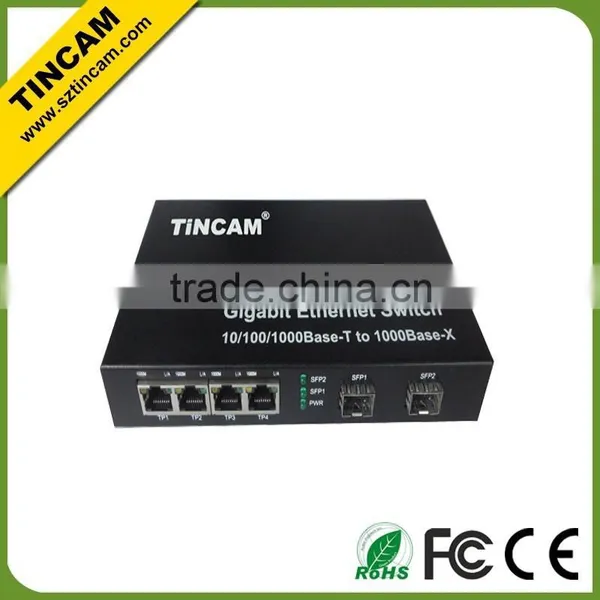

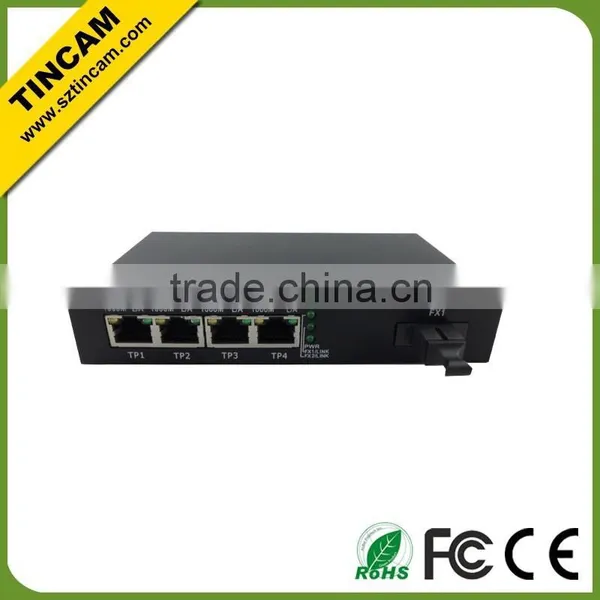

4 ports and 2 SFP ports Gigabit ethernet optical fiber switch
DESCRIPTION
The TBC3724 Smart Switch provides 4 10/100/1000M ports,one independent extension slot supporting 1 Port 1000Base-Fx fiber module which can extend the network radii to 60km. The TBC-3724 supports many smart configuration such as Port VLAN, Tag VLAN, Port Enable/Disable, MAC Address Binding. Featuring high-performance, easy to use and competitive price, the TBC-3724 is an ideal solution for work-group and smart district.
FEATURES
n Support IEEE802.3, IEEE802.3u
n 10/100/1000Mbps Auto-Negotiation
n 4 10/100/1000Mbps RJ45 ports supporting Auto MDI/MDIX
n 2 Port 1000Base-Fx fiber module
n Support Port VLAN or IEEE802.1Q Tag VLAN
n Support Trunk, up to 1 Trunk group
n Support Port Priority
n Support Port Enable/Disable
n Support Broad storm Control
n Desktop Steel case
n External power supply
TECHINCAL SPECIFICATIONS
Standard Protocol |
IEEE 802.3 10Base-T |
||
IEEE 802.3u 100Base-TX | |||
IEEE 802.3ab 1000Base-T | |||
IEEE802.3z 1000Base-SX/LX | |||
Band Width |
RJ45 Port: 10/100/1000Mbps |
Optical Port: 1.25G |
|
Operation Mode |
Full /Half duplex mode |
||
Connectors |
UTP: 4 RJ-45 |
Fiber connector: SC/ST/FC/LC |
|
Operation Mode |
Full /Half duplex mode |
||
Reset port |
Restart |
||
console port |
For further setting |
||
Working mode |
VLAN MODE or SWITCH MODE |
||
LED Indicators |
PWR, FLINK,LINK 1X,2X,3X,4X; SPD 1X,2X,3X,4X |
||
Power Supply |
External |
AC110-250V/50Hz |
|
DC -32~-72V | |||
Power Consumption |
≤5W |
||
Environmental Parameters |
Work Temperature |
0℃~50℃ (32 °F ~ 122 °F ) |
|
Storage Temperature |
-40℃~70℃ (-40 °F ~ 158 °F ) |
||
Humidity |
5%~90% non-condensing |
||
TP Cable |
Cat5 UTP cable (the max distance up to 100m) |
||
Fiber Cable |
8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -120km) |
||
50/125, 62. 5/125μm(the max distance up to 2km or 5km) | |||
MTBF (Hours) |
>50000 |
||
Dimensions(mm) |
External power supply |
155mm*120mm*27mm |
|
Gross Weight |
External power supply |
0.5kg |
|
Emission/Safety |
FCC Part 15 , Class A, RoHS and CE Mark |
||
TBC-3724-D20-SC-LVAN |
Single mode ,dual fiber, 20km,LC VLAN |
TBC-3724-D20-SC-QLVAN |
Single mode ,dual fiber, 20km,LC QVLAN |
TBC-3724-S20-SC-LVAN |
Single mode ,Single fiber, 20km,LC VLAN |
TBC-3724-S20-SC-QLVAN |
Single mode ,Single fiber, 20km,LC QVL |
