KUNBO Industrial Restaurant Stainless Steel Food Mixing Tank Mixer
US$ 600 - 7,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
KUNBO
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KUNBO 200L Small Food Processing Steam Jacket KettleUS$ 600 - 3,000MOQ: 1 Set -
KUNBO 100-1000L Food Processing Cooking Double Jacket Steam Jacketed KettleUS$ 600 - 3,000MOQ: 1 Set
-
Mixing TankNegotiableMOQ: 1 Piece
-
Electric Heating Jacketed KettleNegotiableMOQ: 1 Piece
-
Mirror Polish Mixing Tank With Side MixerNegotiableMOQ: 1 Piece
Condition
New
Place of Origin
Zhejiang, China
Brand Name
KUNBO
Model Number
KUNBO-MT-1
Processing Types
Juice
Voltage
110-380v
Power(W)
According to your requirement
Weight
dfferent design, different weight
Dimension(L*W*H)
Different design, different size
Certification
B&V; CE
Warranty
2 years
After-sales Service Provided
No overseas service provided

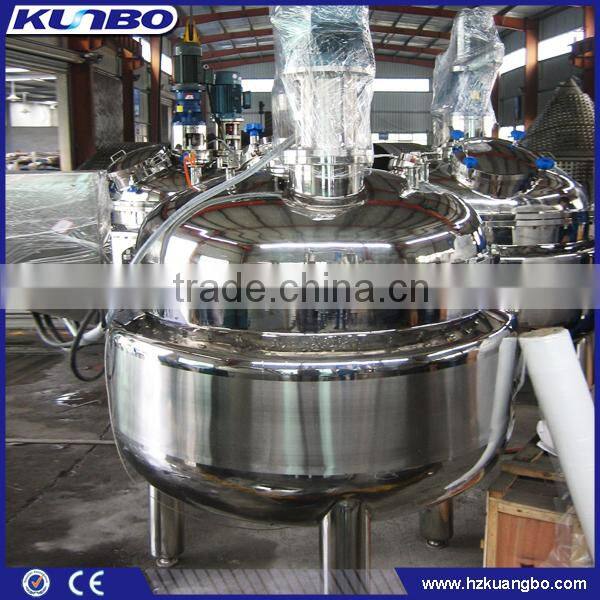

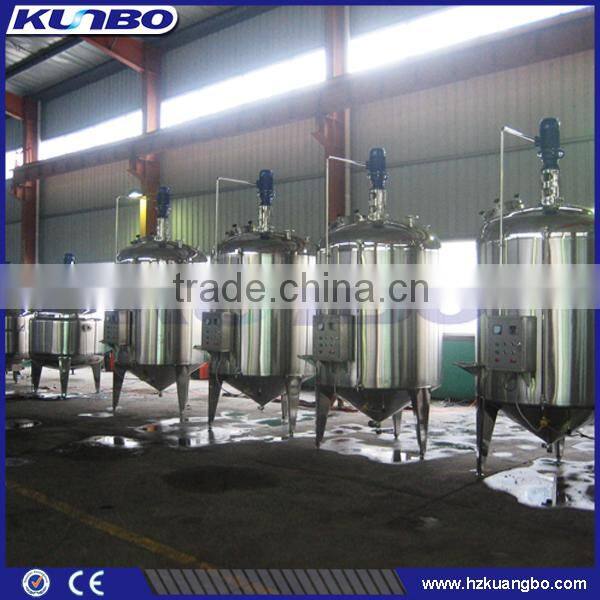

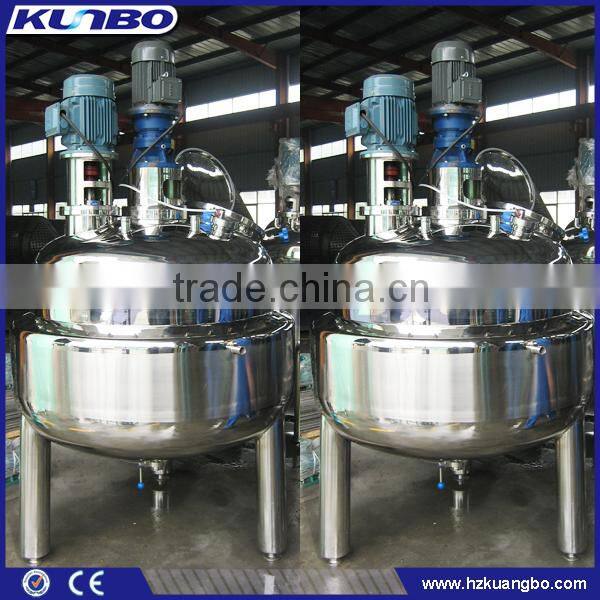

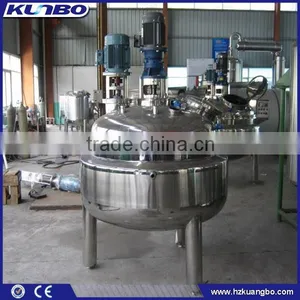

Industrial Restaurant Stainless Steel Food Mixing Tank Mixer
| Mixing Tank with Side Mixer | |

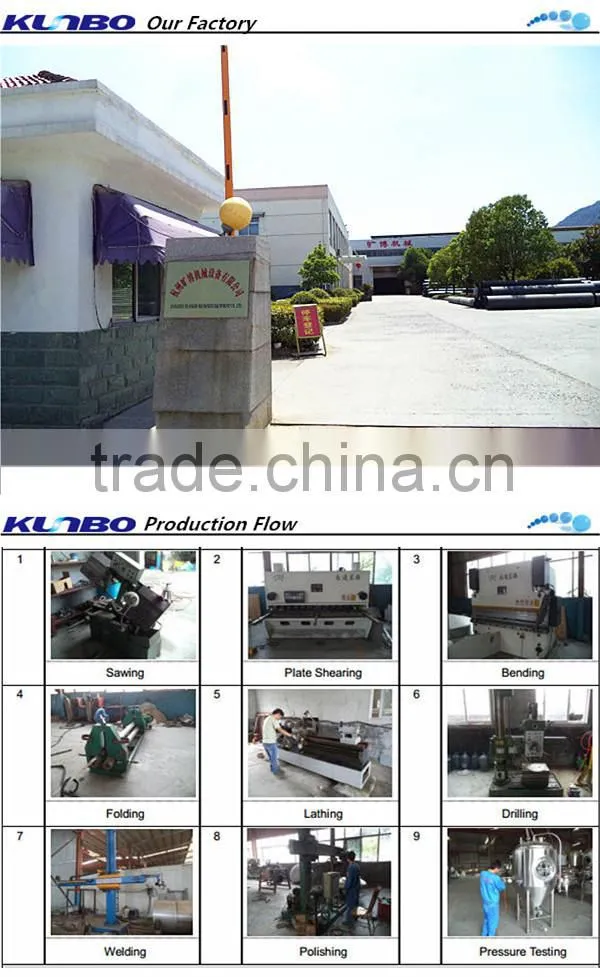

| Company introducation | We Kuangbo is a production enterprise of pharmaceutical, dairy, food and beer-making equipment, alongside biological engineering, chemical containers, and bespoke products. Our products are widely used in beer production, pharmaceuticals, beverage industries, biotechnology and other fields. |
| Usage | It is widely used for liquid-liquid mixing and liquid storing. It applies in food, beverage industry, phatmacy and chemical industry. |
| Material | Stainless Steel 304 or 316L |
| Technology & Design | 1. Made of three-layer with whole jacket and insulation with PU. |
| 2. It is heated by electric element, there is a hopper at the side for adding water into jacket. | |
| 3. Dish top and bottom, cylinder body. Top is connected by flange for easy open. | |
| 4. As to polish, interior layer and exterior layer all adopts 3A mirror polish. | |
| 5. As to transition of interior, we will adopt arc to make sure that there is no dead corner of sanitation. | |
| 6. The speed of impeller is range from 0 RPM to 300RPM. | |
| 7. There is a control panel together with the tank for controlling impeller speed, motor on-off, conductive level switch controlling, electric valve controlling, electric element on-off. | |
| 8. Legs with wheel or with adjustable feet is up to you. | |
| Configuration | Outlet, Siemens motor, spraying ball, manhole, temperature probe, motor, impeller, water inlet and outlet, legs (wheel or adjustable feet ) |
| Volume | 100-10000L |
| Advantage | 1.We also can design the configuration details as your requirements |
| 2.Competitive price and also higher quality tank. | |
| Minimum order | One unit |
| Payment term | T/T or L/C |
| Package | Export standard package |
| Market | At home and abroad |
| Mixing Tank Technical Parameter | ||||||
| Working Volume (L) | Dimension of Tank (D*H) mm | Total Height (mm) | Dia of inlet & outlet (mm) | PU Insulation (mm) | Motor Power (kw) | Mixing Speed (r/min) |
| 500 | 800*800 | 1700 | 38 | 50 | 0.75 | ABB/Siemens 35-150 RPM |
| 800 | 900*1200 | 2000 | 38 | 50 | 0.75 | |
| 1000 | 1100*1000 | 2400 | 38 | 50 | 1.1 | |
| 2000 | 1200*1500 | 3000 | 38 | 50 | 1.5 | |
| 3000 | 1450*1500 | 3150 | 51 | 50 | 1.5 | |
| 4000 | 1550*1800 | 3500 | 51 | 50 | 2.2 | |
| 5000 | 1600*2000 | 3850 | 51 | 50 | 2.2 | |
| 6000 | 1700*2200 | 4000 | 51 | 50 | 3 | |
FAQ:
1. Can your brewing equipment make both lager and ale?
A: Yes, our beer brewing equipment can make both lager and ale.
2. How to achieve temperature control?
A: The PLC or digital dispalyer could control the temperature by connecting with the PT 100 sensor.
The brewing tanks with rock wool to keep warm, the fermenters and bright beer tank with PU as
cooling jacket to keep cool.
3. Is it possible to supply installation in our country?
A: Yes, we could supply our clients over sea service and direct the installation and brewing.
