10/100M,20KM, Media convert, Fiber Ethernet Converter with 6 RJ45 Ports;Optical media converter
Features
1.Providing four independent 10/100Mbps adaptive switching twisted pair ports which the backup of electrical ports and the access of multiple users
2.Supporting full-duplex and half-duplex transmission modes and capable of auto negotiation;
3.Supporting Supporting auto-sense of MDI/MDI-X
4.Supporting multiple types of fiber ports such as dual-fiber multi-mode,dual-fiber single-mode and single-fiber single-mode, expanding the requirements of users;
Standard
IEEE802.3 ETHERNET STANDARD
IEEE802.3u FAST ETHERNET STANDARD
IEEE802.3x Flow control
Why Media Converter:
Media Converter extends the transmission distance of a network from 100m over copper wires to 120 Km, to implement data transmission between the optical and electrical network connection mediums. It is a economical solution to achieve long distance transmission base on current status.
Specification:
Standard Protocol |
IEEE802.3 |
|
IEEE802.3u 100BaseTX | ||
IEEE802.3ab 1000BaseT | ||
EEE802.3z 1000BaseX | ||
IEEE802.3x full duplex on 10BaseT,100BaseTX,1000BaseT | ||
IEEE802.3ah1000Base-FX | ||
Transmission speed |
10M/100M auto-negotiation |
|
Transmission mode |
Full-duplex and semi duplex(auto-negotiation) |
|
Conversion mode |
Media conversion,storage transmission,direct transmission |
|
Interface |
UTP: RJ-45 |
Fiber connector: SC/ST/FC |
Twisted-pair |
Cat5 UTP cable (the max distance up to 100m) |
|
Fiber Cable |
8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -100km) |
|
50/125, 62. 5/125μm(the max distance up to 500m) | ||
Wavelength |
Multi Mode: 850nm |
Single Mode: 1310/1550nm |
Conversion mode |
Media conversion,storage transmission,direct transmission |
|
MAC address |
1K |
|
Buffer space |
288KB |
|
Packet length |
Storage transmission:2046Bytes,straight-through,infinite. |
|
Time-delay |
9.6us |
|
Bit error rate |
<1/1000000000 |
|
MTBF |
80,000 hours |
|
Power supply |

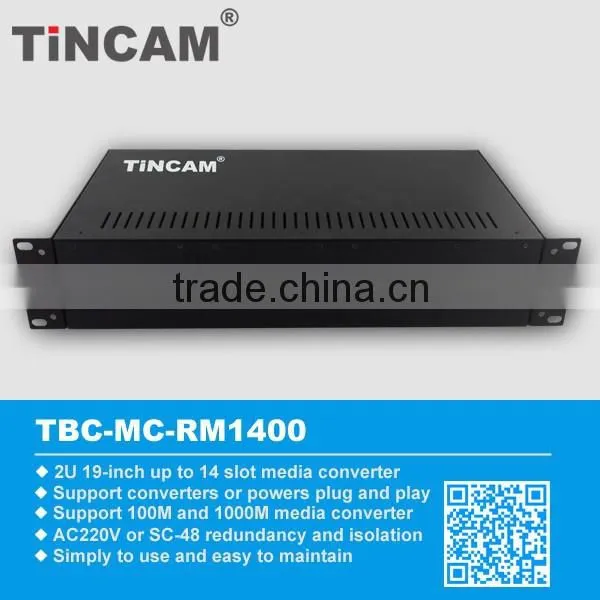

AC100~250V on media converter rack mounts |
|
Power dissipation |
<2.5W |
|
Operating temperature |
0~50 Celsius degree |
|
Storage temperature |
-20~70 Celsius degree |
|
Humidity |
5%~90% (no condensation) |
|
Dimensions(mm) |
115 * 77 * 26mm (L*W*H)(card without metal box) |
|
