Product Details
Place of Origin: | Guangdong, China | Brand Name: | TINCAM | Model Number: | TBC-3742 |
Product Description

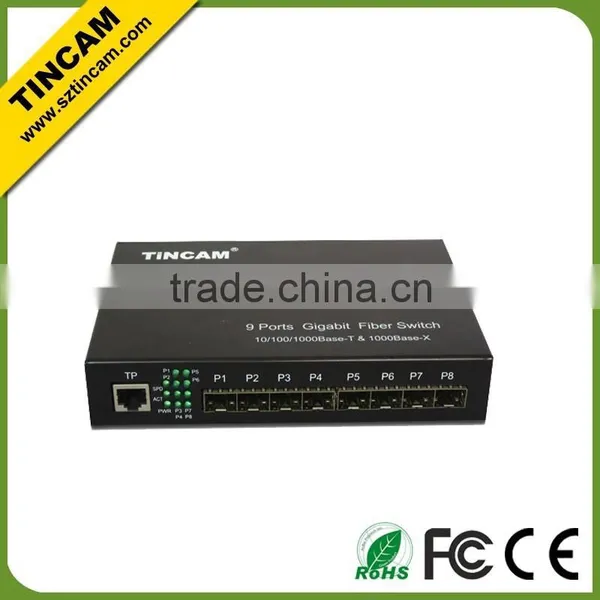

rack mount fiber media converter switch
DESCRIPTION
TBC-3742 Gigabit Ethernet Switch with
two10/100/1000M UTP port sand four fiber ports
Or four 1000M SFP sockets(The end users can use
different SFP Module according to his requirement,for example:1000Base-T,1000Base-SX,1000Base-LX etc.
The product is possessed of stable performance,excellent quality and reasonable price because of adopting latest
IC from USA and high quality of transceivers.It is applicable to use in small patterns of Optical Fiber Ethernet.
FEATURES
n 2 RJ45 ports and 4 LC fiber ports or 4 SFP sockets,
n It can convert Optical Electric Ethernet signals between 10/100/1000M UTP ports and 1000M optical fiber ports and switch Ethernet signals between port and port.
n Auto negotiation function supports UTP ports to auto 10/100/1000M and Full Duplex/Half Duplex.
n Broadcast storm protection
n Supports VLAN and QoS
n Supports STP,IPV6,IPV4
n Supports the max1536 bytes frame
n Small power consumption(3W),low heat,good stability
TECHINCAL SPECIFICATIONS
Standard Protocol | IEEE 802.3 10Base-T | |||
IEEE 802.3u 100Base-TX | ||||
IEEE 802.3ab 1000Base-T | ||||
IEEE802.3z 1000Base-SX/LX | ||||
Band Width | RJ 45 Port: 10/100/1000Mbps | Optical Port: 1.25Gbps | ||
Operation Mode | Full /Half duplex mode | |||
Connectors | UTP: 2 RJ-45 | Fiber connector: SC/LC | ||
Operation Mode | Full /Half duplex mode | |||
Power Supply | External | AC110-250V/50Hz | ||
DC 5V 2A | ||||
Power Consumption | ≤5W | |||
Environmental Parameters | Work Temperature | 0℃~50℃ (32 °F ~ 122 °F ) | ||
Storage Temperature | -40℃~70℃ (-40 °F ~ 158 °F ) | |||
Humidity | 5%~90% non-condensing | |||
TP Cable | Cat5 UTP cable (the max distance up to 100m) | |||
Fiber Cable | 8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -120km) | |||
50/125, 62. 5/125μm(the max distance up to 2km or 5km) | ||||
MTBF (Hours) | >50000 | |||
Dimensions(mm) | External power supply | 155mm*90mm*27mm | ||
Gross Weight | External power supply | 0.5kg | ||
Emission/Safety | FCC Part 15 , Class A, RoHS and CE Mark |
TBC-3742-D20-SC | 2 X10/100/1000M with 4 X1000M fiber ports dual fiber SC 20KM |
TBC-3742-S20-SFP | 2 X10/100/1000M with 4 X1000M fiber ports dual fiber LC 20KM |
TBC-3742-D20-SFP | 2 X10/100/1000M with 4 X 1000M fiber ports 4 SFP sockets 20KM |
