Gigabit Ethernet optical Fiber Switch with SFP fiber port
DESCRIPTION
The TBC3724 Smart Switch provides 4 10/100/1000M ports,one independent extension slot supporting 1 Port 1000Base-Fx fiber module which can extend the network radii to 60km. The TBC-3724 supports many smart configuration such as Port VLAN, Tag VLAN, Port Enable/Disable, MAC Address Binding. Featuring high-performance, easy to use and competitive price, the TBC-3724 is an ideal solution for work-group and smart district.
FEATURES
n Support IEEE802.3, IEEE802.3u
n 10/100/1000Mbps Auto-Negotiation
n 4 10/100/1000Mbps RJ45 ports supporting Auto MDI/MDIX
n 2 Port 1000Base-Fx fiber module
n Support Port VLAN or IEEE802.1Q Tag VLAN
n Support Trunk, up to 1 Trunk group
n Support Port Priority
n Support Port Enable/Disable
n Support Broad storm Control
n Desktop Steel case
n External power supply
TECHINCAL SPECIFICATIONS
Standard Protocol | IEEE 802.3 10Base-T | ||
IEEE 802.3u 100Base-TX | |||
IEEE 802.3ab 1000Base-T | |||
IEEE802.3z 1000Base-SX/LX | |||
Band Width | RJ45 Port: 10/100/1000Mbps | Optical Port: 1.25G | |
Operation Mode | Full /Half duplex mode | ||
Connectors | UTP: 4 RJ-45 | Fiber connector: SC/ST/FC/LC | |
Operation Mode | Full /Half duplex mode | ||
Reset port | Restart | ||
console port | For further setting | ||
Working mode | VLAN MODE or SWITCH MODE | ||
LED Indicators | PWR, FLINK,LINK 1X,2X,3X,4X; SPD 1X,2X,3X,4X | ||
Power Supply | External | AC110-250V/50Hz | |
DC -32~-72V | |||
Power Consumption | ≤5W | ||
Environmental Parameters | Work Temperature | 0℃~50℃ (32 °F ~ 122 °F ) | |
Storage Temperature | -40℃~70℃ (-40 °F ~ 158 °F ) | ||
Humidity | 5%~90% non-condensing | ||
TP Cable | Cat5 UTP cable (the max distance up to 100m) | ||
Fiber Cable | 8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -120km) | ||
50/125, 62. 5/125μm(the max distance up to 2km or 5km) | |||
MTBF (Hours) | >50000 | ||
Dimensions(mm) | External power supply | 155mm*120mm*27mm | |
Gross Weight | External power supply | 0.5kg | |

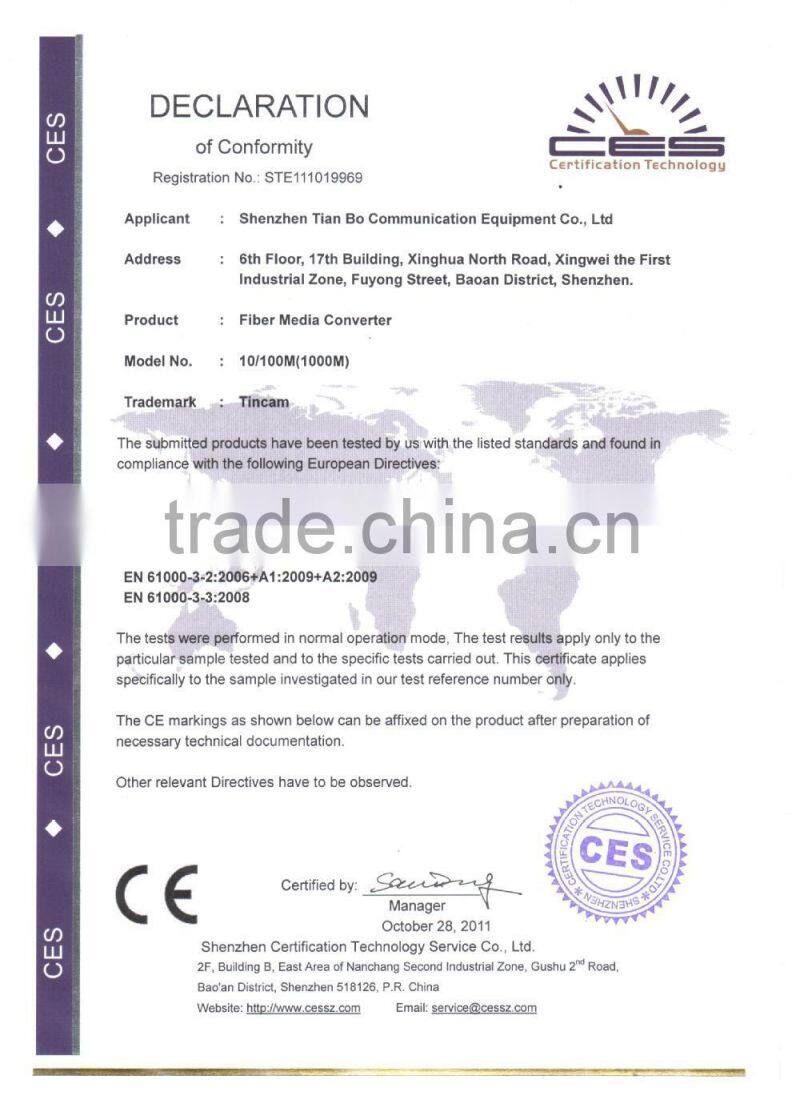

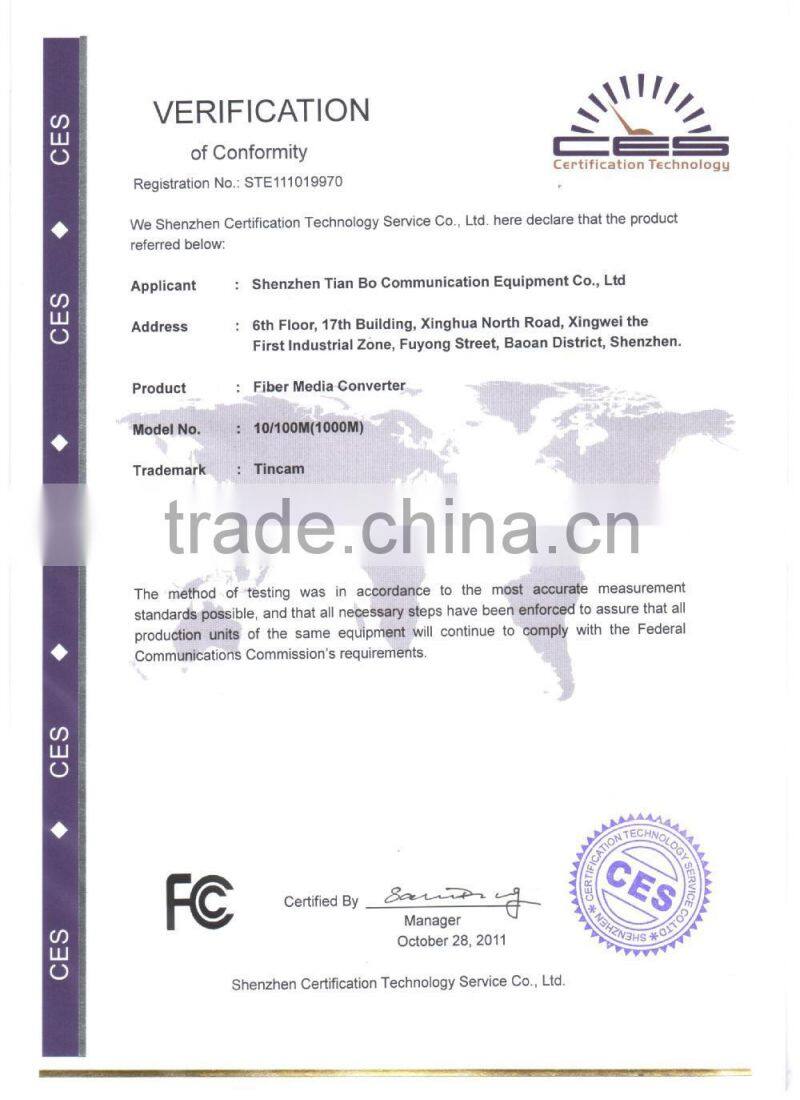

Emission/Safety | FCC Part 15 , Class A, RoHS and CE Mark | ||
TBC-3724-D20-SC-LVAN | Single mode ,dual fiber, 20km,LC VLAN |
TBC-3724-D20-SC-QLVAN | Single mode ,dual fiber, 20km,LC QVLAN |
TBC-3724-S20-SC-LVAN | Single mode ,Single fiber, 20km,LC VLAN |
TBC-3724-S20-SC-QLVAN | Single mode ,Single fiber, 20km,LC QVL |
