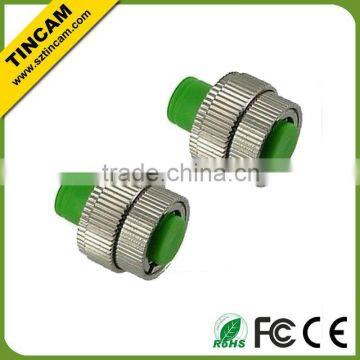

FC APC SM Variable Optical Fiber Attenuator

FOB Price

Negotiable / Piece

10 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Tincam
Model Number	FC APC SM Variable Optical Fiber Attenuator

FC APC SM Variable Optical Fiber Attenuator

FEATURES

n Metal ion doped fiber

n Attenuation levels ranging from 1 dB to 30 dB

n Low back reflection

n High power endurance

n Maximum stability, reliability and flat spectral response

n 100% IL, RL and visual inspection tested

n Easy to connect/disconnect (Push-Pull)

n High mechanical resistance

APPLICATION

n Telecommunication

n Local area network

n CATV,FTTH

n Fiber optic sensors

n EDFA loop tests and measurements

n Optical transmission system

n Testing instruments

TECHINCAL SPECIFICATIONS

Parameters	FC,SC, LC, ST, MU, DIN, E2000, MTRJ, Hybrid
Attenuation Range	0dB ~ 30dB
Operation Wavelength	SM: 1260-600nm, or 1310nm/1550nm
Operation Wavelength	MM:850nm, 1310nm
Return Loss	≤50dB (PC)
	≤55dB (UPC)
	≤65dB (APC)
Attenuation Accuracy	±0.5dB (1 ~ 10 dB)
Attenuation Accuracy	±10% of Attenuation Value (11~30 dB)
Polarization Dependent Loss (PDL)	≤0.2dB
Exchangeability	≤0.2dB
Repeatability	≤0.2dB
Durability	≤0.2dB Typical 1000 matings
Maximum Optical Input Power	200mW
Operating Temperature	-20 ~ +75°C
Storage Temperature	-40 ~ +85°C

ORDER INFORMATION

TBC		—	FC	/	PC	—	SM	—	SX	—	5	—	1310
0			1		2		3		4		5		6

0	Brand name
1	Connector:: LC, SC, FC, ST, MU, etc
2	Lapping Way : PC&APC
3	Cable Type SM(9/125μm) ,MM(50/125μm & 62.5/125μm)
4	Fiber Number SX(Simplex) or DX(Duplex)
5	Attenuation : 1dB, 2dB, 5dB, 7dB,10dB, 15dB, 20dB 30dB or others
6	Wavelength: 1310nm & 1550nm or 850
7
