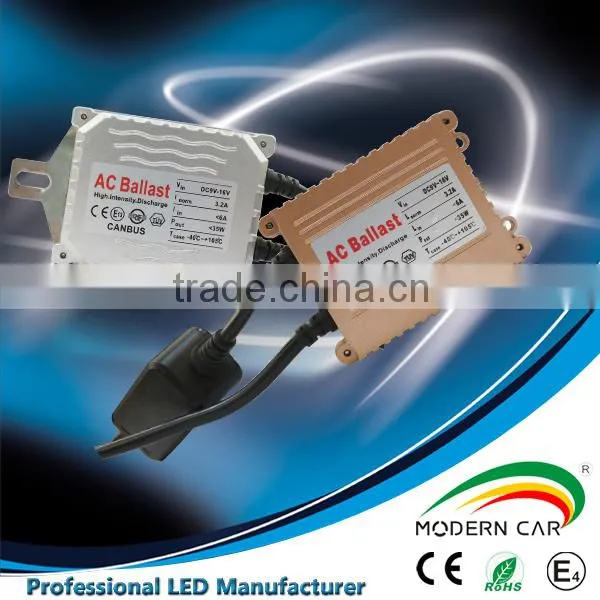

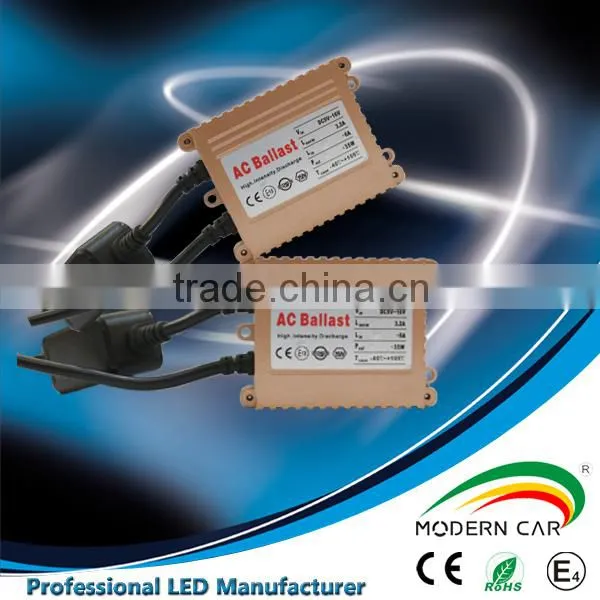

hot sale MC Xenon HID canbus ballast 35W 12V AC electronic ballast for hid 35w bulbs
Features:
1. Intelligent processing functions
General analog constant power ballast multiplier control on the circuit,When the external characteristics of bulb can't keep the same, and the internal resistance of the lamp tube leading to increased pressure, the voltage rises to a certain extent, the bulb will automatically turn off.
2. Constant power adaptive performance
Xenon lamp is rated at 85v + -17v, some ballast factory can only to with specific manufacturers lamp, if change to another type o lamp, the output power difference 8-9w, can easily damage lamps.The digital models can work around lamp voltage AC 60-150V, constant power, no need to make any adjustments, will be able to adapt to the external characteristics of different manufacturers bulb, which can expand the bulb lifespan.
3. Wide working voltage range
Digital models ballast can work in the 9-17 V wide voltage range, can work and suitable for different brands around the world.
4. Low Luminance dissipation
5.canbus ballast,fit for the luxury car,like BMW,BENZ,etc
Specifications:
| Detail Parameters | |||
| Item | Full digital ballast Parameter | Remark | |
| Electronic Parameter | Efficiency | ≥83% | |
| Output Power | 34-36W | ||
| Working Voltage | 9V-17V | ||
| Max Input Current | 4.0-6.0A | (12V Start-up) | |
| Stable Current | 3.4-3.6A | (12V Input Voltage) | |
| Bulb Voltage | 85V±17V | ||
| Bulb Flexible Voltage | <5V | ||
| Test under high temperature--85℃ | Work normally,Current:3.3-3.6A | Low/High Temperature Alternating Chamber | |
| Bulb Voltage Wave form | Square Wave | ||
| Bulb Working Frequency | 250HZ±1% | ||
| Max Output Current | <2.3A | ||
| Min Output Current | <0.25A | ||
| Discharge Protection Voltage | 400V | ||
| Ignition Voltage | 18KV-23KV | ||
| Stability Time | 20-40S | Cool Bulb | |
| Working Temperature | -40℃--105℃ | ||
| Saving Temperature | -40℃--125℃ | ||
| Protect Performance | Bulb Discharge Protecting | Yes | |
| Bulb Short Circuit Protecting | Yes | ||
| Input mixed Collect Protecting | Yes | ||
| Input Low Voltage Protecting | <8V | ||
| Input High Voltage Protecting | ≥18.5V | ||
| Dimension | Length | 92.1mm | |
| Width | 67.0mm | ||
| Height | 21.7mm | |
|
