Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > Wrought Iron Machine/Blacksmiths ToolsMetal End Forming Machine,Fishtails Rolling Machine,Mateiral Hot-Treated Firstly Quality Choice

Wrought Iron Machine/Blacksmiths ToolsMetal End Forming Machine,Fishtails Rolling Machine,Mateiral Hot-Treated Firstly Quality Choice

Wrought Iron Machine/Blacksmiths ToolsMetal End Forming Machine,Fishtails Rolling Machine,Mateiral Hot-Treated Firstly Quality Choice thumbnail-1
Wrought Iron Machine/Blacksmiths ToolsMetal End Forming Machine,Fishtails Rolling Machine,Mateiral Hot-Treated Firstly Quality Choice thumbnail-2
Wrought Iron Machine/Blacksmiths ToolsMetal End Forming Machine,Fishtails Rolling Machine,Mateiral Hot-Treated Firstly Quality Choice photo-1
Wrought Iron Machine/Blacksmiths ToolsMetal End Forming Machine,Fishtails Rolling Machine,Mateiral Hot-Treated Firstly Quality Choice photo-2
US$ 890 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
NOLENS
Contact Supplier Request Quote Chat Now
Shijiazhuang Nolens Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG TIANJIN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Hebei, China
Brand Name NOLENS
Model Number NL-F3
Machine Type Coiling Bending Machine
Raw Material Steel Bar
Material / Metal Processed Other, Iron,Steel
Power Other, Motor
Automation Other, Program Controlled
Extra Services End Forming
Certification Other, SGS
After-sales Service Provided Engineers available to service machinery overseas
Product Description

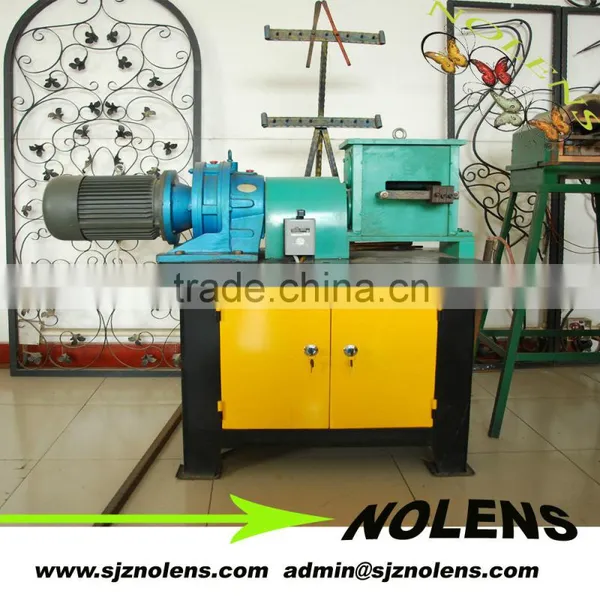

NL-F3Metal Craft  End Forming Machine is the regeration products of NL-F2.This machine adopts the star to put the line needle wheel moderating machine,is furnished with 2.2 kilowatts and 6 grades of electrical machineries,operate the way and enter the material device after improving the transmision,has designed and processed and made a reservation to fit,it is reliable that easy and simple to run,sane while making machinery work,horsepower services as over,rotational speed is appropriate,it is of high quality and operating simple and direct fast,novel best result with complete function to receive the machinery products with hign efficiency.

Technical Data

Technical parameter of NL-F3 Metal Craft End Forming Machine
Model NL-F3


Max Work Ability 		  Flat iron       ≤10x60mm
Square steel       ≤16mm*16mm
Round Steel      ≤16mm
Enclosed Dies
three kinds moulds free with the machine
Motor Performance  Power: 2.2 KW     Voltage: 220V / 380V / 415V / 440V
Main features

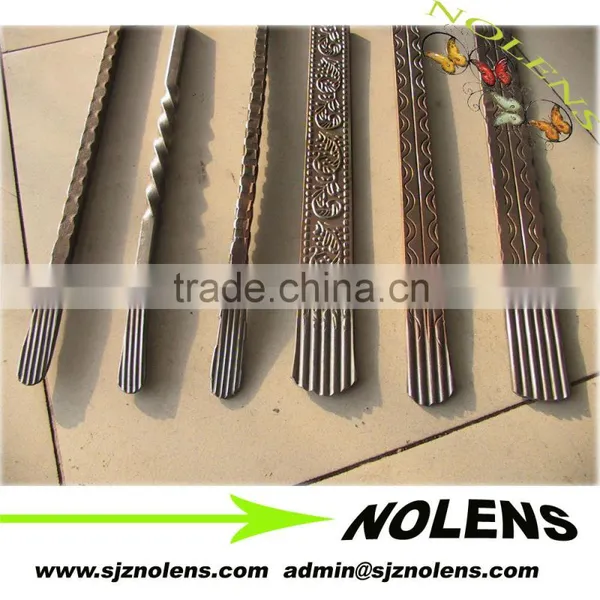

1It is not necessary to beat flat the bevel edge,and it can realize at one time moulding.The moulding material end becomes wider and thinner with thickness no more than 2 mm

2. it used cyclonical two-speed reducer to large the distance,it adopts special way for the transmission beetween the gear box and working case,ensuing smooth and reliable mechanical operation

3.The material entrance clamp apparatus has the flowing advantage being adjustable,flat and straight guide and the finished fishtail veining being straight

4.There are three designs on one set rollers,smooth,thin vein,coarse vein.
  Packing Dimension 11650x560x1100mm(LXWXH)
Weight




                                       360KGS

Wrought Iron Machine/Blacksmiths ToolsMetal End Forming Machine,Fishtails Rolling Machine,Mateiral Hot-Treated Firstly Wrought Iron Machine/Blacksmiths ToolsMetal End Forming Machine,Fishtails Rolling Machine,Mateiral Hot-Treated Firstly



Wrought Iron Machine/Blacksmiths ToolsMetal End Forming Machine,Fishtails Rolling Machine,Mateiral Hot-Treated FirstlyWrought Iron Machine/Blacksmiths ToolsMetal End Forming Machine,Fishtails Rolling Machine,Mateiral Hot-Treated FirstlyWrought Iron Machine/Blacksmiths ToolsMetal End Forming Machine,Fishtails Rolling Machine,Mateiral Hot-Treated FirstlyWrought Iron Machine/Blacksmiths ToolsMetal End Forming Machine,Fishtails Rolling Machine,Mateiral Hot-Treated FirstlyWrought Iron Machine/Blacksmiths ToolsMetal End Forming Machine,Fishtails Rolling Machine,Mateiral Hot-Treated Firstly
Packaging & Shipping

 PACKAGING  : FREE FUMIGATION WOODEN CASE

DELIVERY TIME: 7 DAYS AFTER RECEIVING THE DEPOSIT

Wrought Iron Machine/Blacksmiths ToolsMetal End Forming Machine,Fishtails Rolling Machine,Mateiral Hot-Treated Firstly

Wrought Iron Machine/Blacksmiths ToolsMetal End Forming Machine,Fishtails Rolling Machine,Mateiral Hot-Treated Firstly
Our Services



We are specialized in producing all kinds of wrought iron ornaments and wrought iron machines you'd like to get. The WROUGHT IRON MACHINE includes Cold rolling embossing machine, Program controlled pattern bender, program controlled twist and torsion machine, Hot roll fishtail mill and steel cutting machine Etc.   All kinds of  machines and wrought iron accessories are completely manufactured at NOLENS. Our products have been exported to USA, Australia, England, Russia, India, kenya, Malaysia,Romania and  etc. Quality and customer comes first is our service aim. Every machine with high strict quality control and Tested before delivery, any question about the machine's operation problems and maintenence in use will answer and solve within 24 hours. Welcome you to be our new client!

Company Information



NOLENS, is fastest growing manufacture and exporter  of large range of wrought iron in Art Products a-nd related Wrought Iron Equipment, Building Metal Decoration and developed quickly in the fields of Blacksmith Finished Products( Gate, Fence, flower Shelf, forged iron material,and so on)

FAQ



Q1: You are the trading cpmpany or factory?
We are professional factory runs more than 15 years.
Q2: How to ensure sending my goods in time?
Efficient Production ,Strict Q-C Dep.,Convenient Transportation or Shipment Schedule,Professional Management
Q3:How to Guarantee the quality of the goods?
Strict Q-C Dep. 100% Tested before Leaving factory.
Q4: How can i get my order?
We offer the following service for you:
1.FCL Container Loading shipping( about 20 tons),LCL( less than one container) by Sea Shipment
2. Express Mail by DHL or TNT(available for the samples order) Or  Air Freight by Customer's requests
