Technical Data

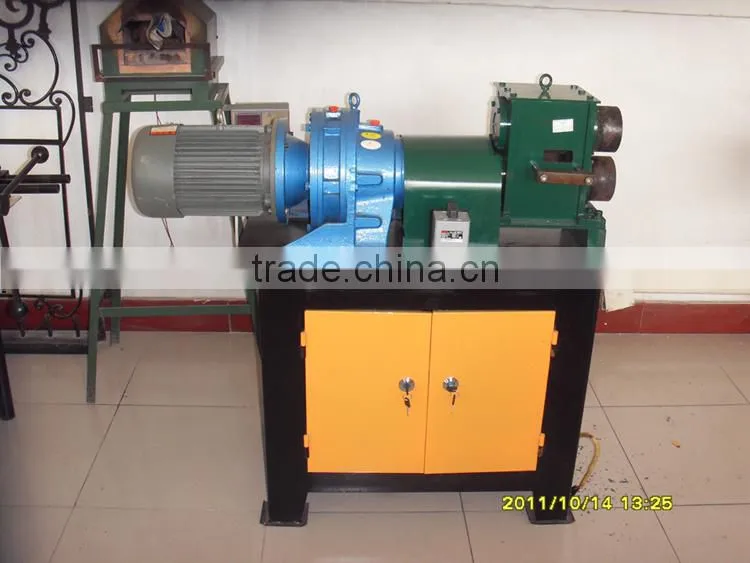

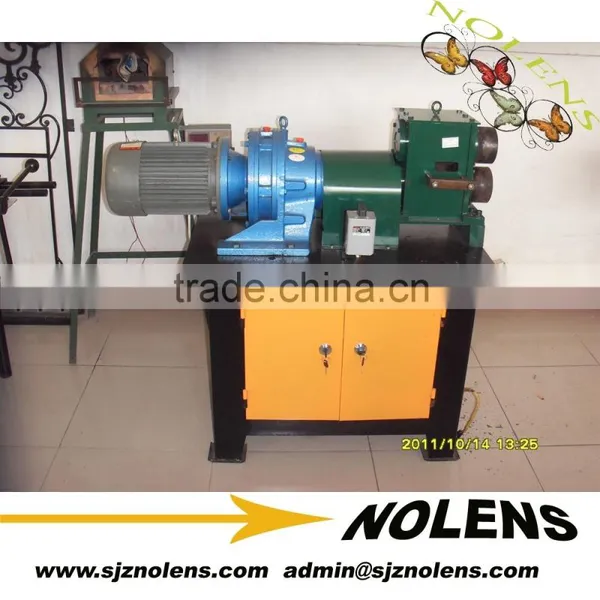

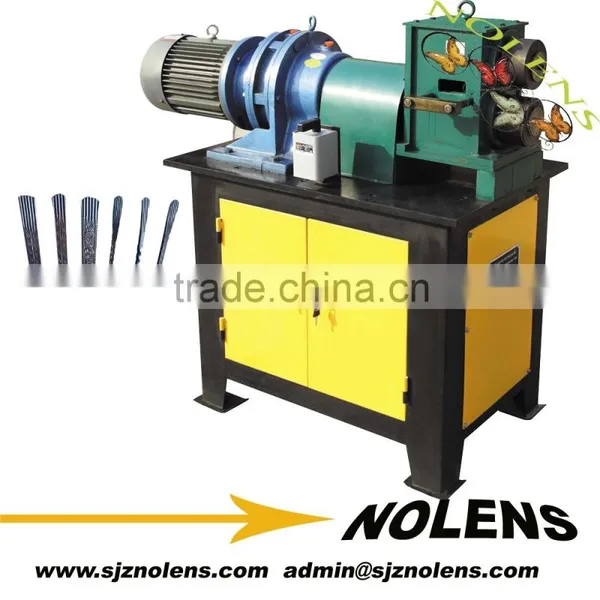

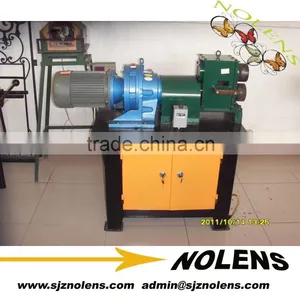

| Technical parameter of NL-F3 Metal Craft End Forming Machine | |||||
| Model | NL-F3 | ||||
|
Max Work Ability |
Flat iron | ≤10x60mm | |||
| Square steel | ≤16mm*16mm | ||||
| Round Steel | ≤16mm | ||||
| Enclosed Dies |
ONE moulds free with the machine |
||||
| Motor Performance | Power: 2.2 KW Voltage: 220V / 380V / 415V / 440V | ||||
| Main features |
1It is not necessary to beat flat the bevel edge,and it can realize at one time moulding.The moulding material end becomes wider and thinner with thickness no more than 2 mm 2. it used cyclonical two-speed reducer to large the distance,it adopts special way for the transmission beetween the gear box and working case,ensuing smooth and reliable mechanical operation 3.On the back holdup plate of the machine,there is a rolling device,we can accrord the production requirement select the rolling length localization size and achieve the optimum result. 4.When we process 12mm or more material,the flat roller added in outer side can make the square bar and round bar to be sharpe points 5. The main feature of the machine :the roll eccentricity is changed into a shaft eccentricity,the roller's working life is three times than others |
||||
| Packing Dimension | 1220x600x1250mm(LXWXH) | ||||
|
Weight |
330KGS |
||||
PACKAGING : FREE FUMIGATION WOODEN CASE
DELIVERY TIME: 7 DAYS AFTER RECEIVING THE DEPOSIT
We are specialized in producing all kinds of wrought iron ornaments and wrought iron machines you'd like to get. The WROUGHT IRON MACHINE includes Cold rolling embossing machine, Program controlled pattern bender, program controlled twist and torsion machine, Hot roll fishtail mill and steel cutting machine Etc. All kinds of machines and wrought iron accessories are completely manufactured at NOLENS. Our products have been exported to USA, Australia, England, Russia, India, kenya, Malaysia,Romania and etc. Quality and customer comes first is our service aim. Every machine with high strict quality control and Tested before delivery, any question about the machine's operation problems and maintenence in use will answer and solve within 24 hours. Welcome you to be our new client!
NOLENS, is fastest growing manufacture and exporter of large range of wrought iron in Art Products a-nd related Wrought Iron Equipment, Building Metal Decoration and developed quickly in the fields of Blacksmith Finished Products( Gate, Fence, flower Shelf, forged iron material,and so on)
