SunSir SS-C500D-01CB High Speed Direct Drive Flat Bed Interlock Industrial Sewing Machine
- NINGBO
- T/T
You May Like
-
SunSir SS-H202 High-speed Lockstitch Industrial Sewing Machine
-
SunSir SS-T1900DSS High-speed Electronic Bar-tacking Industrial Sewing Machine
-
SunSir SS-T352 High-speed Lockstitch Sewing Machine With Vertical Edge Trimmer
-
SunSir SS-W3810PL High Speed Direct Drive Chainstitch Industrial Sewing Machine
-
SunSir SS-D2252N-5 High Speed Double Needle Chainstitch Industrial Sewing Machine
-
SunSir SS-A398MX-D2 High Speed Direct Drive Computerized Lockstitch Industrial Sewing Machine
Product Details
| Condition | New | Type | Industrial Sewing Machine | |
| Place of Origin | Zhejiang, China | Brand Name | SunSir industrial sewing machine | |
| Model Number | SS-C500D-01CB | Stitch Formation | Other, Interlock stitch | |
| Mechanical Configuration | Flat-Bed | Max. Sewing Speed | 6000SPM | |
| Max. Sewing Thickness | 6.3mm | Overall Dimensions | 61.5*40.5*65cm | |
| Certification | ISO9001 |
Product Description
Specifications
1.direct drive industrial sewing machine2.Automatic supply system and oil-filter device
3.The extra wide stitch length
SunSir SS-C500D-01CB High speed direct drive flat bed interlock industrial sewing machine
Application
1.Suitable for knit wear, under wear T-shirt, for light and medium materials.
Features
1. This machine is used for seaming and enforcing two loth such as under ware etc,suitable for light material.
2. The stitch number is #607, but actually it equip 5 edle, the first left needle is without any thread, which is ust for loosen the looper thread, avoid the shrinking of the materials.
3.Needle bar transmission structure, adopt all-sealed ign, more safe and easier to keep clean.
4.Complete automatic supply system and oil-filter device, ensure the max sewing speed to be 6000r.p.m.
5.Some key parts are imported from Japan, which enhance he wear-resistance of the machine.
6.The extra wide stitch length of LS31016-01CBTD is hanged from 4.5mm into 7mm .
Remark: can be equipted with the direct drive equipment
pls equiped the rear puller, when sewing the blanket and super heavy materials. maximun speed at 4500 R.P.M for the big gauge, maximun speed at 5000R.P.M for the heavy materials.

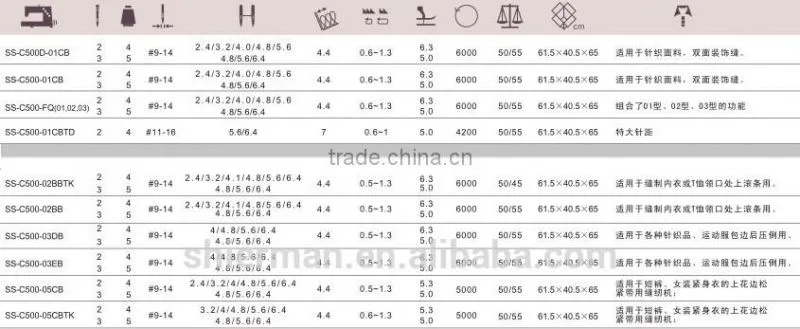

Specifications
| Brand Name | SunSir industrial sewing machine |
| Model | SS-C500D-01CB |
| Max.speed | 6000SPM |
| er foot lift | 6.3mm |
| No.of needles | 2 or 3 |
| Needle No. | #9-#14 |
| Needle gauge | 2.4-6.4mm |
| Stitch length | 4.4mm |
| Differential ratio | 0.6-1.3 |
| Overall dimensions | 61.5*40.5*65cm |
Attention: Please follow the safety instruction strictly before put the machine into operation.
1.Offer quality products with competitive price.
2. Pre-sale consultation service, parts and technical support.
3. Quality inspection, delivery time control, logistics and related documents arrangement service.
Our company is a private enterprise of production and marketing services,the company is mainly for clothing,shoes and hats,bags production enterprise with sewing,cutting,finishing and accessories.
