Help CenterDongfeng 135 Marine Generator Sets-250KW
Related Products
Specifications
Dongfeng 135 marine generator sets-250KWCCS,BV approved;Cooled by heat exchanger / radiator
Marathon single-shaft alternator

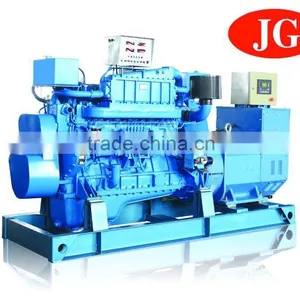

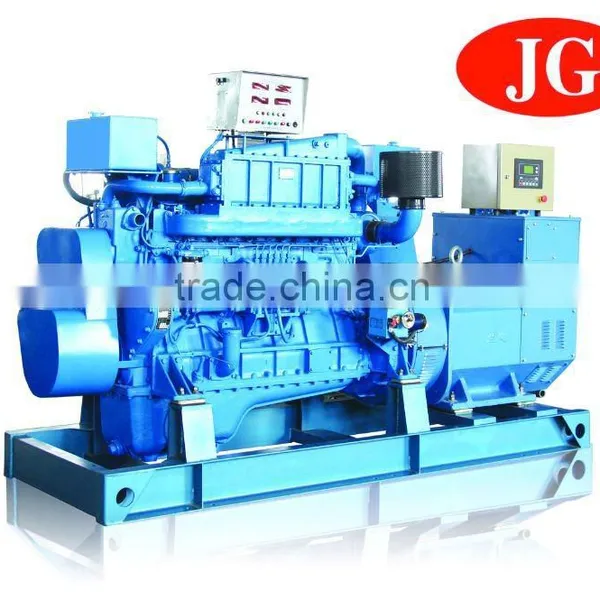

Dongfeng 135 marine generator sets-250KW
Genset Main Technical Data
Voltage |
HZ |
Phase |
P.F (COS) |
Output (KW) |
400/230V |
50 |
3 |
0.8 |
250 |
GB/T13032-1991;ISO9001:2008 Quality Control System;CCS approved
Shangchai Diesel Engine Technical Data
Engine Model |
G128ZLCaf3 |
Number of Cylinders |
6 cylinders in line |
Cycle |
4 stroke |
Aspiration |
Turbocharged and aftercooled |
Bore×Stroke |
135 x150 mm |
Displacement |
12.88 L |
Prime Power/Speed |
276KW/1500rpm |
Speed Governor |
electrical |
Cooling System |
By heat exchanger |
Fuel Consumption at 100% Load |
197 g/kw.h |
Starter Motor |
DC24V, |
Marathon Alternator (Standard) Technical Data
Alternator Model |
MP-H-250-4 |
Prime power |
250KW |
Frequency/speed |
50HZ/1500rpm |
Exciter type |
Brushless, Self-excited |
Power factor |
0.8 |
Insulation Grade |
H |
Protection Grade |
IP23 |
Phase / wire |
3 phase 4 wires |
