Right Choice!!Popular Type 12G/60" Fully Computerized Flat Sweater Knitting Machine With ISO9001 Standard
- 600 Set / Sets per Month
- Shanghai
- T/T
- YB-500 48-ingot-1 servo take-up
- Horizontal braiding machine servo-driven oil pump medical spindle rod
- Green house agro shade net making machine
- 3.5 Inch Automatic Sock Knitting Machine Flat Hosiery Knitter with One Year Warranty
- Flat Hosiery Knitter
- Lab Semi-automatic Computerized Flat Knitting Machine with Programmable Controller
Product Details
Condition: | New | Product Type: | Sweater | Type: | Jacquard |
Place of Origin: | Jiangsu, China | Brand Name: | Jianfeng | Model Number: | JF60-2S |
Knitting Style: | Flat | Knitting Method: | Double | Computerized: | Yes |
Weight: | 900kgs | Dimension(L*W*H): | 2780*1050*2010mm | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Knitting width:52" 60" 80"Gauge:7G,9G,10G,12G,14G,16G,3-5-7 multi-gauge
Packing:wooden case
Carriage is imported from Taiwan
Double system single carriage
MAIN PARAMETERS
Gauge | 3.5G,5G,7G,10G,12G,13G,14G,multi-gauge3-5-7G |
Knitting width | 52" 60" 72" |
Knitting speed | Controlled by AC servo motor with 64 sections speed optional, max 1.2m/s. The servo motor combines precise feedback control system with high-speed digital signal processor (DSP) to control IGBT to achieve accurate electric current output. |
Knitting system | double system |
Knitting function | Knit, miss, tuck, transfer, pointelle, intarsia, jacquard, hide, or apparent shaping and other regular patterns. |
Racking system | Controlled by AC servo motor racking within 2 inches and with fine micro adjustable function. |
Needle detection alarm device | Capable of all-dimensional needle detection alarming,a breakthrough compared to current simplistic side-to-side needle detection alarming systems. |
Encoder | Advanced encoder adopted. |
Transfer cam | Combined type transfer cam, both single and double system all can transfer separately or synchronously, also can transfer by one system, knitting by another, which will achieve high efficiency. |
Stitch density | Controlled by stepping motor, 24 sections density selectable, adjustable scope supported by subdivision technology: 0-650, the length of knitwear piece can be accurately controlled. |
Sinker system | Controlled by stepping motor, adjustable to different knitwear ,achieve various results of narrowing and widening |
Take down roller | Computerized, controlled by stepping motor,24 levels selection of tension with adjustable scope:0-100 |
Yarn feeder | 2x8 yarn feeders on both sides of 1 guide rail of 4, switchover on any position of needle bed (special intarsia yarn feeders optional). |
Protection system | The machine will automatically alarm if yarn-breaking, knots floating, rewind, end of knitting, fail of racking, needle jack crash, error programming occur, also with safety auto-lock protection device. |
Control system |
|
Network | High speed Ethernet, the knitting data can be uploaded, downloaded and shared. |
Power | Single-phase 220V and triples-phase 380V, adopt advanced CMOS technology enabling memorizing at the instant of power outages and restoring of knitting thereafter. |
Top Tensioner
Synchronous Belt

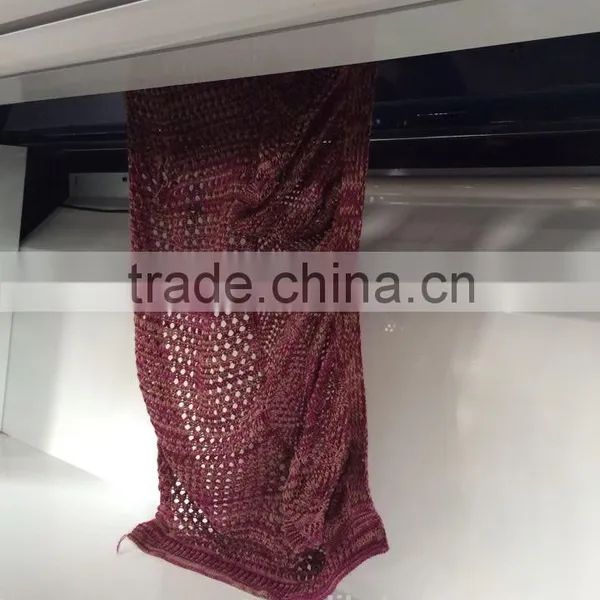

Sweater Piece
Waterproof package or vacuum package in Standard export wooden case.
