Home > Manufacturing & Processing Machinery > Textile Machinery & Parts > Knitting Machine > Absolutely A Right Choice:2014 New Type 10G/80" Fully Computerized Flat Knitting Machine With ISO9001 Standard

Absolutely A Right Choice:2014 New Type 10G/80" Fully Computerized Flat Knitting Machine With ISO9001 Standard

Name: Absolutely A Right Choice:2014 New Type 10G/80" Fully Computerized Flat Knitting Machine With ISO9001 Standard
Brand: Jiafeng
SKU: 103729645
Availability: InStock

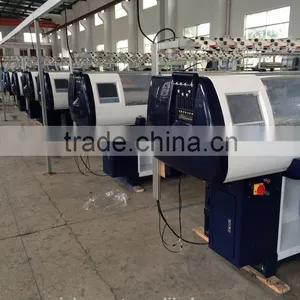

Absolutely A Right Choice:2014 New Type 10G/80" Fully Computerized Flat Knitting Machine With ISO9001 Standard thumbnail-1

Absolutely A Right Choice:2014 New Type 10G/80" Fully Computerized Flat Knitting Machine With ISO9001 Standard photo-1

US$ 7,000 - 15,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Product Type:

Sweater

Type:

Jacquard

Contact Supplier Request Quote Chat Now

Zhangjiagang Jiafeng Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Product Type Sweater

Type Jacquard

Place of Origin Jiangsu, China

Brand Name Jiafeng

Model Number JF52-2S

Knitting Style Flat

Knitting Method Double

Computerized Yes

Dimension(L*W*H) 2780*1050*2010mm

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Double system
Knitting width:52" 60" 80"
Gauge:5G,7G,9G,10G,12G,14G,16G,3-5-7multi-gauge
Carriage is imported from Taiwan

Product Description

Double system with single carriage

Main Parameters

Gauge	3.5G,5G,7G,10G,12G,13G,14G,multi-gauge3-5-7G
Knitting width	52" 60" 72"
Knitting speed	Controlled by AC servo motor with 64 sections speed optional, max 1.2m/s.with high-speed digital signal processor (DSP) to control IGBT to achieve accurate electric current output.
Knitting system	Double system with single carriage
Knitting function	Knit, miss, tuck, transfer, pointelle, intarsia, jacquard, hide, or apparent shaping and other regular patterns.
Racking system	Controlled by AC servo motor racking within 2 inches, support fine adjustment.
Needle detection	Capable of all-dimensional needle detection alarming
Encoder	Advanced encoder adopted.
Transfer cam	Combined type transfer cam, both single and double system all can transfer separately or synchronously, high efficiency.
Stitch density	Controlled by stepping motor, 24 sections density selectable,
Sinker system	Controlled by stepping motor, adjustable to different knitwear
Take down roller (optional)	Computerized, controlled by stepping motor,24 levels selection of tension with adjustable scope:0-100
Yarn feeder	2x8 yarn feeders, (special intarsia yarn feeders are optional).
Protection system	The machine will automatically alarm if yarn-breaking, knots floating, rewind, end of knitting, fail of racking, needle jack crash, error programming occur, also with safety auto-lock protection device.
Control system	1. LCD touch screen, graphical interface. USB and network compatible, with expanded memory of up to 2G. 2. Monitoring display: Various operating parameters can be displayed and can be adjusted anytime. 3. Design system and control system (software) are easy to update for free.
Power supply	Single-phase 220V and triples-phase 380V, adopt advanced CMOS technology enabling memorizing at the instant of power outages and restoring of knitting thereafter.
