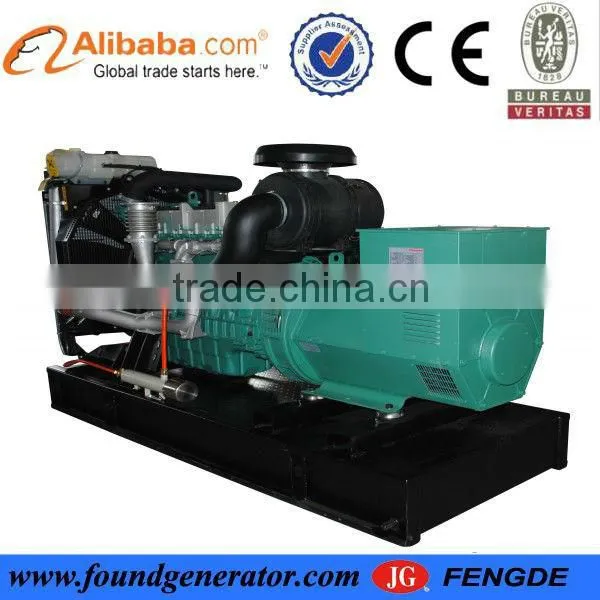

Help CenterVolvo Engine Powered Volvo 250kva Diesel Generator Set
Related Products
-
Low Price Sale Volvo Penta Generator SetUS$ 8,000 - 50,000MOQ: 1 Set -
CE Approved Volvo Penta Tad941ge Generator Set by Volvo EngineUS$ 2,000 - 50,000MOQ: 1 Set
-
Factory Price China Supplier,volvo Tad1241ge Generator by Volvo EngineUS$ 2,000 - 50,000MOQ: 1 Set
-
CE Approved Volvo Tad1641ge Diesel Generator Set by Volvo EngineUS$ 2,000 - 50,000MOQ: 1 Set
-
China Manufacturer 320kva Volvo Engine Powered Volvo Diesel Generator SetUS$ 2,000 - 50,000MOQ: 1 Set
Specifications
1.volvo 250kva diesel generator set2.ISO,CE certificate
3.reliable performance
4.global service for 12 montth
1. 250kva volvo penta diesel generator specifications:
1) Output range: 200kw (250kva)
2) Engine model: volvo engine
3) Alternator: Stamford, Marathon series Stamford copy
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof generator is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wiresalternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤±1%
14) Voltage deviation at instantaneous state: ≤+20%
15) Voltage return time: ≤4s
16) Voltage modulation: ≤0.3%
We are the top VIP supplier on Alibaba,
authorized by famous certification authority-BV ( Bureau Veritas ).
2. Volov Diesel Engine Technical Data:
Engine Model |
TAD734GE |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbochargerd |
Bore×Stroke |
108x130 mm |
Rated speed |
1500rpm |
Displacement |
7.15 L |
Compression ratio |
17.0:1 |
Prime Power |
217KW |
Speed Governor |
Electronic |
Cooling System |
water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
204g/kw.h |
Starter Motor |
24V, |
Stamford Alternator Technical data:
Alternator model |
UCD274K |
Alternator manufacturer |
Stamford |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
200kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
3.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
4. Document:
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC
5.picture of control system and factory:
photos for reference:
silent type:
