Specifications
500KVA electric power generator :1.one year warranty
2.ATS or AMF optional
3.Silent type or open type
4.ISO,CE approved
Diesel Power generator general feature:
1. All qualified generator sets are subjected to a comprehensive performance test which includes 50% load,
75% load, 100% load, 110% load and to check, verify that all control systems, alarm and shut-down protection.
2. Equipped with battery charger and 24V high performance maintenance-free lead-acid starting batteries and connecting cables.
3. Equipped with industrial silencer and flexible exhaust hose.
4.Equipped with 8-hours operation base fuel tank.
5. Equipped with PEOPLE MCCB circuit breaker.
6. Designed to Comply with ISO8528/GB2820.
7.Powered by Cummins engine and coupled with Marathon alternator.
8. Stability, reliability and easy-service
9.Low operating and maintenance cost
10. Widely used, location to meet customer needs
11. Easy-installation, easy-operation and maintenance
Diesel Power generator main parameter:
Prime power |
400kW |
Standby power |
440 kW |
Rated speed |
1500 RPM |
Output frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V |
Noise dB(A) @7m |
100 |
Engine model |
TAD1641GE |
Alternator model |
MP-400-4A/S |
Prime Power : Prime power is available for an unlimited number of annual hours in variable load application,
in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating : The standby power rating is applicable for supplying emergency power for
the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Engine Model |
TAD1641GE |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbochargerd |
Bore×Stroke |
144x165mm |
Rated speed |
1500rpm |
Displacement |
16.12 L |
Compression ratio |
16.5:1 |
Prime Power |
430KW |
Speed Governor |
Electronic |
Cooling System |
water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
199g/kw.h |
Starter Motor |
24V, |
Alternator model |
MP-400-4A/S |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
400 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |

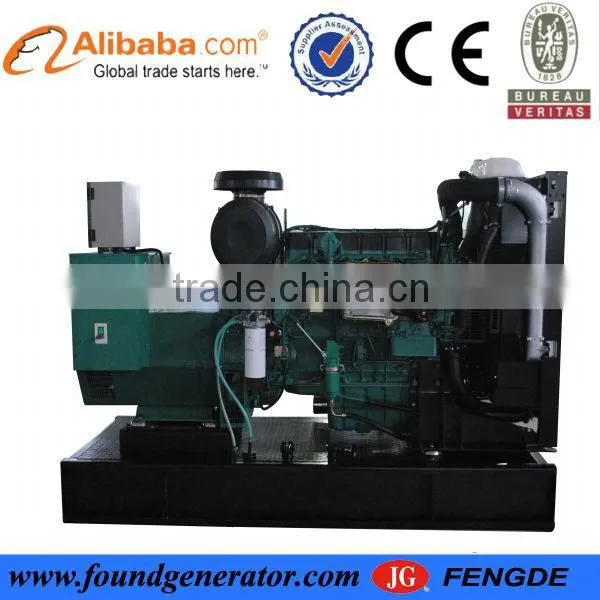

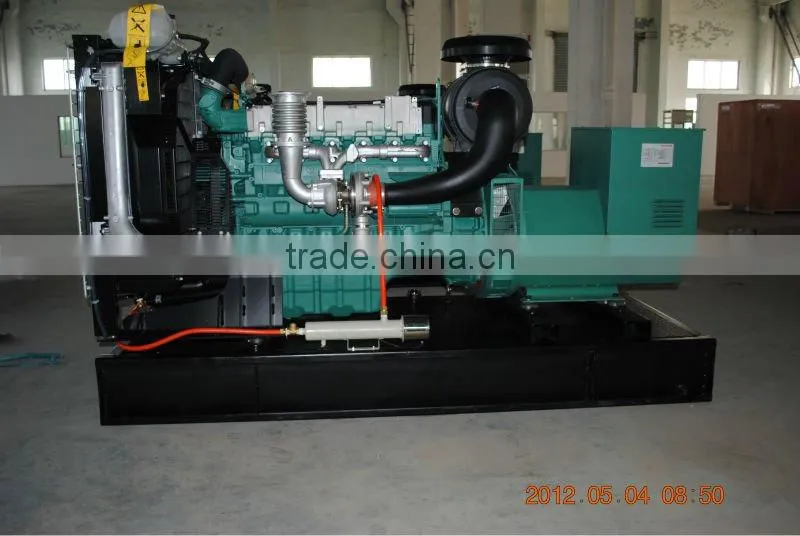

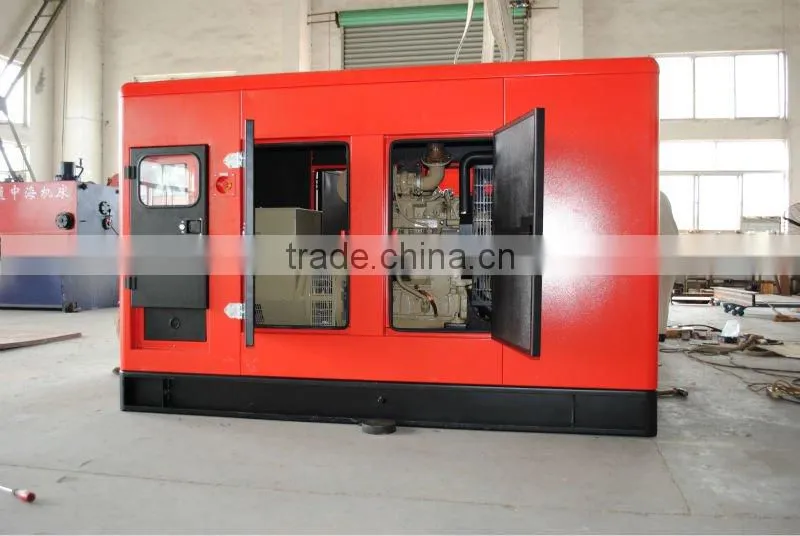

Diesel Power generator picture in spot
