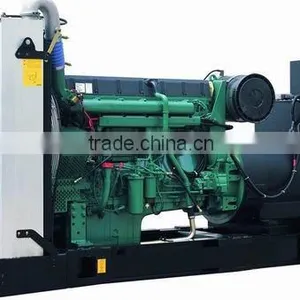

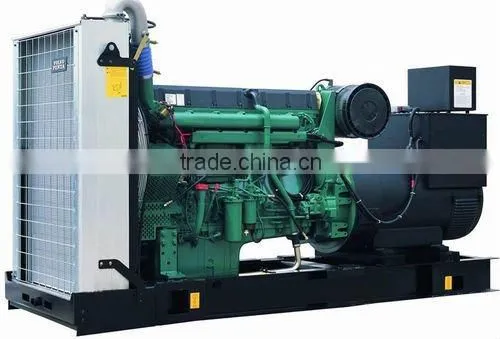

Volvo Diesel Generator Set

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

JG160GF

Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name JG

Model Number JG160GF

Output Type AC Three Phase

Speed 1500RPM

Frequency 50HZ

Rated Power 160KW/200KVA

Rated Voltage 400V

Rated Current 288A

Specifications

1. CE approved
2. VOLVE engine with MARATHON alternator
3. ISO 9001:2000 certificate
4. Volvo diesel generator

.Main technical data of gensets
1.1	Model	JG160GF
1.2	Prime power	160KW
1.3	Prime voltage	230/400V
1.4	Speed	1500 rpm
1.5	Weight	1600kg
1.6	Overall dimension	2550×1050×1500mm (just for reference)
2.Main technical data of engine
Volvo engine, 4 stroke. DC start.
2.1	Brand	VOLVO
2.2	Model	TAD733GE
2.3	Prime/Standby power	177/197 KW
2.4	Governor type	Electronic
2.5	Configuration	4 cycle , 6 cylinder in line
2.6	Cooling method	By radiator
2.7	Bore/Stroke	108×130 mm
2.8	Displacement	7.15 L
2.9	Starting method	Electric
2.10	Fuel consumption	216g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1	Brand	MARATHON
3.2	Model	MP-160-4
3.3	Prime power	160KW
3.4	Configuration	Brushless , self-exciting
3.5	Prime voltage	230V/400V
3.6	Frequency	50 HZ
3.7	Power factor	0.8(lagging)
3.8	Phase/wire	3 phase 4 wires
3.9	Isolation	H
