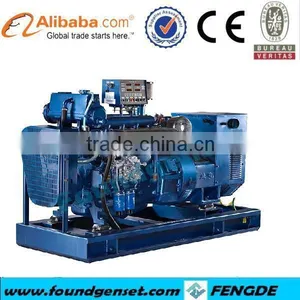

Help Center2015 75KW Heat Exchanger Deutz Marine Diesel Generator Set Price List
Related Products
-
Good Efficiency 75kw Weichai Deutz Marine Emergency Diesel Generator GensetUS$ 4,000 - 8,000MOQ: 1 Set -
Factory Price Automatic Control 120kw Deutz Marine Generator for BoatsUS$ 4,000 - 8,000MOQ: 1 Set
-
2015 CCS/BV Approved 40KW Deutz Diesel Engine Welder GeneratorUS$ 4,000 - 8,000MOQ: 1 Set
-
2015 CCS/BV Approved 64KW Deutz Marine Diesel Engine Welder GeneratorUS$ 6,000 - 8,000MOQ: 1 Set
-
Factory Price 625kva Diesel Generator PowerUS$ 200,000 - 280,000MOQ: 1 Unit
Specifications
1.deutz stamford marine generator
2.ISO,CE certificate
3.global service for 12 month
4.deutz and stamford technology
Main Description
Fengde has 18 years' manufacturing experience, and our Diesel Generator Set by Volvo has the following features: reliability, durability, flexibility, energy-saving, environment protection, wonderful World wide after-service networks.
Genset Datasheet
(This datasheet is FYR, any latest specific information please contact us.)
CE approved china manufacturer supply deutz stamford marine generator
1. deutz stamford marine generato general feature:
1. Deutz advanced technology, power range of 231-490kw;
2. The structure of inner oil duct and inner water channel is contributing to is contributing to obviously-reduced external pipelines and lowered fault possibilities, the service life is averaged at 15,000h;
3. The structure of a head for a cylinder, strong currency of parts, convenient maintenance;
4. Patented stagger crankshaft and parts optimized in noise including crankcase, accessory bracket will provide the engine with small vibration and low noise (<98dB);
5. It can be normally started at a temperature of 35°C below zero with an inlet warming device added.
2.Engine Technical Data:
Engine Model |
BF6M1015-LA GA |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbochargerd intercooled |
Bore×Stroke |
105x120 mm |
Rated speed |
1500rpm |
Displacement |
11.906 L |
Prime Power |
120KW |
Speed Governor |
Mechanical/Electronic |
Cooling System |
Closed water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
≤205g/kw.h |
Starter Motor |
DC24V |
Marathon alternator data:
Alternator model |
Mp-180-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
180 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
Supply Scope
Complete Diesel Generating Set including Volvo diesel engine, alternator, radiator, 8-10 hours running base fuel tank, standard control system, circuit breaker, muffler, absorber, filters, starting batteries, battery charger, ATS Control system (optional), Parallel control (optional), soundproof canopy (optional), testing report, user books and other accessories etc.
Our Service
Fengde provides a full line of brand new and high quality products. Each and every unit is strictly factory tested. Warranty is according to our standard conditions: 12 months or 1000 running hours, subject to the earlier one. And what’s more, Fdengde will provid life-span technical support and spare parts at manufacture prices.
Products Showcase
Parts
Gensets
Manufacturing
Everything can be decided on the real situation.Please contact us for more information.
