Specifications
1.deutz stamford marine generator2.ISO,CE certificate
3.global service for 12 month
4.deutz and stamford technology

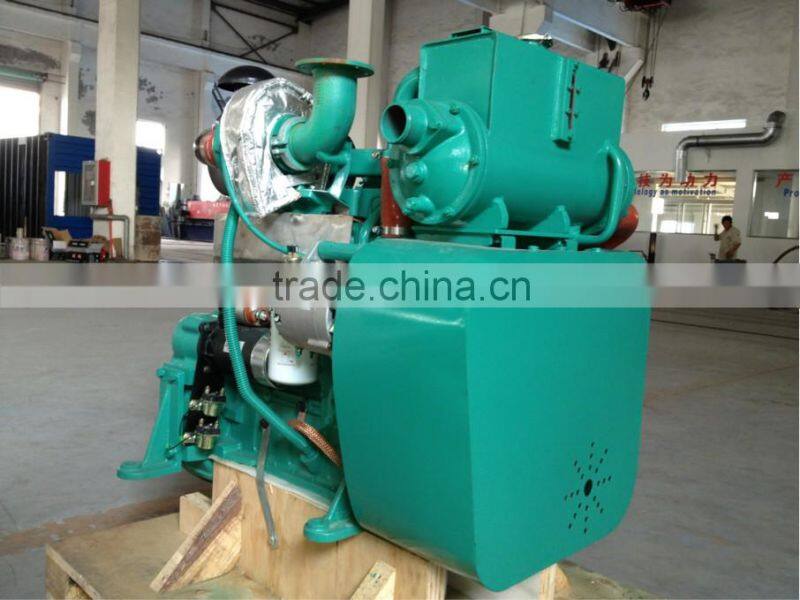

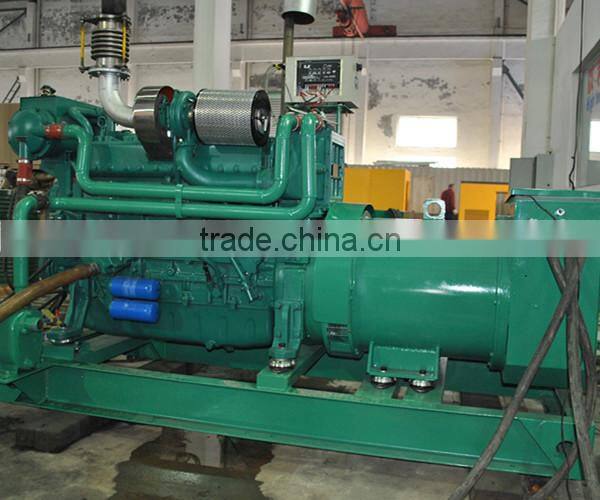

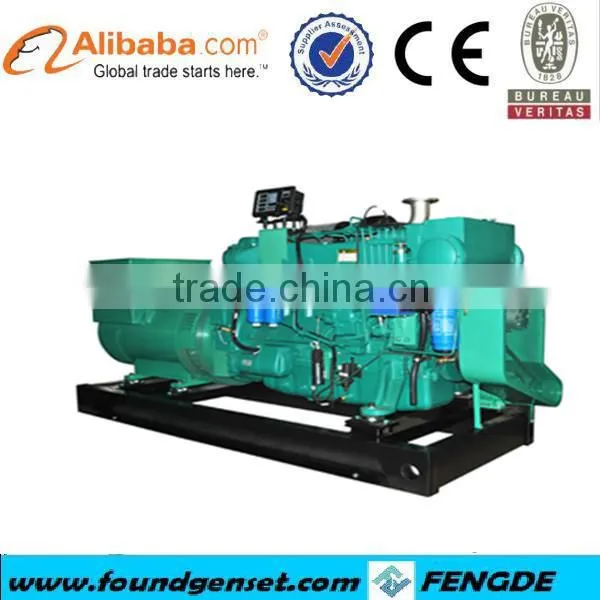

CE approved china manufacturer supply deutz stamford marine generator
1. deutz stamford marine generato general feature:
1. Deutz advanced technology, power range of 231-490kw;
2. The structure of inner oil duct and inner water channel is contributing to is contributing to obviously-reduced external pipelines and lowered fault possibilities, the service life is averaged at 15,000h;
3. The structure of a head for a cylinder, strong currency of parts, convenient maintenance;
4. Patented stagger crankshaft and parts optimized in noise including crankcase, accessory bracket will provide the engine with small vibration and low noise (<98dB);
5. It can be normally started at a temperature of 35°C below zero with an inlet warming device added.
2.Engine Technical Data:
Engine Model |
BF6M1015-LA GA |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbochargerd intercooled |
Bore×Stroke |
105x120 mm |
Rated speed |
1500rpm |
Displacement |
11.906 L |
Prime Power |
120KW |
Speed Governor |
Mechanical/Electronic |
Cooling System |
Closed water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
≤205g/kw.h |
Starter Motor |
DC24V |
Marathon alternator data:
Alternator model |
Mp-180-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
180 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
3.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.

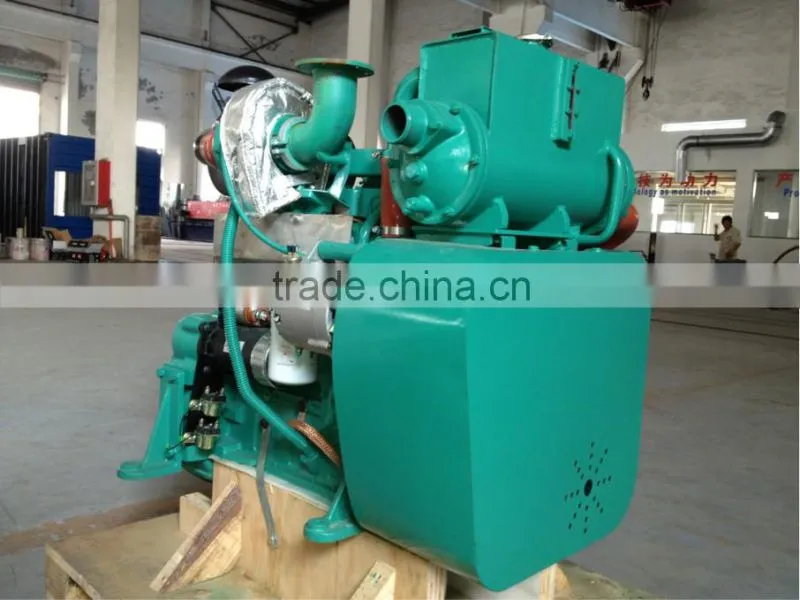

product for reference
