Home > Products > RFID Inlay > PET HF 13.56MHz paper contact coil
PET HF 13.56MHz paper contact coil
- 600 Piece / Pieces per Month
- ShwnZhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | ZFine | Model Number: | inlay |
Product Description
Specifications
PET HF 13.56MHz Wet / Dry UHF Rfid Inlay / 860 ~ 960MHz1.Thcikness:0.3mm-0.6mm
2.Layout:A4,3*7,3*8,4*5,5*5,4*10,etc
PET HF 13.56MHz paper contact coil :

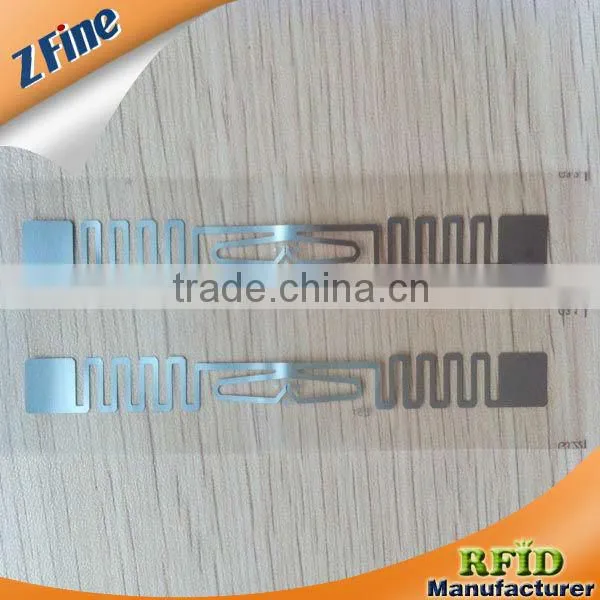

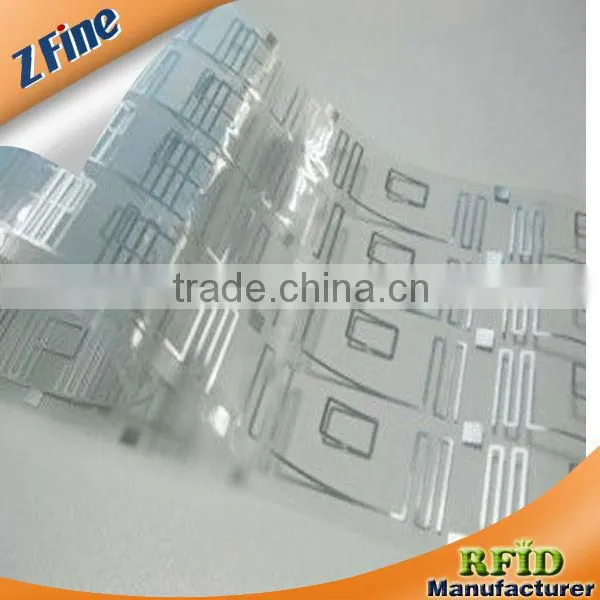

RFID inlay is processed with etched antenna and flip chip packaging technology,whose material is soft ,light and thin ,and it can be processed to various kinds of ticket(such as train ticket)or label(such as NFC tag) and so on .
We supply various kinds of HF tag and UHF tag ,including many kinds of dry inlay and wet inlay and kinds of labels .
Product Feature:
Ultra High Frequency (860~960MHZ) Chip: | Ucode EPC Gen2/G2XL/G2XM Alien H2/H3 Impinj M3 |
High Frequency | Tag-it HF-1 Plus (TI2048, TI 2K) |
Protocol:
| ISO/IEC 7816, ISO14443A / 15693 / EPC Class1 Gen2/ISO 18000-6C |
Inlay Material:
| Antenna: AL,15μm±3μm HF IC: Silicon, 150μm±10μm Substrate: PET, 55μm±5μm |
Environmental Specification
| Shelf Life 5 Years Recommended: -25C to +50C Storage Condition: 20% to 90%RH Operating Temp: -40C to +65C |
Read/write Times: | 100000 times |
Reading Distance | 3-100CM (According to the design of the antenna of the reader) |
Card size: Thickness: | 85.5*54mm or as request 0.2-0.94mm |
Material:
| PVC/PET/Adhesive Sticker |
Weight: | (In credit card size) 6KG for 1000pcs |
Application: | Public Transportation, Access management, E-tickets, Logistic and supply management, Production manufacturing and assembly, Windshield label, Document tracking, Laundry management, Library management, Animal identity and so on |
Our advantages :
*Best Quality
*Fast Delivery
*Competitive Price
*Best Serves
ZFine make things easy:
Products show :
Who we are :
Contact Us
- Shenzhen Z-Fine Smart Card Co., Ltd.
- Contact nameIvy Hu
- Phone86-0755-29473006-8060
- Address4/F, Block B, No. 1 Industrial Area, Shuichanjingwan, Gushu, Xixiang, BaoAn,ShenZhen City,China Shenzhen,Guangdong
