Help Center100kva Yuchai Marine Diesel Generator
Related Products
-
CE,RS,BV,CCS Approved Factory Price Sale WP4/WP6 Weichai Deutz Marine EngineUS$ 5,000 - 15,800MOQ: 1 Set -
Factory Direct Sale Yuchai Marine Diesel Engine With CCS,CE,ISOUS$ 5,600 - 8,500MOQ: 1 Set
-
CE,BV,CCS Approved Zichai Marine EngineUS$ 6,800 - 15,800MOQ: 1 Set
-
250KW Marine Generator Power With Yuchai Marine Engine With CCS ApprovedUS$ 9,999 - 999,999MOQ: 1 Set
-
CE Approved Factory Price YC6108 Yuchai Engine 100kva Yuchai GensetUS$ 8,000 - 15,800MOQ: 1 Set
Specifications
1.yuchai marine diesel generator2.ISO,CE,BV,CCS certificate
3.global service for 12 month
4.reliable performance
1. Yuchai marine diesel generator general feature:
1) Developed by adopting the technology of FEV, Germany
2)Cylinder block cylinder head are made of alloy cast iron with high strenght; crankshaft is made in a single piece,; sliding bearing. Engine is compact in design, light on weight and with high reliability; overhaul life i more than 10,000 hours.
3) FEV port shirnk conbustion chamber technology, AD type high-pressure fuel pump and low-inertia & small aperture injector contribute to more intense cpnbustion and lower fuel consumotion. Oil consumption is reduced by more than 50%. Compared with products of the same power at home by adopting Yuchai's special pistion ring sealing technology and valve oil seal tecnology.
2. Technical Data:
Yuchai Diesel Engine
Technical Data
Engine Model |
YC6108ZLCA |
Number of Cylinders |
Vertical,in-line,6 cylinders |
Cycle |
4 stroke |
Aspiration |
Turbo-charging & inter-cooling |
Bore×Stroke |
108 x125 mm |
Displacement |
6.871 L |
Compression ratio |
17.5:1 |
Prime Power/Speed |
90kW / 1500rpm |
Speed Governor |
electrical |
Cooling System |
By heat exchanger |
Fuel Consumption at 100% Load |
≤200 g/kw.h |
Starter Motor |
DC24V |
Marathon Alternator
Technical Data
Alternator model |
MP-H-90-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
90kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400V |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
3.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
4.Certificate & Document:
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC

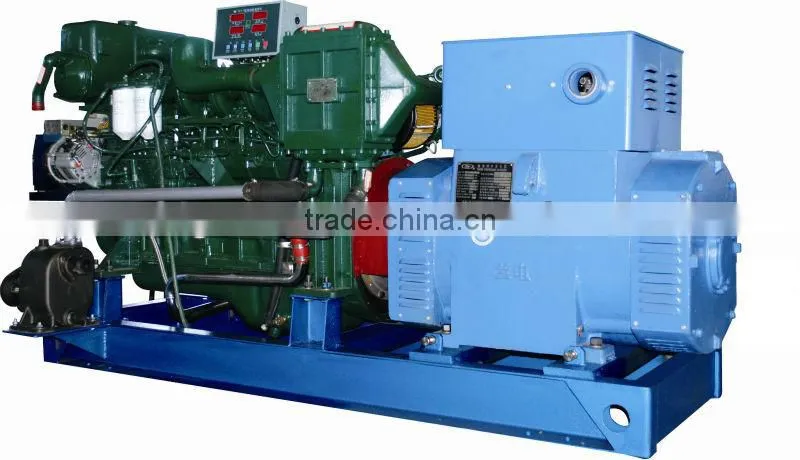

5.picture:
