Specifications

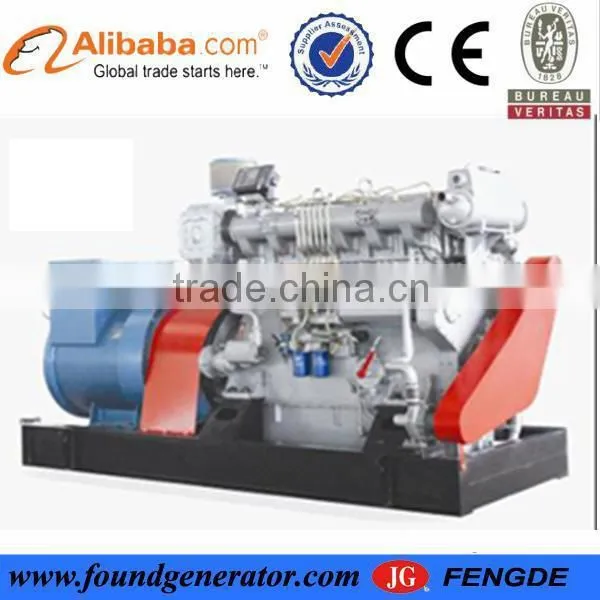

800KW Chinese Generator1)Jichai diesel generator
2)CE approved,steady quality
3)Global service for 1y
4)competitive price
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas )
800KW Chinese Generator
1)Jichai diesel generator
2)CE approved,steady quality
3)Global service for 1y
4)competitive price
Genset Technical Data | |
Prime power |
800 kW |
Standby power |
880 kW |
Rated speed |
1500 RPM |
Output frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V |
Noise dB(A) @7m |
100 |
Engine model |
Z12V190B |
Jichai Diesel Engine Technical Data
Engine Model |
Z12V190B |
Number of Cylinders |
12 |
Cylinder arrangement |
In V type |
Cycle |
4 stroke |
Aspiration |
Turbocharged after cooled |
Bore×Stroke |
190x210 mm |
Output Power/Speed |
882KW/1500rpm |
Speed Governor |
Electrical |
Cooling System |
Water-cooled , 40°C Radiator As Standard, 50°C Is Optional. |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
210 g/kw.h |
Starter Motor |
DC24V, |
Marathon Alternator Technical Data
Alternator model |
1FC2 453-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
800 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
Alternator option: Sunvim,Stamford, Lrroy somer.
Alternator Brand |
Alternator Model |
Phase |
Rated Speed |
Rated Prime Power |
Sunvim |
SV404E |
3 |
1500RPM |
800 |
Stamford |
LVI 6E |
3 |
1500RPM |
800 |
Leroy somer |
LSA 49.1L9 |
3 |
1500RPM |
808 |
