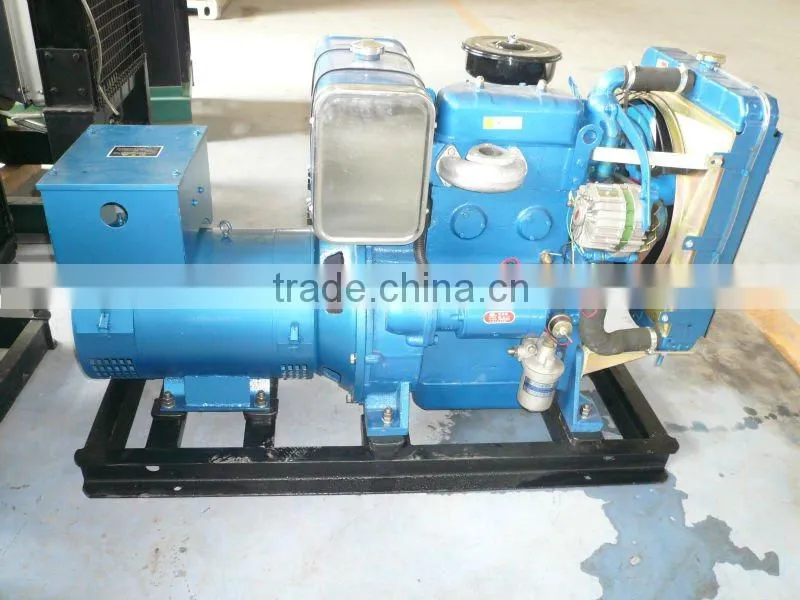

20 KW Diesel Generator Cooling by Radiator

Name: 20 KW Diesel Generator Cooling by Radiator
Brand: changchai
SKU: 103723151

US$ 300 - 500 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

changchai

Model Number:

JGC20GF

Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name changchai

Model Number JGC20GF

Output Type AC Three Phase

Speed 1500rpm

Frequency 50HZ

Rated Power 20KW

Rated Voltage 230/400V

Rated Current 36A

Specifications

20 KW diesel generator :
1.one year warranty

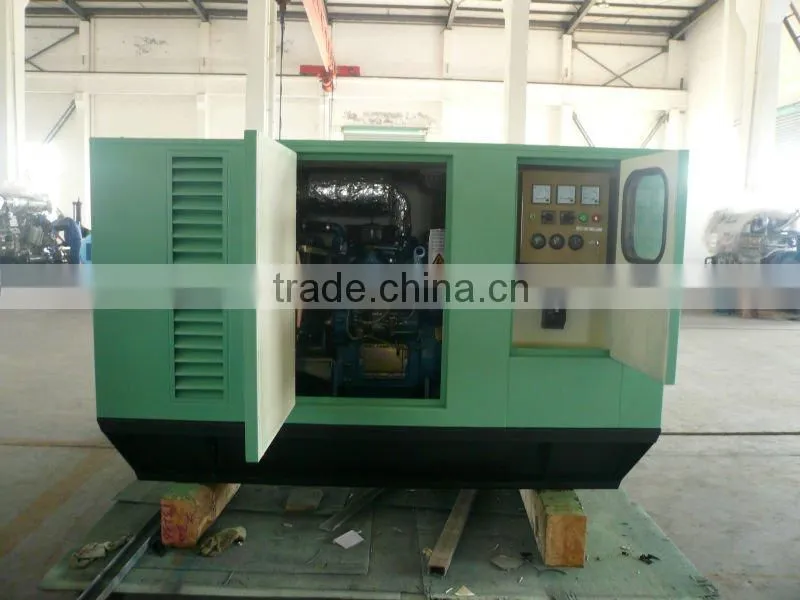

2.silent or open type
3.changchai diesel engine
4.digital controller

20 KW diesel generator specification :

1.Main technical data of gensets
1.1	Model	JG20GF
1.2	Prime power	20KW/25KVA
1.3	Prime voltage	230/400V
1.4	Speed	1500 rpm
1.5	Weight	650kg
1.6	Overall dimension	*17007001200(just for reference)*
2.Main technical data of engine
Cummins engine, 4 stroke. DC start.
2.1	Brand	Changchai
2.2	Model	L28M
2.3	Prime power	26.5KW/33KVA
2.4	Governor type	merchanical
2.5	Configuration	4 cycle
2.6	Air Intake System	Natural Aspirate
2.7	Bore/Stroke	95×115 mm
2.8	Displacement	3.26 L
2.9	Starting method	12V,Electric
2.10	Compression ratio	19:1
2.11	Fuel consumption	265g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1	Brand	ZHENGTAI
3.2	Model	STC-20
3.3	Prime power	20KW/25KVA
3.4	Configuration	Brushless , self-exciting
3.5	Prime voltage	230V/400V
3.6	Frequency	50 HZ
3.7	Power factor	0.8(lagging)
3.8	Phase/wire	3 phase 4 wires
3.9	Isolation	B
