ESCAM 2.0 Megapixel HD Network Mini IR-Bullet Camera

Name: ESCAM 2.0 Megapixel HD Network Mini IR-Bullet Camera
Brand: Xingnuo
SKU: 103716731
Availability: InStock

US$ 114.00 - 114.00 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Xingnuo

Model Number:

HD3100

Guangzhou Xingnuo Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

GuangZhou Shenzheng HongKong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Xingnuo

Model Number HD3100

Type Digital Camera

Style Mini Camera

Sensor CMOS

Technology NetWork

Special Features Other

Specification

ESCAM 2.0 Megapixel HD Network Mini IR-Bullet Camera

Model		HD3100
Camera
Image Sensor		1/3" Progressive Scan CMOS
Effective Pixels		1920(H)x1080(V)
Scanning System		Progressive
Electronic Shutter Speed		Auto/Manual, 1/3~1/10000s
Min. Illumination		Color: 0. 1Lux, B/W: 0.05Lux ; 0Lux(IR on)
S/N Ratio		>50dB
Camera Features

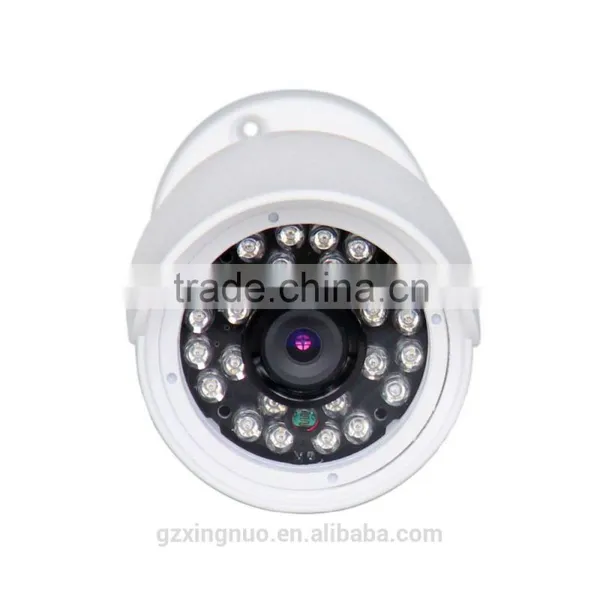

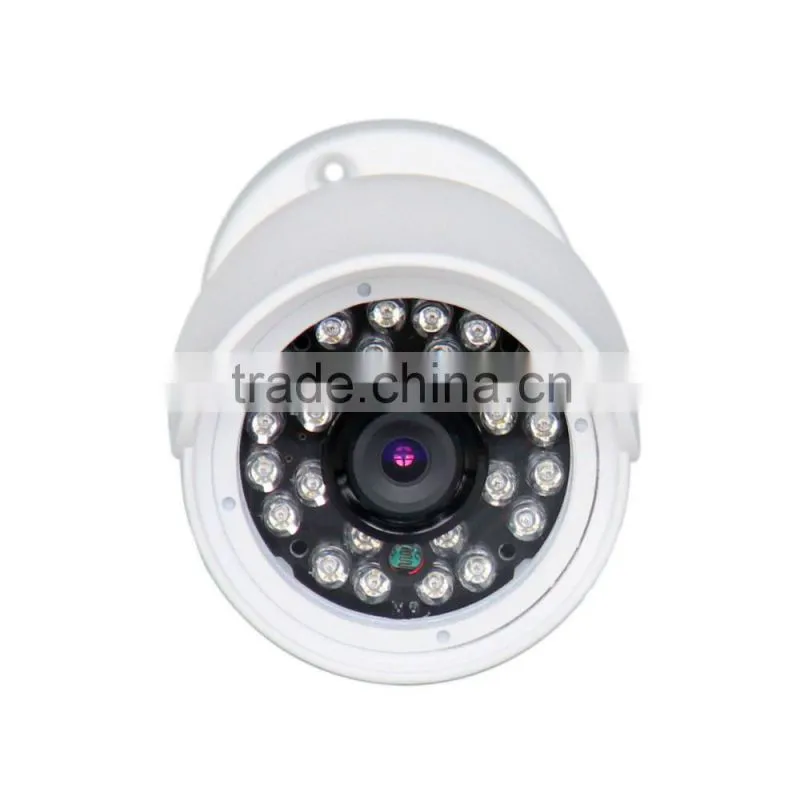

Max. IR LEDs Length		Dia.5 24pcs IR Led , IR Range 20m
Day/Night		Auto(ICR) / Color / B/W
Backlight Compensation		BLC
White Balance		Auto
Gain Control		Auto/Manual
Noise Reduction		2D
Privacy Masking		YES
Lens
Focal Length		3.6mm
Max Aperture		F1.6
Angle of View		62.2deg
Mount Type		MTV mount (Interchangeable Lens)
Video
Compression		H.264
Frame Rate	Main Stream	1080P (19201080)25fps/HD 720P (1280720) 25fps
	Sub Stream	D1 704*576 25FPS / CIF 25FPS
Bit Rate		32-8000 Kbps,Supports CBR/VBR
Network
Ethernet		RJ-45 (10/100Base-T)
Protocol		TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , NTP , PPPoE, SMTP , UPNP
ONVIF		ONVIF Ver. 2.0
PC		windows xp/windows 7/windows 8
Browser		IE6.0~10.0 google 30.0.1599.59 firefox 25.2.1 safari 5.1.7
Email		gmail yahoo
Max. User Access		10 users
General
Power Supply		DC12V
POE		PoE 802.3af
Power Consumption		<6W
Working Environment		-10°C~+60°C, 10%~90%
Ingress Protection		IP66
Dimension		60mm60mm160mm
Weight		0.35KG
Package Dimension		19519595mm
Package Weight		0.45KG
Approvals		CE FCC RoHS
