Salzer AC Selector Switch (UL File No.E236199, TUV and CE Approved)

salzer rotary switch, voltmeter switch UL Certificate

Features:
1) Specifications:
a) Rating (TUV): 440V / 18A (AC-21), 13A (AC-23), 16A (AC-3), 5A (AC-15)
b) Rating (TUV): 250V / 10A (AC-15)
c) Rating (UL): 25A / 125V, 16A / 250V, 7.5HP / 240 - 440V, 3HP / 120 -
240V (single phase)
d) Endurance: 5E4
e) Short circuit current: 5KA
2) IP20 standard
3) Widely used to change position of ammeter and voltmeter to control the
direction of motor and other circuits.
4) The switches have 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 positions
5) 1, 2, 3, 4, 5, 6 stage with many different panels and buttons:
a) Ammeter rotary switch: OFF-R-Y-B, OFF-R-S-T

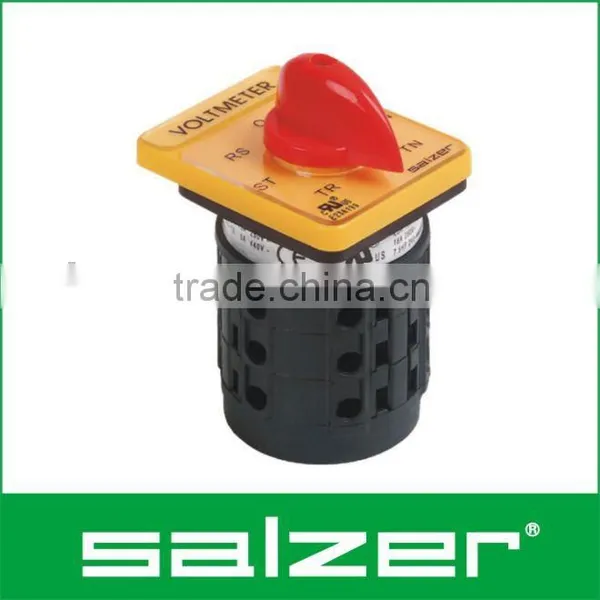

b) Voltmeter rotary switch: TR-ST-RS-0-RN-SN-TN, BR-YB-RY-OFF-RN-YN-BN
c) Off-on rotary switch
d) A-O-M rotary switch
e) FOR-OFF-REV rotary switch
f) Delta start rotary switch
g) Multistep switches:
0-1-2
0-1-2-3
0-1-2-3-4
0-1-2-3-4-5
0-1-2-3-4-5-6
0-1-2-3-4-5-6-7
0-1-2-3-4-5-6-7-8
0-1-2-3-4-5-6-7-8-9
0-1-2-3-4-5-6-7-8-9-10
0-1-2-3-4-5-6-7-8-9-10-11
1-2
1-2-3
1-2-3-4
1-2-3-4-5
1-2-3-4-5-6
1-2-3-4-5-6-7
1-2-3-4-5-6-7-8
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9-10
1-2-3-4-5-6-7-8-9-10-11
1-2-3-4-5-6-7-8-9-10-11-12
