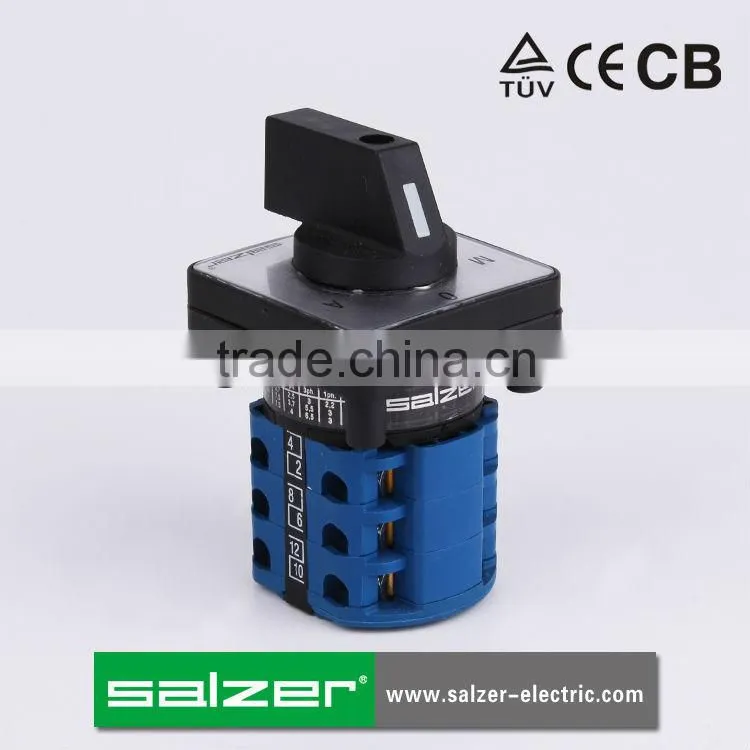

SALZER SA16 3-3 Function of Change Over Switch (TUV,CE and CB Approved )

Specifications

Function of Change Over Switch
1) Current rating: 16A
2) TUV,CE and CB Approved
3)Function: A-0-M

SALZER SA16 3-3 Function of Change Over Switch (TUV,CE and CB Approved )

SA Cam Switch

Type	SA16, SA25, SA32, SA63, SA125, SA160
Max.Current	16A, 25A, 32A, 63A, 125A, 160A
Max. Voltage	690VAC
Pole	1Pole, 2Pole, 3Pole, 4Pole
Plate Size	M1 (48X48mm), M2 (64x64mm), M3 (88x88mm)
Faceplate	A-0-M
Degree of Rotation	30°, 45°, 60°, 90°
Ingress Protection	IP20 with finger protection





The cam switch is mainly applicable to circuit of 690VAC and below, 50/60Hz. The switch has 6 current ratings: 16A, 25A, 32A, 63A, 125A and 160A. There is finger protection for current of 16A, 25A and 32A.
Switches 16A to 32A have 2 to 12 positions and 1 to 12 stages with many different panels and handles. Switches 63A to 160A have 2 to 12 positions and 1 to 8 stages.
The degree of rotation: 30°, 45°, 60°, 90°
Function: Ammeter, Voltmeter, OFF-ON, 0-1, 1-0-2, A-O-M, FOR-OFF-REV, O-Y-Δ, Δ-Y-O-Y-Δ, 0-1-Star, Multi-step switches and so on
