Specifications
Adjustable dc power supply 120w 12vHigh efficiency,reliability
Input voltage: 90~132VAC/180~264VAC
Built in EMI filter/PWM
AC/DC power supply description:

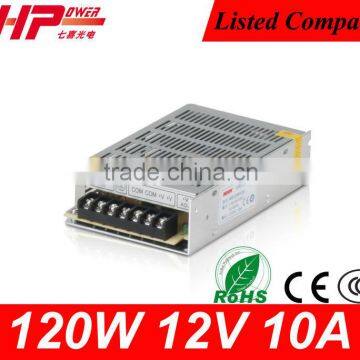

Product name:HB-120W-12V AC/DC power supply / led driver
Rated power: 120W
Output voltage: DC12V
Over voltage protection: 13.2~16.2V
Over load protection: 110~115% rated output power
Ripple & Noise (max.): 100mVp-p
Rain-proof/High reliability
Over temperature protection: 100°C±5°
Business type: Manufacturer/Factory
Trade Mark: HPower
Certificates: CE, RoHS, CCC
Warranty: 2 years
AC/DC power supply features:
v Universal AC input/Full range
v Protection: Short circuit/Overload /Over Voltage/Over Temperature
v 8 hrs and 100% full load bult-in test
v Bult-in constant current limiting circuit
v Cooling by free air convection
v AC input range selectable by switch
v PWM control and regulated
v LED indicator for power on
AC/DC power supply details:
120w Series, include output 3.3V, 5v, 12v, 15v, 24v and 36v.
| Model | HB-120W-3.3V | HB-120W-5V | HB-120W-12V | HB-120W-15V | HB-120W-24V | HB-120W-36V | |
| Output | DC Voltage | 3.3V | 5V | 12V | 15V | 24V | 36V |
| Rated Current | 36A | 24A | 10A | 8A | 5A | 3.5A | |
| Current Range | 0~36A | 0~24A | 0~10A | 0~8A | 0~5A | 0~3.5A | |
| Rated Power | 118.8W | 120W | 120W | 120W | 120W | 126W | |
| Ripple & Noise (max.) | 100mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
| Voltage Adj. Range | 3.14~3.63V | 4.75~5.5V | 11.4~13.2V | 14.3~16.5V | 22.8~26.4V | 34.2~39.6V | |
| Voltage Tolerance | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | |
| Line Regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±0.5% | ±0.5% | |
| Load Regulation | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| Setup,Rise time | 600ms,30ms at full load | ||||||
| Hold Up Time(Typ.) | 13ms at full load | ||||||
| Input | Voltage Range | 90~132VAC/180~264VAC | |||||
| Frequency Range | 47~63HZ | ||||||
| Efficiency(Typ.) | 85% | 85% | 86% | 85% | 88% | 90% | |
| AC Current (Typ.) | 5A/115VAC 3A/230VAC | ||||||
| Inrush Current (Typ.) | 20A/115VAC 40A/230VAC | ||||||
| Leakage Current | <2mA / 240VAC | ||||||
| Protection | Over Load | 110~115% rated output power | |||||
| Protection type: Shut down O/P,re-power on to recover | |||||||
| Over Voltage | 3.63~4.46V | 5.5~6.75V | 13.2~16.2V | 16.5~20.25V | 26.4~32.4 | 39.6~48.6V | |
| Protection type: Shut down O/P,re-power on to recover | |||||||
| Over Temperature | 100°C±5°C(3.3V~12V); 105°C±5°C(15V~36V); TSW1 detect on main power transformer for others | ||||||
| Protection type: Shut down O/P,recovers automatically after temperature goes down | |||||||
| Environment | Working Temperature | -20~+60°C | |||||
| Working Humidity | 20~90% RH Non-condensing | ||||||
| Storage temp.& humidity | -20~+85°C, 10~95%RH | ||||||
| Temp. coefficient | ±0.03%/°C (0~50°C) | ||||||
| Vibration | 10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes | ||||||
| Safety & EMC | Safety Standards | UL60950-1 approved | |||||
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||||||
| Others | MTBF | 10000hrs MIL-HDBK-217F (25°C) | |||||
| Dimension | 160*98*38mm (L*W*H) | ||||||
| Packing | 0.36Kg; 48pcs/19.5Kg/1.85CUFT | ||||||
| Note | 1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature. | ||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 10uf parallel capacitor. | |||||||
| 3. Tolerance: includes set up tolerance, line regulation and load regulation. | |||||||
| 4. Derating may be needed under low input voltages. | |||||||
AC/DC power supply structural drawing(Unit::mm):
AC/DC power supplyderating curve:
AC/DC power supply applications:
1. LED display, led strip, nixie tube, street light, lamp;
2. Electrical equipment, Instrumentation;
3. Digital and electronic products;
4. LCD, LED, CCTV camera;
5. Building lighting decoration;
6. Communications and security products.
Our AC/DC power supply show room HEDY:

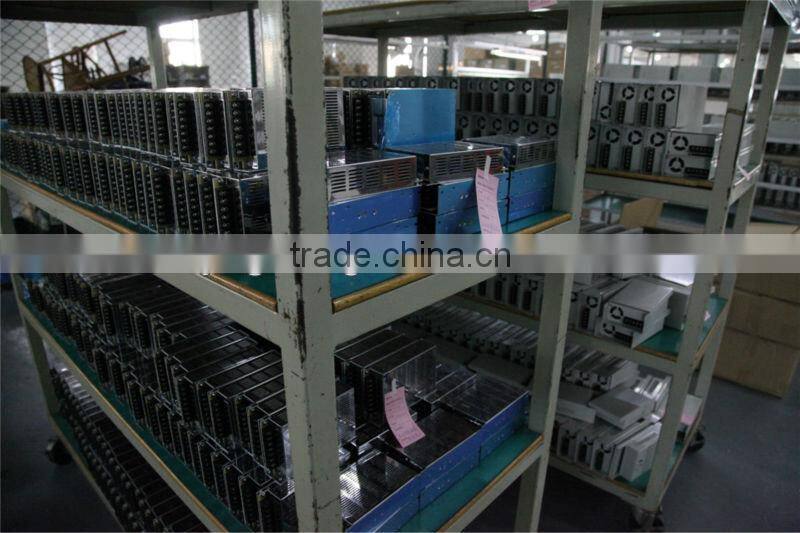

Our AC/DC power supply workshop HEDY:
AC/DC power supply packing & delivery
Lead time: 7-15 days
Delivery method:
ü Express service: FedEx/DHL/UPS/TNT/EMS
ü Air transportation: factory to airport
ü Ocean shipping: factory to port
