Specifications
60w 220vac to 24vdc power supplyInput voltage: 90~132VAC/180~264VAC
Output voltage: 24V
Constant voltage
Waterproof IP67
60w 220vac to 24vdc power supply description:
Product name: 60w 220vac to 24vdc power supply
IP67 waterproof
Ripple & Noise (max.): 100mVp-p
Over load protection: 110~115% rated output power
Over temperature protection: 105°C±5°
Business type: Manufacturer/Factory
Trade Mark: HPower
Certificates: CE, RoHS, CCC
Warranty: 2 years
60w 220vac to 24vdc power supply features:
v Waterproof / IP67
v Universal AC input/Full range
v Protection: Short circuit/Overload /Over Voltage/Over Temperature
v Bult-in constant current limiting circuit
v 100% full load bult-in test
60w 220vac to 24vdc power supply applications:
1.Digital and electronic products;
2.LCD, LED, CCTV camera;
3.Communications and security products;
4.Electrical equipment, Instrumentation
5.LED display, led strip, nixie tube, street light, lamp;
6. Building lighting decoration.
60w 220vac to 24vdc power supply details:
60w IP67 waterproof power supply series, include output 3.3v, 5v, 12v, 15v, 24v and 36v.
| Model | HA-60W-3.3V-U | HA-60W-5V-U | HA-60W-12V-U | HA-60W-15V-U | HA-60W-24V-U | HA-60W-36V-U | |
| Output | DC Voltage | 3.3V | 5V | 12V | 15V | 24V | 36V |
| Rated Current | 18A | 12A | 5A | 4A | 2.5A | 1.5A | |
| Current Range | 0~18A | 0~12A | 0~5A | 0~4A | 0~2.5A | 0~1.5A | |
| Rated Power | 59.4W | 60W | 60W | 60W | 60W | 54W | |
| Ripple & Noise (max.) | 100mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
| Voltage Adj. Range | 3.14~3.63V | 4.75~5.5V | 11.4~13.2V | 14.3~16.5V | 22.8~26.4V | 34.2~39.6V | |
| Voltage Tolerance | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | |
| Line Regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±0.5% | ±0.5% | |
| Load Regulation | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| Setup,Rise time | 600ms,30ms at full load | ||||||
| Hold Up Time(Typ.) | 13ms at full load | ||||||
| Input | Voltage Range | 90~132VAC/180~264VAC | |||||
| Frequency Range | 47~63HZ | ||||||
| Efficiency(Typ.) | 83% | 82% | 82% | 85% | 87% | 90% | |
| AC Current (Typ.) | 3A/115VAC 2A/230VAC | ||||||
| Inrush Current (Typ.) | 20A/115VAC 40A/230VAC | ||||||
| Leakage Current | <2mA / 240VAC | ||||||
| Protection | Over Load | 110~115% rated output power | |||||
| Protection type: Shut down O/P,re-power on to recover | |||||||
| Over Voltage | 3.63~4.46V | 5.5~6.75V | 13.2~16.2V | 16.5~20.25V | 26.4~32.4 | 39.6~48.6V | |
| Protection type: Shut down O/P,re-power on to recover | |||||||
| Over Temperature | 100°C±5°C(3.3V~12V); 105°C±5°C(15V~36V); TSW1 detect on main power transformer for others | ||||||
| Protection type: Shut down O/P,recovers automatically after temperature goes down | |||||||
| Environment | Working Temperature | -20~+60°C | |||||
| Working Humidity | 20~90% RH Non-condensing | ||||||
| Storage temp.& humidity | -20~+85°C, 10~95%RH | ||||||
| Temp. coefficient | ±0.03%/°C (0~50°C) | ||||||
| Vibration | 10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes | ||||||
| Safety & EMC | Safety Standards | UL60950-1 approved | |||||
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||||||
| Others | MTBF | 10000hrs MIL-HDBK-217F (25°C) | |||||
| Dimension | 137*70*40mm (L*W*H) | ||||||
| Packing | 0.32Kg; 48pcs/17.7Kg/1.79CUFT | ||||||

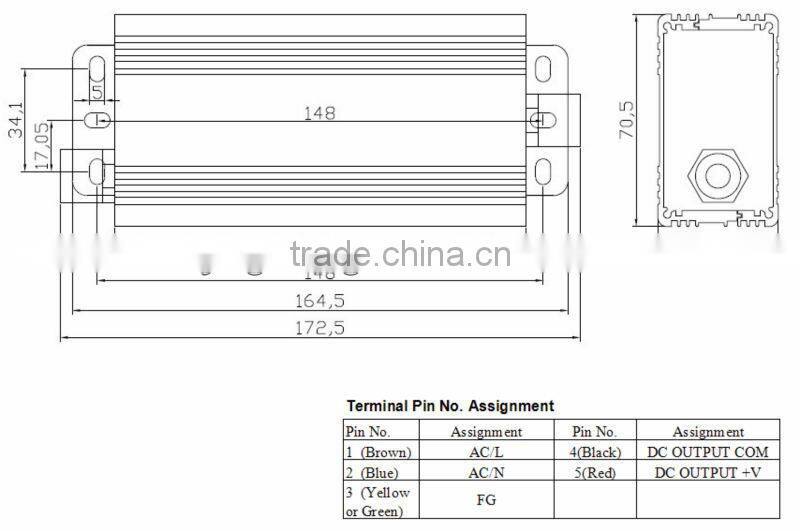

60w 220vac to 24vdc power supply structural drawing:
60w 220vac to 24vdc power supply derating curve:
60w 220vac to 24vdc power supply packaging and shipping:
0.32Kg/pc; 48pcs/carton; 17.7Kg/carton; 1.79CUFT/carton
Lead time: 7-15 days
Delivery method:
ü Express service: FedEx/DHL/UPS/TNT/EMS
ü Air transportation: factory to airport
ü Ocean shipping: factory to port

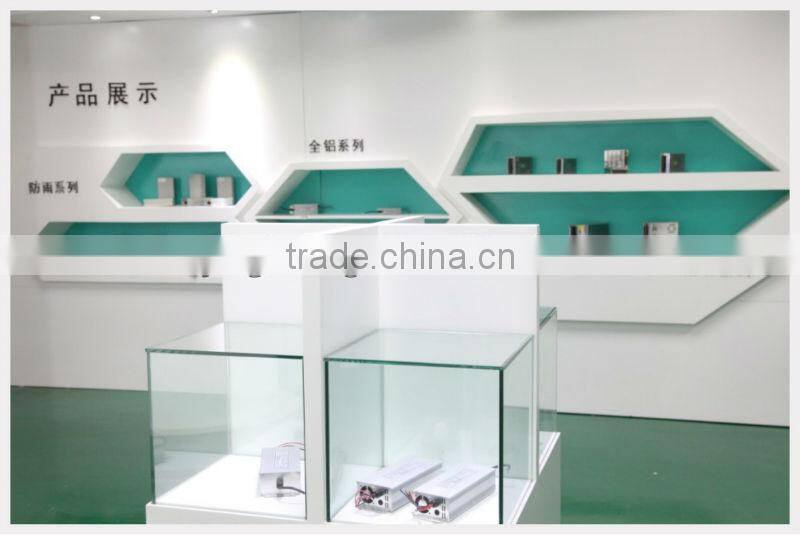

Our switching power supply showroom:

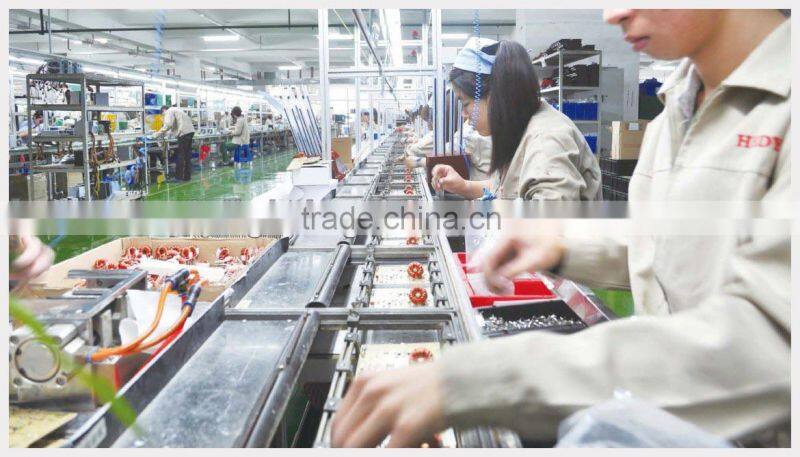

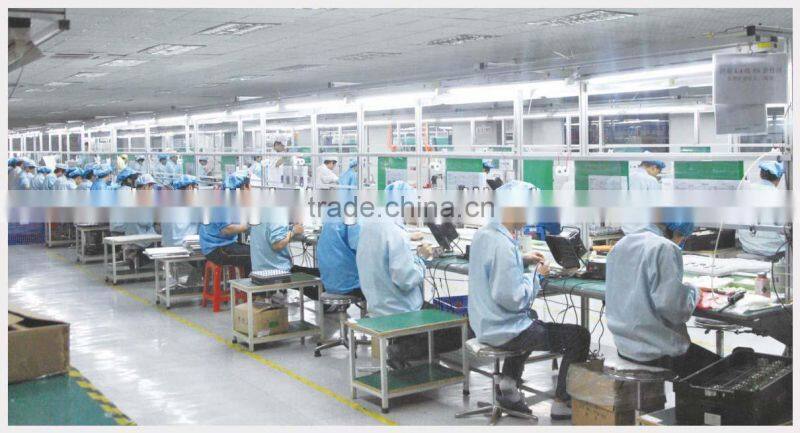

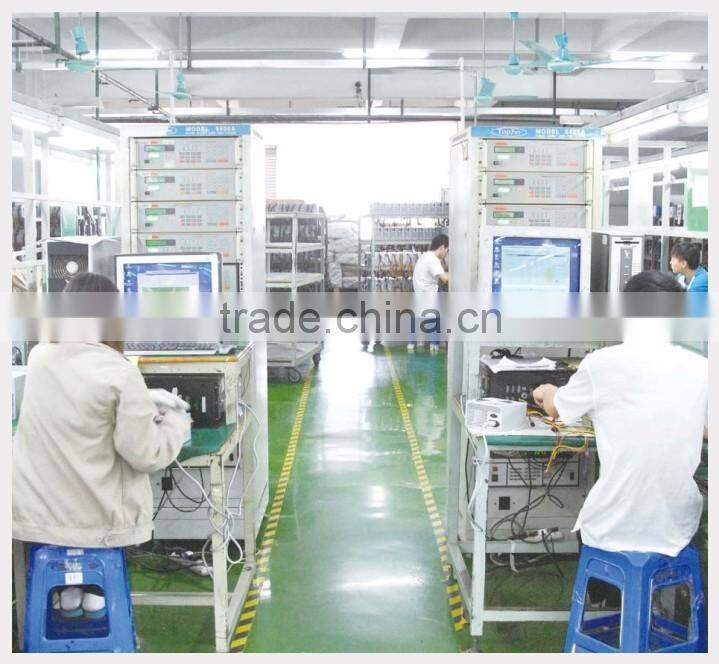

Our switching power supply workshop:
