Guangzhou Factory Sell Single Output ac dc 60W 3.3V Led Drivers

Guangzhou Factory Sell Single Output ac dc 60W 3.3V Led Drivers thumbnail-1
Guangzhou Factory Sell Single Output ac dc 60W 3.3V Led Drivers photo-1
US$ 6 - 9 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HPower
Model Number:
HB-60W-3.3V
Contact Supplier Request Quote Chat Now
Guangzhou Hedy Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HPower
Model Number HB-60W-3.3V
Output Power 51 - 100W
Output Type Single
Input Voltage 220V
Output Voltage 3.3V
Output Frequency N/A
Output Current 18A

Specifications

60W 3.3V led drivers
CE RoHS
Input voltage: 90~132VAC/180~264VAC
Constant voltage
High quality

60W 3.3V led drivers description:



Product name:  60W 3.3V led drivers

Ripple & Noise (max.): 100mVp-p

Over temperature protection: 100°C±5°

Business type: Manufacturer/Factory

Trade Mark:  HPower

Certificates: CE, RoHS, CCC

Warranty: 2 years

Guangzhou factory sell single output ac dc 60W 3.3V led driversGuangzhou factory sell single output ac dc 60W 3.3V led driversGuangzhou factory sell single output ac dc 60W 3.3V led drivers

60W 3.3V led drivers features:



v Universal AC input/Full range

v High efficiency up to 90%

v Protection: Short circuit/Overload /Over Voltage/Over Temperature

v Bult-in constant current limiting circuit

v 8 hrs and 100% full load bult-in test

v   Compliance to worldwide safety regulations for lighting




Product Description

60W 3.3V led drivers details:



60w Series, include output 3.3v, 5v, 12v, 15v, 24v and 36v.

Model   HB-60W-3.3V HB-60W-5V HB-60W-12V HB-60W-15V HB-60W-24V HB-60W-36V
Output DC Voltage 3.3V 5V 12V 15V 24V 36V
Rated Current 18A 12A 5A 4A 2.5A 1.5A
Current Range 0~18A 0~12A 0~5A 0~4A 0~2.5A 0~1.5A
Rated Power 59.4W 60W 60W 60W 60W 54W
Ripple & Noise (max.) 100mVp-p 100mVp-p 100mVp-p 150mVp-p 150mVp-p 150mVp-p
Voltage Adj. Range 3.14~3.63V 4.75~5.5V 11.4~13.2V 14.3~16.5V 22.8~26.4V 34.2~39.6V
Voltage Tolerance ±2.0% ±2.0% ±2.0% ±2.0% ±1.0% ±1.0%
Line Regulation ±1.0% ±1.0% ±1.0% ±1.0% ±0.5% ±0.5%
Load Regulation ±5.0% ±5.0% ±5.0% ±5.0% ±5.0% ±5.0%
Setup,Rise time 600ms,30ms at full load
Hold Up Time(Typ.) 13ms at full load
Input Voltage Range 90~132VAC/180~264VAC
Frequency Range 47~63HZ
Efficiency(Typ.) 83% 82% 85% 86% 88% 90%
AC Current (Typ.) 5A/115VAC        3A/230VAC
Inrush Current (Typ.) 20A/115VAC         40A/230VAC
Leakage Current <2mA / 240VAC
Protection Over Load 110~115% rated output power
Protection type: Shut down O/P,re-power on to recover
Over Voltage 3.63~4.46V 5.5~6.75V 13.2~16.2V 16.5~20.25V 26.4~32.4 39.6~48.6V
Protection type: Shut down O/P,re-power on to recover
Over Temperature 100°C±5°C(3.3V~12V); 105°C±5°C(15V~36V); TSW1 detect on main power transformer for others
Protection type: Shut down O/P,recovers automatically after temperature goes down
Environment Working Temperature  -20~+60°C
Working Humidity 20~90% RH  Non-condensing
Storage temp.& humidity -20~+85°C, 10~95%RH
Temp. coefficient ±0.03%/°C (0~50°C)
Vibration 10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes
Safety & EMC Safety Standards UL60950-1 approved
Withstand Voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
Others MTBF 10000hrs     MIL-HDBK-217F (25°C)
Dimension 112*80*34mm (L*W*H)
Packing 0.2Kg; 95pcs/21.5Kg/1.85CUFT
Note 1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 10uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages.

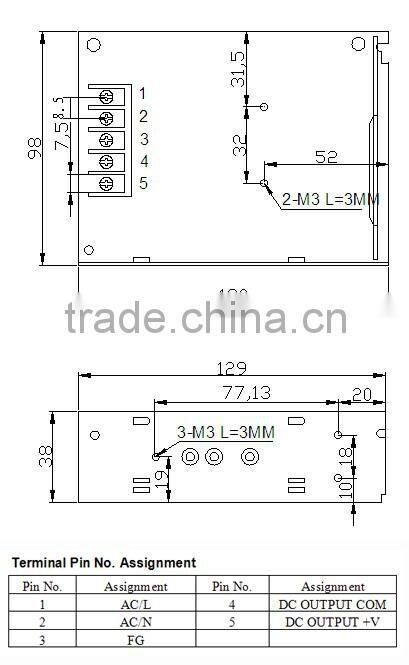

60W 3.3V led drivers structural drawing(Unit::mm):

Guangzhou factory sell single output ac dc 60W 3.3V led drivers

Guangzhou factory sell single output ac dc 60W 3.3V led drivers

60W 3.3V led drivers derating curve:


Guangzhou factory sell single output ac dc 60W 3.3V led driversGuangzhou factory sell single output ac dc 60W 3.3V led drivers





60W 3.3V 18A single output led drivers applications:



1. LED display, led strip, nixie tube, street light, lamp;

2. Electrical equipment, Instrumentation ;

3. LCD, LED, CCTV camera;

4. Digital and electronic products;

5. Building lighting decoration;

6. Communications and security products.



Guangzhou factory sell single output ac dc 60W 3.3V led drivers




Company Information

Our showroom:

Guangzhou factory sell single output ac dc 60W 3.3V led drivers
Guangzhou factory sell single output ac dc 60W 3.3V led drivers


Guangzhou factory sell single output ac dc 60W 3.3V led drivers



Our workshop:

Guangzhou factory sell single output ac dc 60W 3.3V led drivers
Guangzhou factory sell single output ac dc 60W 3.3V led drivers


Guangzhou factory sell single output ac dc 60W 3.3V led drivers


Packaging & Shipping

60W 3.3V led drivers packing and delivery



Lead time: 7-15 days

Delivery method:

ü Express service: FedEx/DHL/UPS/TNT/EMS

ü Air transportation: factory to airport

ü Ocean shipping: factory to port

Guangzhou factory sell single output ac dc 60W 3.3V led drivers
